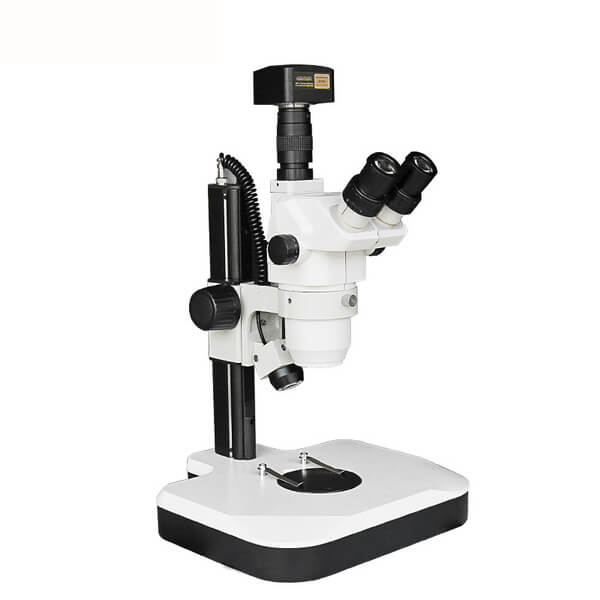

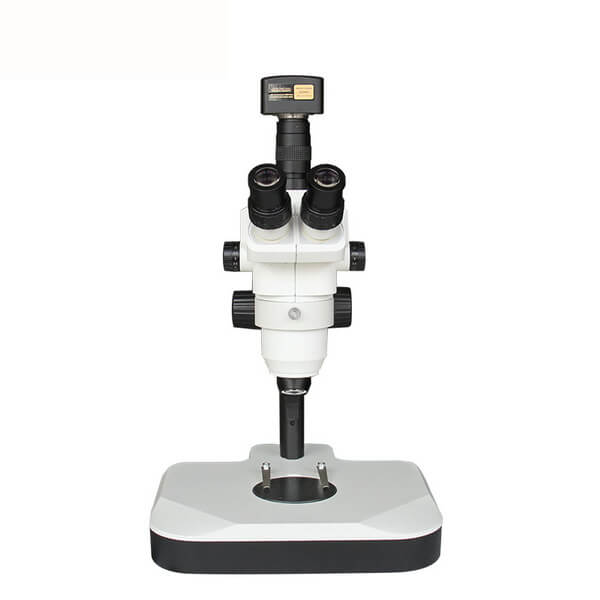

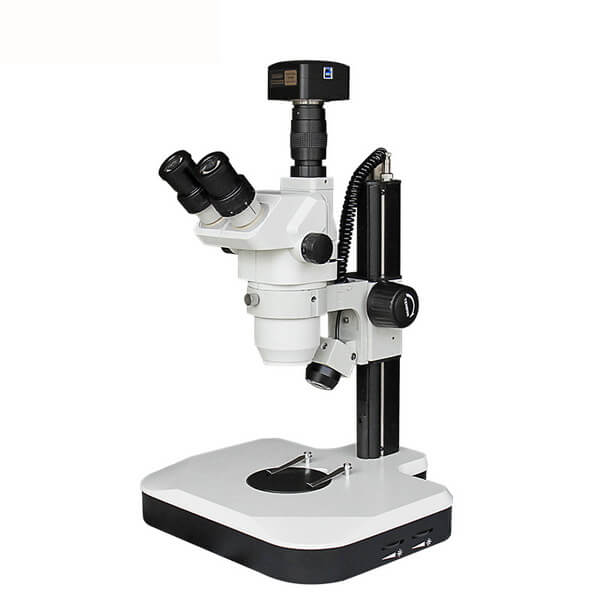

YTL-8064 Series Continuous Stereo Microscope

Model: YTL-8064/YTL-8064T (Trinocular)

Accessories: Standard/Optional

     YTL-8064 Series stereo microscope provide reliable optical system and excellent and durable operating mechanism. Complete accessories, flexible and diversified combination configuration. To meet the requirements of high precision in modern biology, medicine, scientific research, modern electronic industry online detection and other scientific and technological industries.


1.      High-quality optical components coated with multiple layers, forged high-quality and reliable optical imaging

2.      Form a positive image with a flat image surface and good contrast in a large field of view, especially in the peripheral field of view, the image quality is brighter and clearer

3.      Use continuous zoom objective 0.8×6.4×81

4.      Effective standard working distance reached 110mm, creating enough space for use.

5.      High eyepoint eyepiece, ergonomic structural design, best eye point height, no fatigue after long time use.

6.      With a variety of accessories, expand the application field.



Model

YTL-8064

YTL-8064T Trinocualr

Total magnification

8X-64Xstandard),Total magnification extend 320X

Zoom ratio

8:1

SWH

SWH10X/Φ22mm

Objective

0.8X6.4X continuous zoom objective

Working distance

110mm

Binocular/TrinocularT

Eyetube inclined 45°main body 360°rotated

Diopter adjustment range

±6diopter

Interpupillary distance adjustment range

52mm76mm

Focus adjustment holder hold

φ76mm

Light source

Up and down LED lamp

Center displacement

Less than or equal to 0.05mm

Base size

318mm×308mm×16mm

High of post

326mm

Lifting rail stroke

160mm

Post center dimension

Φ25mm
