Model: YST-7024
Accessories: Standard/Optional
Zoom ratio: 1X/2X, 1X/3X, 2X/4X
Horizontal shift mechanism makes the operation more convenient and the ring light won’t be affected during the shifting; WF10X/23mm eyepieces make the observation more comfortable and efficient; 110mm standard working distance can meet the vast majority of applications between observation and operation requirements; 45°inclined viewing head with both right and left eyepiece tubes diopter adjustable makes the operation more convenient and comfortable with tireless after long time using.
Eyepiece | Objective 1X | Objective 2X | Objective 3X | Objective 4X | ||||
Working distance 110mm | ||||||||
Mag. | Field of view | Mag. | Field of view | Mag. | Field of view | Mag. | Field of view | |
10X/23mm | 10X | 20.0mm | 20X | 10.0mm | 30X | 7.5mm | 40X | 5.0mm |
15X/16mm | 15X | 16.0mm | 30X | 8.0mm | 45X | 5.0mm | 60X | 3.3mm |
20X/12mm | 20X | 12.0mm | 40X | 6.0mm | 60X | 3.3mm | 80X | 2.5mm |
25X/9mm | 25X | 9.0mm | 50X | 4.5mm | 75X | 3.0mm | 100X | 2.3mm |
30X/8mm | 30X | 8.0mm | 60X | 4.0mm | 90X | 2.7mm | 120X | 2.0mm |
Magnification | Standard magnification 20X/40X,Optional other magnification eyepiece and objective lens，total magnification extend to 10X.120X fixed zoom | |||||||
Eyepiece | Standard setting:10X/23mm，Large field of view, wide angle, high eye point, providing convenience for observers wearing glasses | |||||||
Optional eyepiece | 10X/23mm，15X/16mm，20X/12mm，25X/9mm，30X/8mm | |||||||
Observation head | 45° Inclined，360° rotated,Interpupillary distance adjustment range 54-75mm；Bilateral diopter adjustment ±5 | |||||||
Compensation free binocular head | ||||||||
Objective | Shifting zoom objective lens combination 2X/4X、1X/2X、1X/3X | |||||||
Focus adjustment holder | A1 Adjustable tightness of handwheel of focus bracket、Lifting range 50mm | |||||||

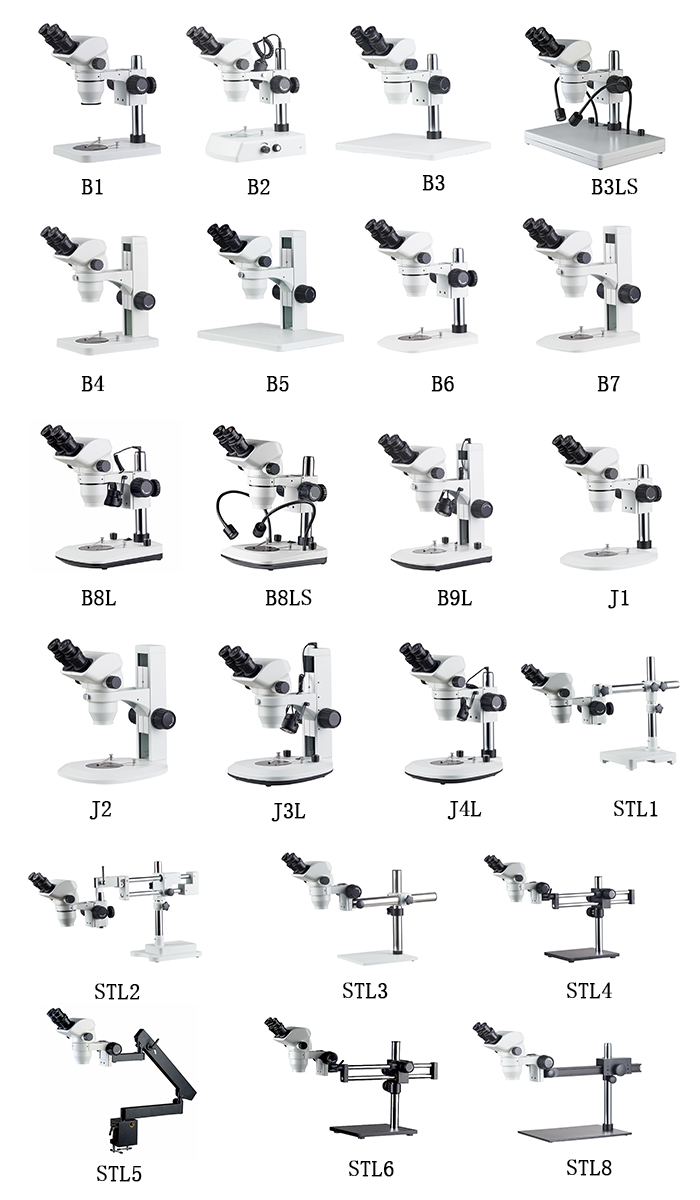

Base | Optional for other bases, more details please contact us | |||||||

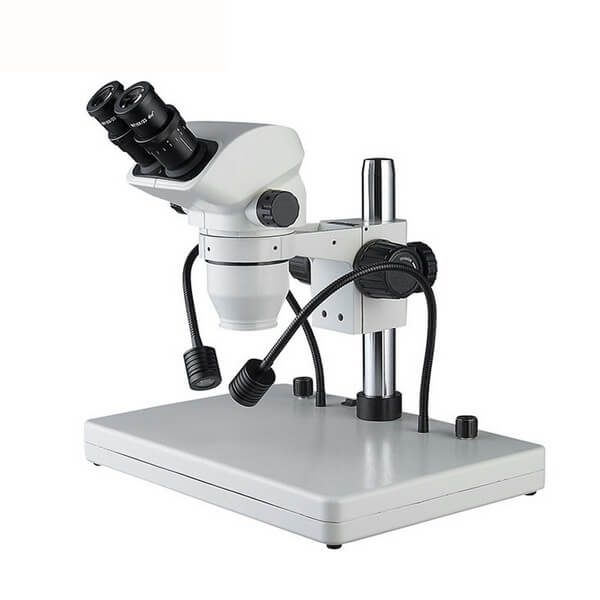

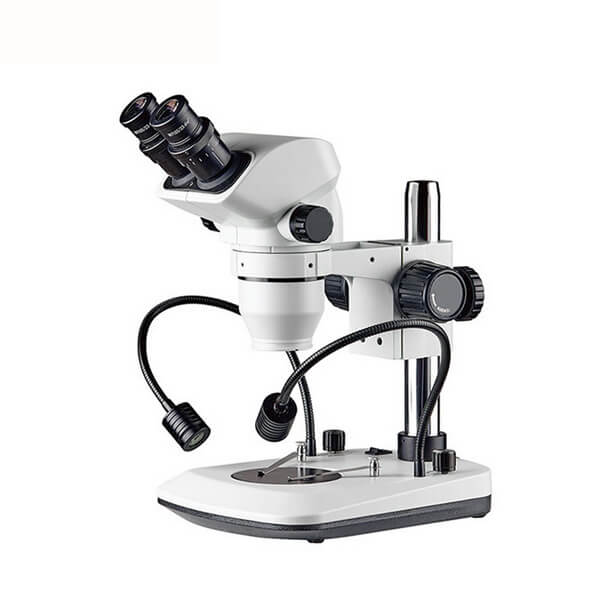

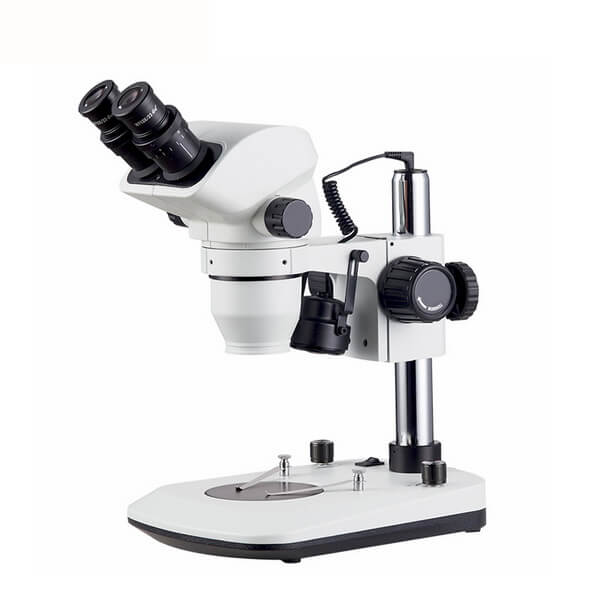

Light source | Optional various fluorescent lamp、LED ring light | |||||||
