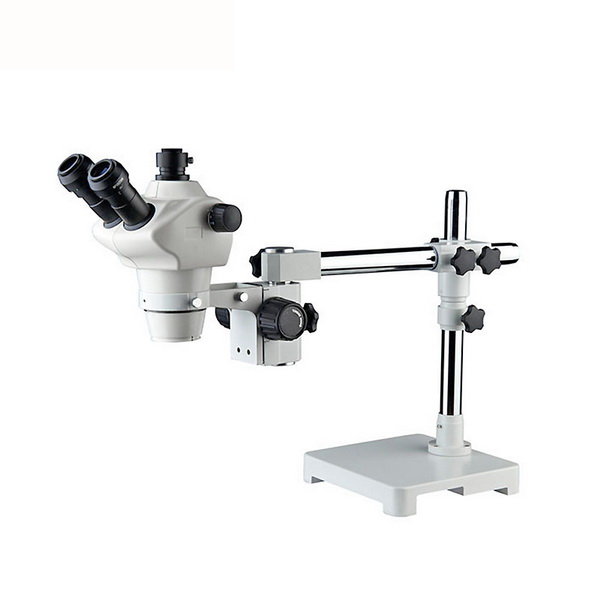

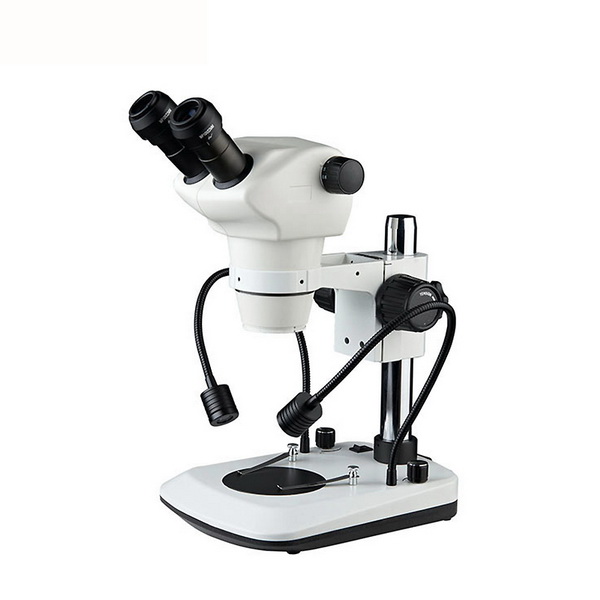

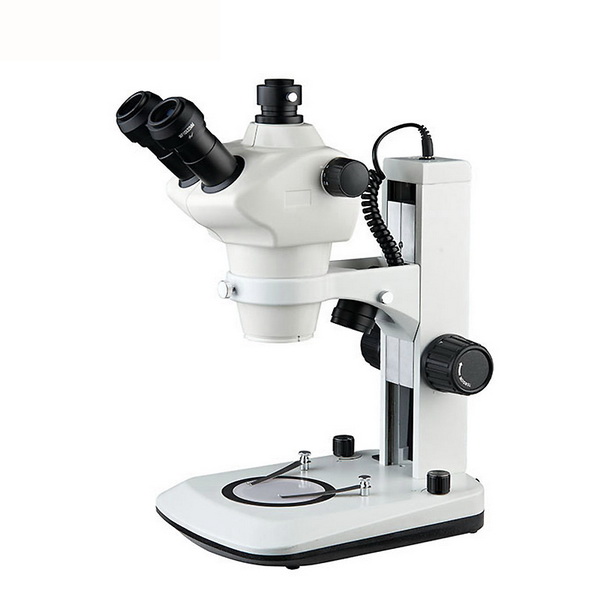

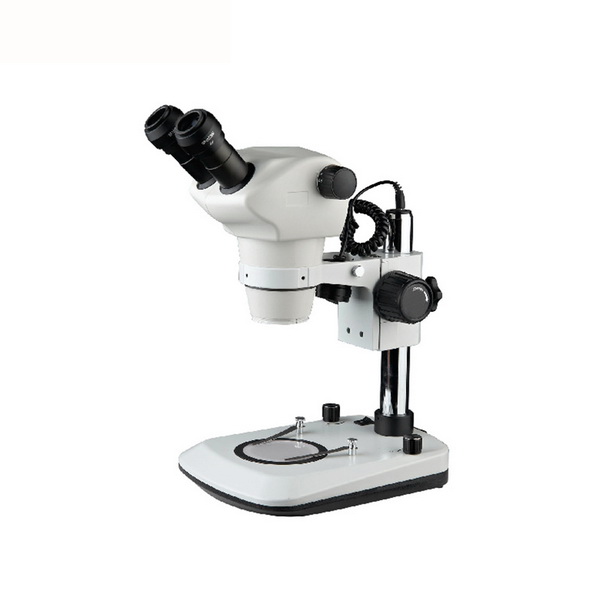

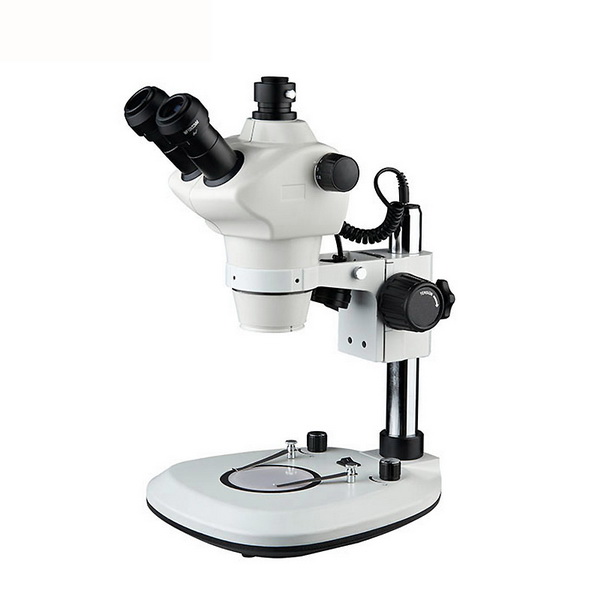

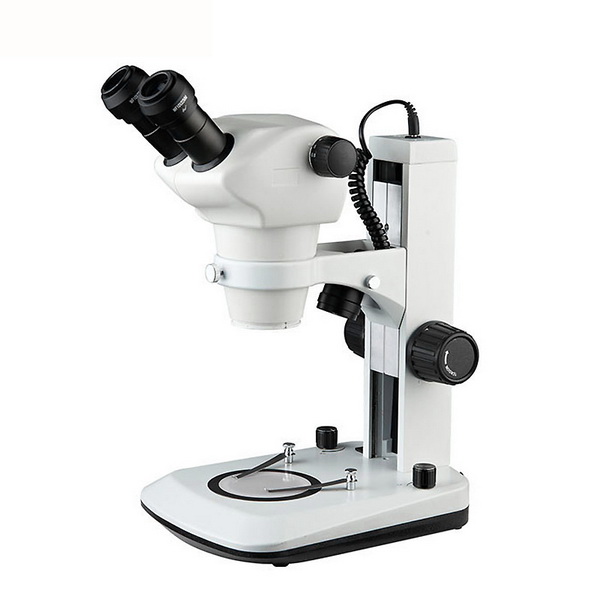

YT8050 Series Stereo Microscope

Model: YT8050/YT8050T (Trinocular)

Accessories: Standard/Optional

Zoom ratio: 1:6.3


       YT8050 Series zoom stereo microscope included YT8050 (binocular) and YT8050T (Trinocular) two types. New optical design, provide high-quality optical system and durable and reliable operating mechanism. To meet the requirements of high precision in modern biomedicine, scientific research, online inspection of modern electronics industry and other fields of science and technology industry.


1.       Non-flash in focusing course, large depth of fields

2.       It is characterized by brand-new optical design, the best reproduction and true color image

3.       Total magnification extend to: 4X~300X

4.       Standard working distance 115mm, maximum extend to 211mm

5.       Diopter adjustment range ±5 diopter

6.       It has many optional stands and attachments



Model

YT8050

YT8050T

Eyepiece

Standard

Auxiliary objective 0.5X

Auxiliary objective 2X

●

●

Working distance 115mm

Working distance 211mm

Working distance 43.5mm

Mag.

Field of view

Mag.

Field of view

Mag.

Field of view

●

●

10X/22mm

8X

27.5

4X

55.0

16X

13.8

50X

4.4

25X

8.8

100X

2.2

15X/16mm

12X

20.0

6X

40.0

24X

10.0

75X

3.2

37.5X

6.4

150X

1.6

20X/12mm

16X

15.6

8X

31.2

32X

7.8

100X

2.5

50X

5.0

200X

1.3

25X/9mm

20X

11.3

10X

22.5

40X

5.6

125X

1.8

62.5X

3.6

250X

0.9

30X/8mm

24X

10.0

12X

20.0

48X

5.0

150X

1.6

75X

3.2

300X

0.8

Magnification

Standard:8X-50X,Option eyepiece and auxiliary objective extend to 4X-300X,continuous zoom

●

●

Eyepiece

Standard setting:10X/22mm,wide-field flat field eyepiece,diopter adjustment range

●

●

Optional eyepiece

10X/22mm,15X/16mm,20X/12mm,25X/9mm,30X/8mm



Obseration head

45°inclined、360° ratated,interpupillary distance adjustment range 52-75mm;bilateral diopter adjustment range ±5

●

●

Compensation free trinocular head,split ratio 50%/50%

◎

●

Compensation free Binocular head

●

◎

Objective

0.8X-5.0X continuous zoom、zoom ratio 6.3:1 to make sure the image is in focus

●

●

Auxiliary objective

Optional 0.5X,2.0X

●

●

Focus adjustment holder

A1 focus adjustment holder,The handwheel is adjustable,Lifting range 50mm

●

●

Base

Optional for the other base

●

●

Illuminators

Up and down LEDlamp,Independent switch brightness adjustable

●

●

Trinocular adapter

With CTV,Can be connected to ordinary cameras,digital camera,industrial camera、CCD

◎

●
