YC-TA Series Parallel Optics Zoom Stereo Microscope

Model

TA620

TA820

TA1020

Accessories

           Standard / Optional

Zoom range

1X~6X

0.8X~6.5X

0.8X~8X

Zoom ratio

1:6

1:8

1:10

Eye tube

Universal or variable binocular head optional

Trinocular   setting

Optional splitter and C mount

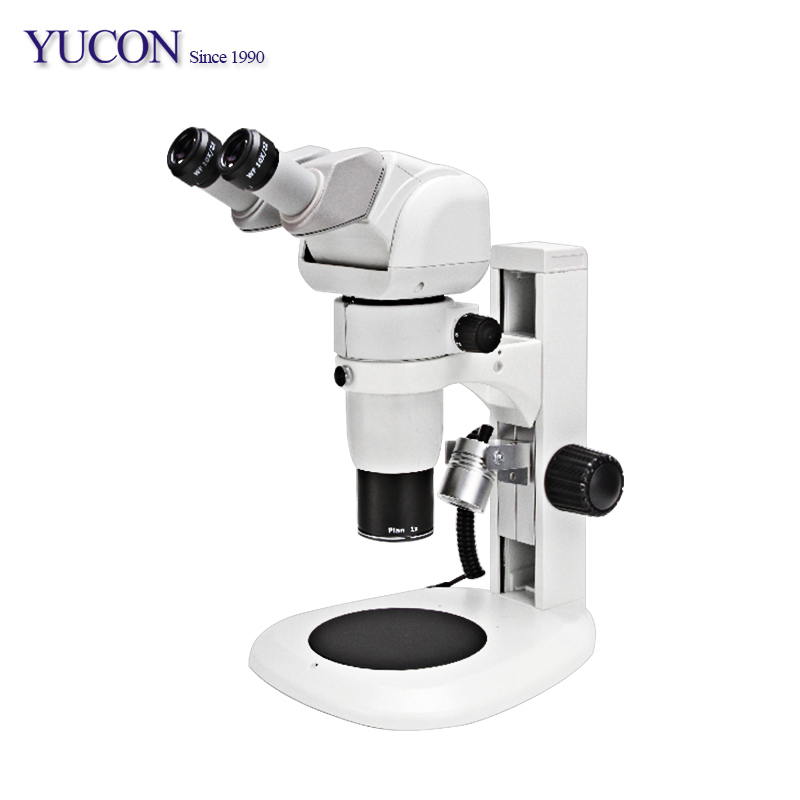

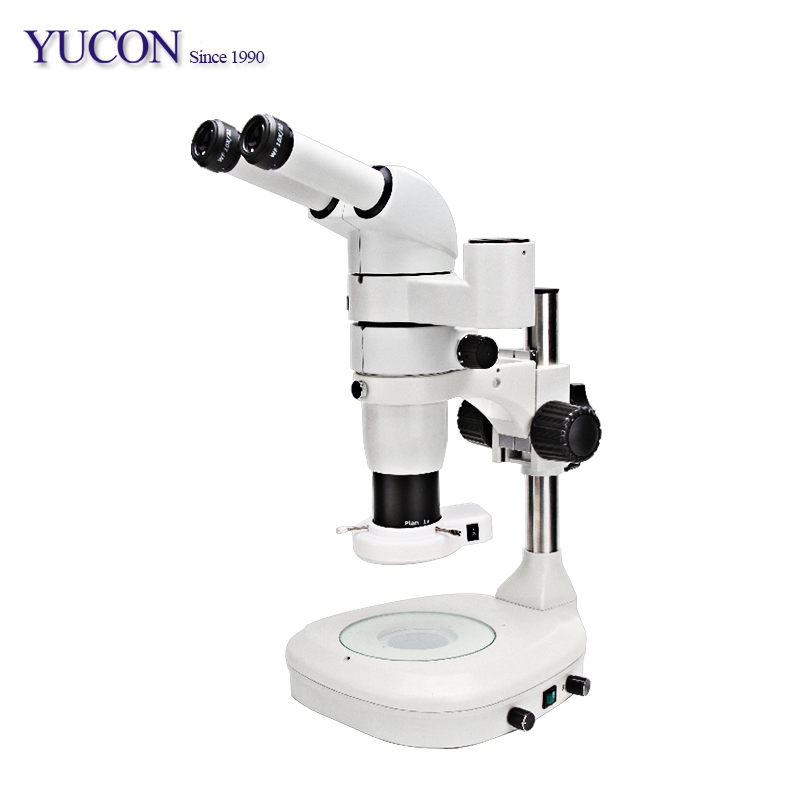

YC-TA series professional stereo microscope adopts parallel optical system. There is no flash during focusing, the magnification is from high to low, the depth of field is large, the working distance is long, and various accessories can be attached. It can meet the high-end needs of inspection and analysis in the fields of modern biology and medicine, public security inspection marks, and laboratories. Covering R&D, Industry, Environment, Agriculture, Police, Microelectronics, Semiconductor and ATC.

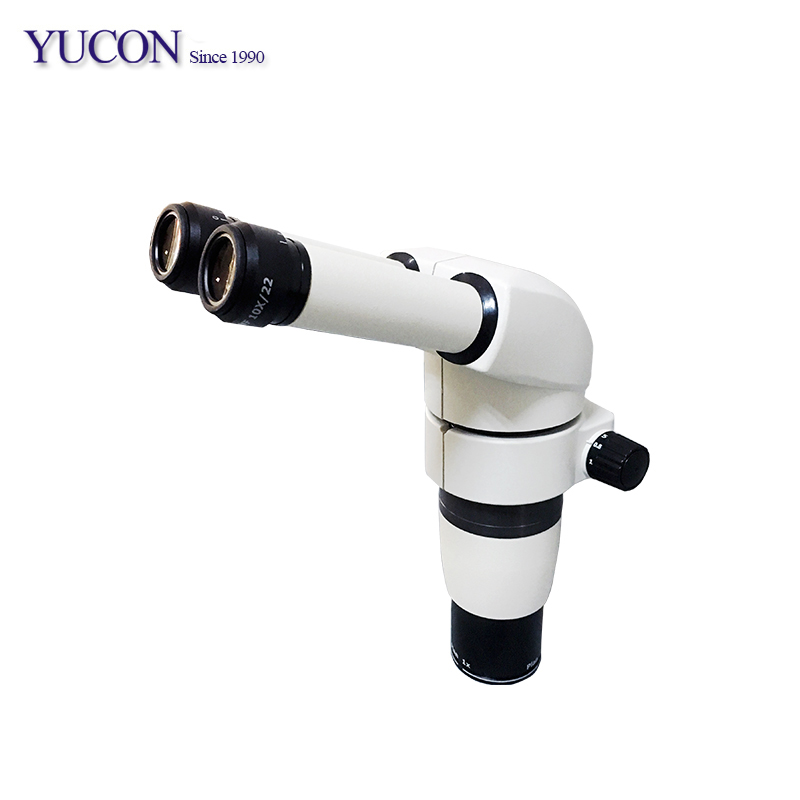

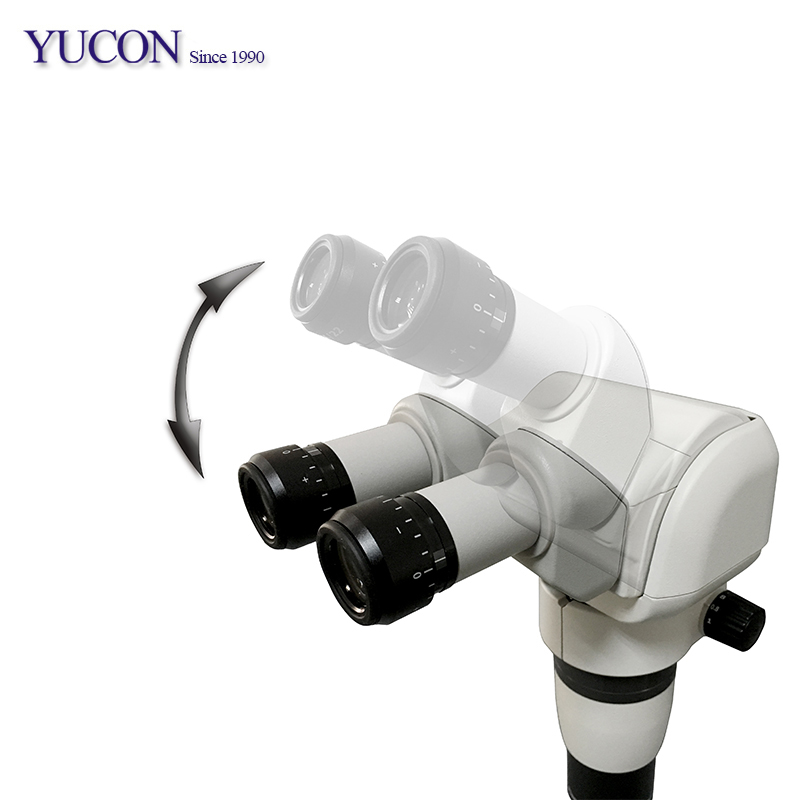

Option for variable binocular head, stepless adjustment of depression angle in the range of 0-30 °, eye point can be raised and lowered by 150mm

●Excellent parallel light path design, large depth of field, working distance 78mm

●Interpupillary distance48-75

●There are three zoom ratio models to choose from 1:6 1:81:10

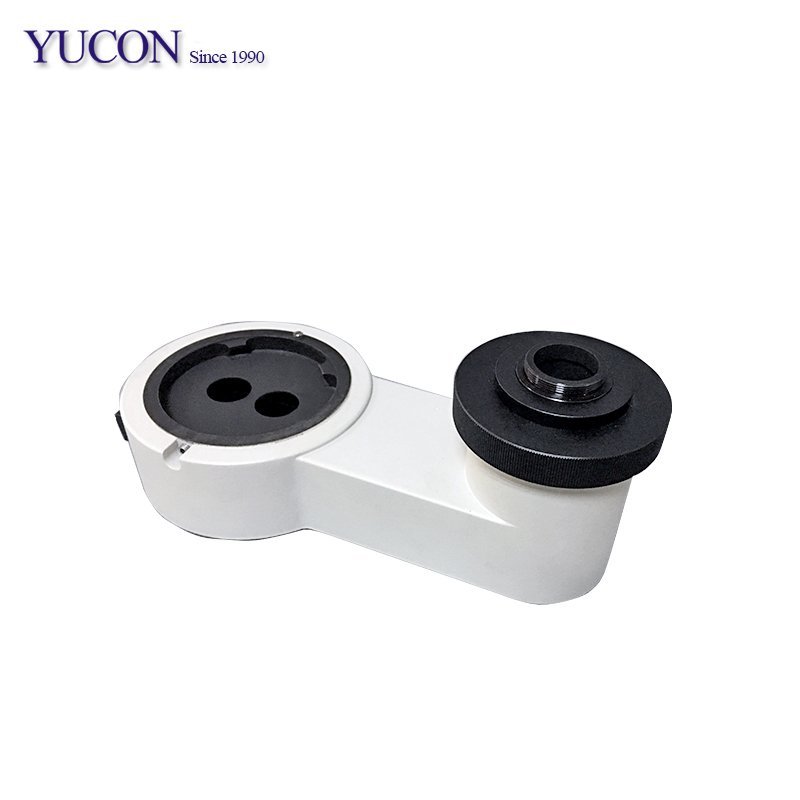

●Be able to install beam splitter and C mount to make binocular into trinocular microscope

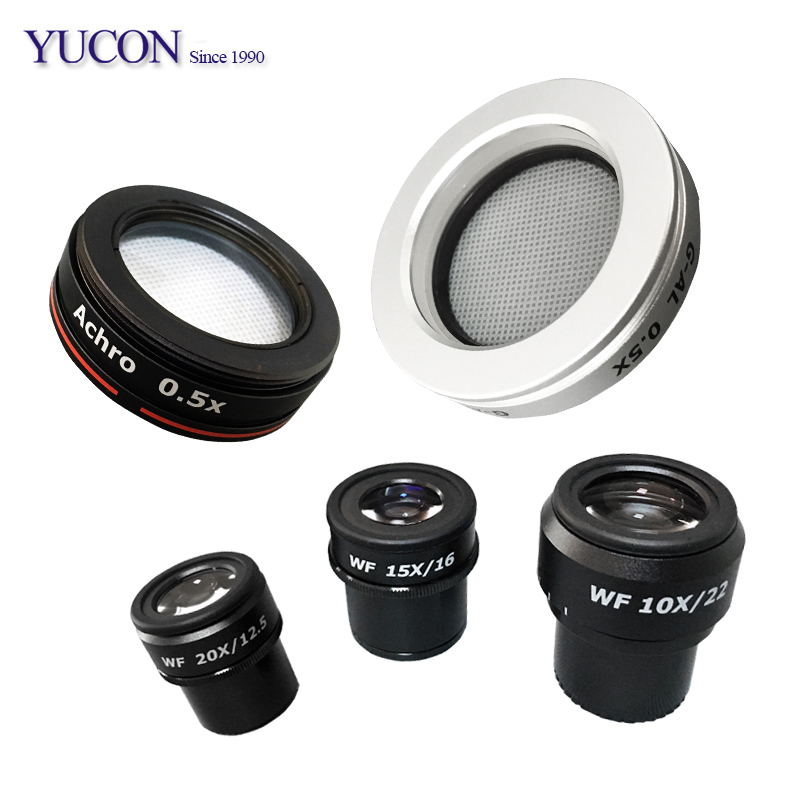

ZOOM-TA Series total   magnification and field of view

Model

Objective

Eyepiece

10X field of view 22

15X field of view 16

20X field of view 12.5

Total Mag.

Field Diamm

Total Mag.

Field Dia mm

Total Mag.

Field Dia mm

YC-TA1020

0.5X

4-40X

55.0-5.5

6-60X

40.0-4.0

8-80X

31.3-3.1

1X

8-80X

27.5-2.8

12-120X

20.0-2.0

16-160X

15.6-1.6

2X

16-160X

13.6-1.2

24-240X

9.8-0.8

32-320X

7.5-0.75

YC-TA820

0.5X

4-32.5X

55-6.8

6-48.8X

40.0-4.9

8-65X

31.3-3.8

1X

8-65X

27.5-3.4

12-97.5X

20-2.5

16-130X

15.6-1.9

YC-TA620

0.5X

5-30X

44-7.3

7.5-45X

32-5.3

10-60X

25-4.2

1X

10-60X

22-3.7

15-90X

16-2.7

20-120X

12.5-2.1
