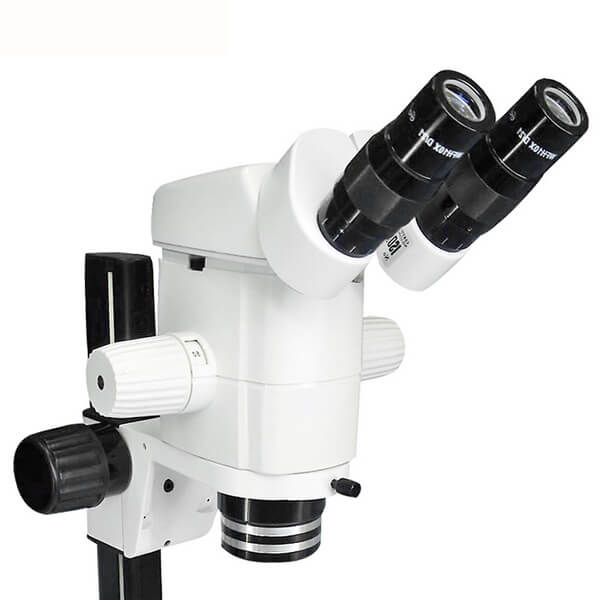

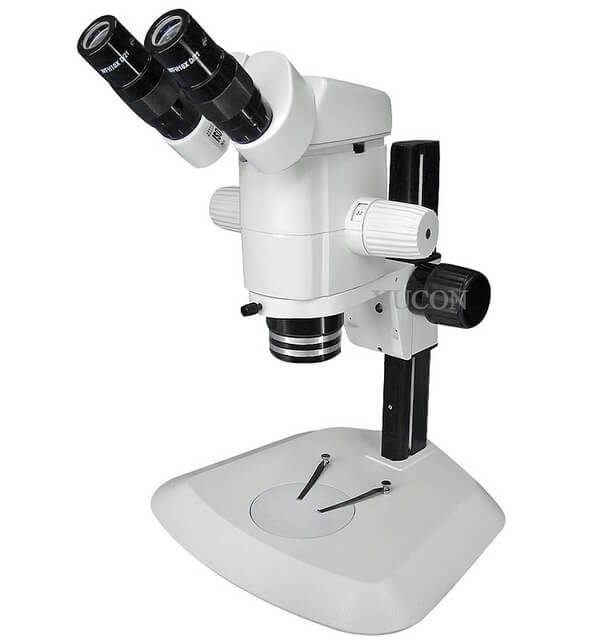

YCM series continuous zoom stereo microscope adopts parallel light path and zoom ratio of 8:1. The entire continuous zoom system from low magnification to high magnification can provide high-definition imaging and distortion-free microscopic images. The microscope system adopts a unique modular design, which can assemble a variety of accessories, which will provide you with a clear and distortion-free microscope.

1. Two parallel beam paths and high quality optic system offer you high resolution and distortion-free contrast image throughout the entire zoom range.
2. Zoom ratio is 8:1.
3. YCM also use modular design.

4. Full focus course while magnification from low to high

5. Excellence parallel optic system, the microscope system adopts modular design

6. Total magnification extend to: 1.9X-400X

7. Large depth of field, PHW FIELD eyepieces

8. Optional 40X eyepiece and 0.32X auxiliary lens

9. Working distance 80mm, extend to 296mm

10. Diopter adjustment range ±5, can meet the needs of different users

11.YCM30 can connect CCD (CMOS) camera, digital camera, film camera

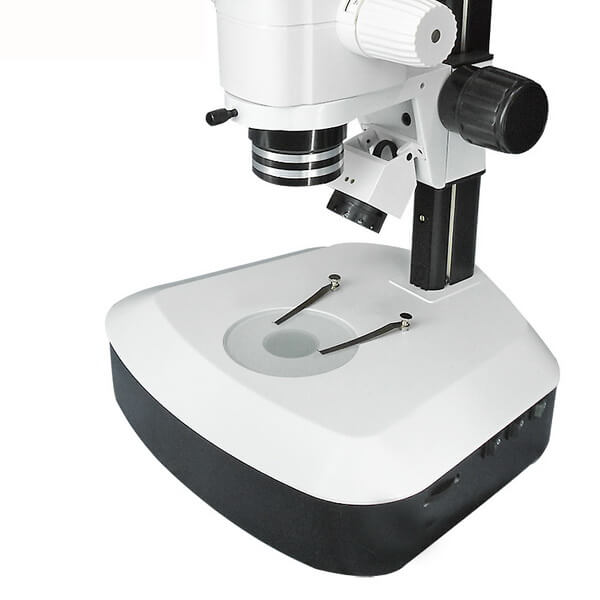

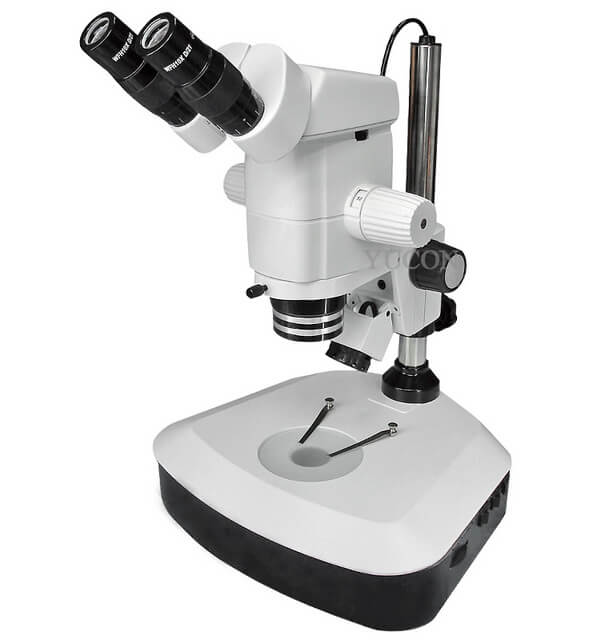

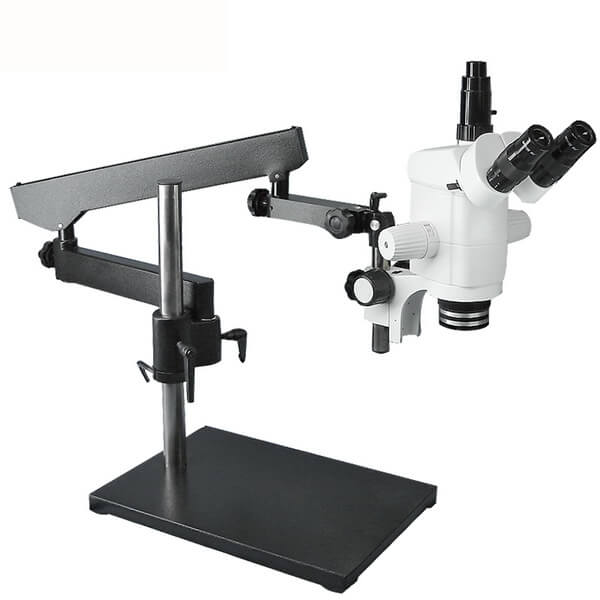

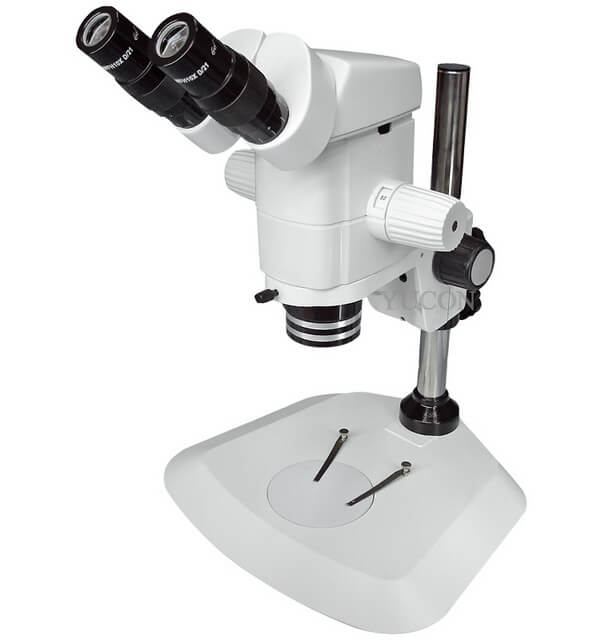

‍12. Optional for various base and universal stand, LED ring light、ring fluorescent lamp、optic fiber、auxiliary objective lens etc
