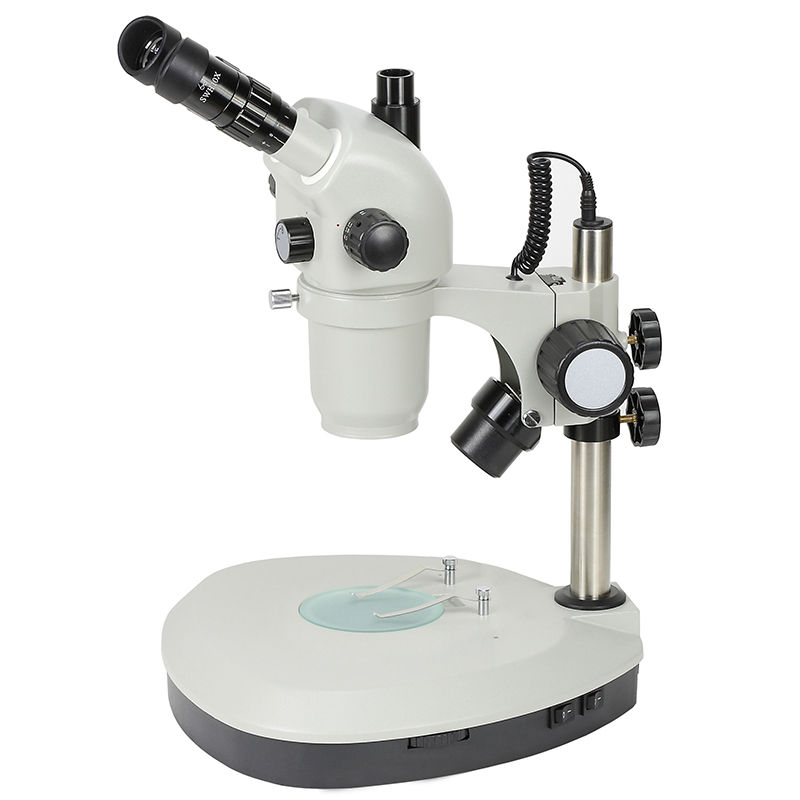

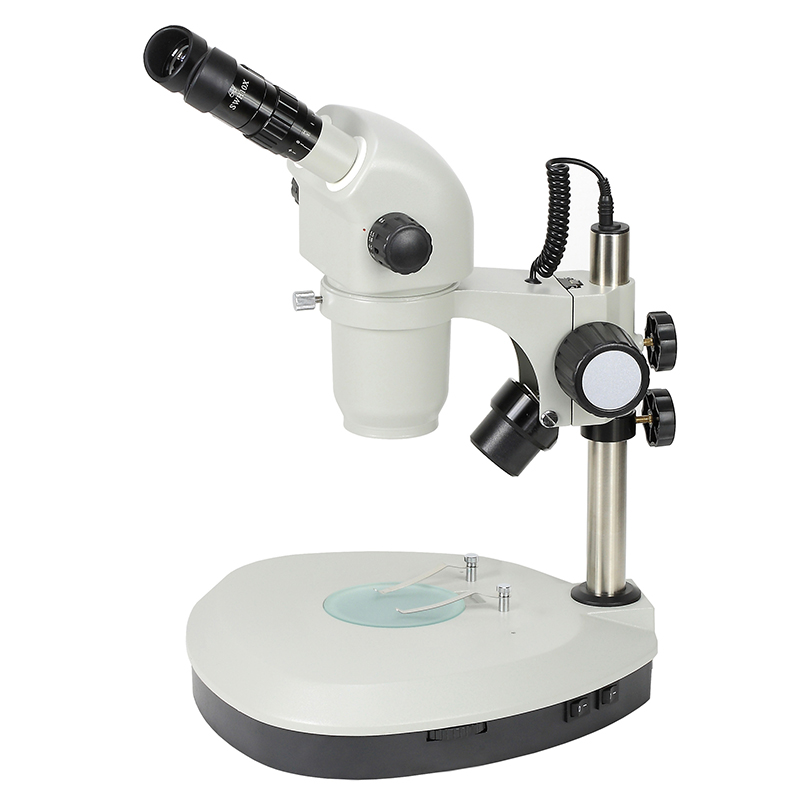

Model: ZS0655 / ZS0655T(Trinocular)
Accesseries: Standard/Optional
ZS0655 Series Zoom Stereo Microscope included ZS0655 (Binocular) ZS0655T (Trinocular) two types. New Greenough optical system design, reproduce best resolution and true color images. Big zoom ratio and magnification range can be expanded up to 2.22X ~ 330X. Front video shooting switch knob, convenience for use. A variety of optional bases and a wide range of accessories, Widely used in schools, bioengineering and scientific research, industrial assembly, test and measurement, and quality control.
l With maximum zoom ratio 9.2:1, non-flash in focus course while from low to high magnification
l Can be extended to maximum magnification: 2.22X-330X
l Large depth of field, with high eye point and super wide field eyepiece
l Maximum working distance extended to 275mm
l The range of adjusting the diopter is ±6°, can meet the needs of different users

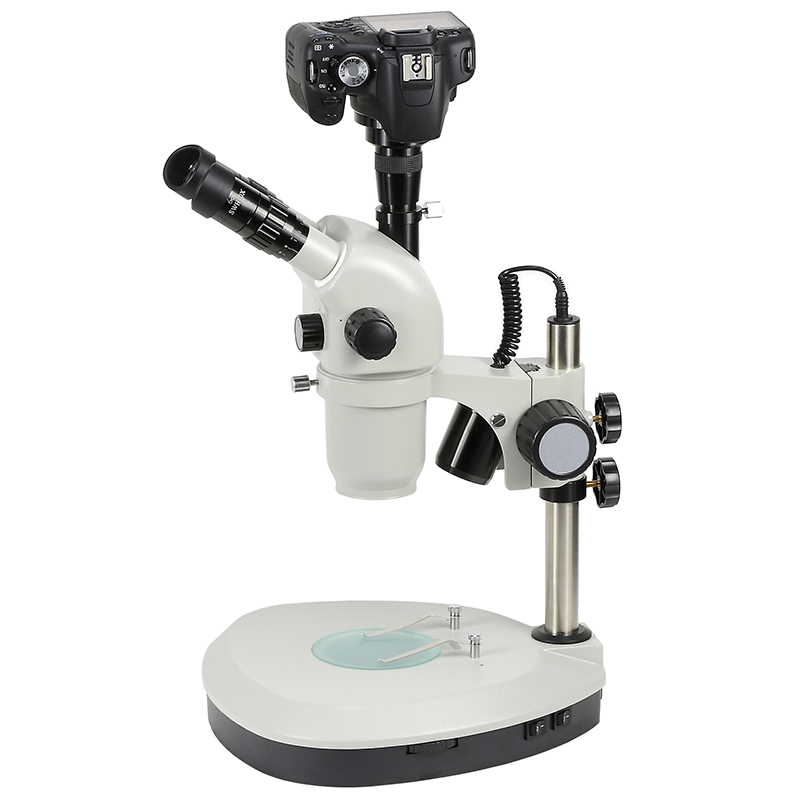

l ZS0655T series can be connected with CCD (CMOS) camera, digital camera, film camera
l Front video shooting switch knob, convenience for use.
l Can be set with various bases and universal stands, LED ring light、Ring fluorescent lamp, optical fiber, auxiliary lens etc, variety of accessories
Technical specifications：
Total magnification | 6X～55X（standard），extend to total magnification 330X |
Zoom ratio | 9.2:1 |
PHW field eyepieces | SWH10X/Φ23mm |
Objective | 0.6X～5.5X continuous zoom magnification |
Working distance | 108mm |
Binocular/Trinocular | Inclined 45°，main body can be rotated 360° |
Diopter adjustment range | ±6 diopter |
Interpupillary distance adjustment range | 52mm～76mm |
The range of adjusting the focus | 80mm（Round post holder 50mm） |
The diameter of the centre working stage | Φ95mm |
Support and main body matched dimension | Φ76mm |
Post center to support center dimension | 140mm |
Round post diameter | Φ25mm |
Illuminators | Can be equipped LED upper light source（3W，adjust），LED lower light source（3W，adjust） |
Can be equipped 5W fluorescent Lighting，6V、10W reflected illumination halogen lamp |
Technical parameters
Eyepiece | Item | Main body | Auxiliary objective | ||||
0.37X | 0.5X | 0.7X | 1.5X | 2X | |||
10X | Total Mag. | 6X~55X | 2.22X~20.4X | 3X~27.5X | 4.2X~38.5X | 9X~82.5X | 12X~110X |
Field Dia | Φ38.3~Φ4.2 | Φ99.1~Φ10.8 | Φ76.7~Φ8.4 | Φ54.8~Φ6 | Φ25.6~Φ2.8 | Φ19.2~Φ2.1 | |
15X | Total Mag | 9X~82.5X | 3.33X~30.5X | 4.5X~41.25X | 6.3X~57.75X | 13.5X~123.75X | 18X~165X |
Field Dia | Φ28.3~Φ3.1 | Φ76.6~Φ8.35 | Φ56.7~Φ6.2 | Φ40.5~Φ4.4 | Φ18.9~Φ2.1 | Φ14.2~Φ1.5 | |
20X | Total Mag | 12X~110X | 4.44X~40.7X | 6X~55X | 8.4X~77X | 18X~165X | 24X~220X |
Field Dia | Φ23.3~Φ2.5 | Φ63.1~Φ6.9 | Φ46.7~Φ5.1 | Φ33.3~Φ3.6 | Φ15.6~Φ1.7 | Φ11.7~Φ1.3 | |
30X | Total Mag | 18X~165X | 6.66X~61.1X | 9X~82.5X | 12.6X~115.5X | 27X~247.5X | 36X~330X |
Field Dia | Φ15~Φ1.6 | Φ40.5~Φ4.4 | Φ30~Φ3.3 | Φ21.4~Φ2.3 | Φ10~Φ1.1 | Φ7.5~Φ0.8 | |
Working distance | 108 | 275 | 195 | 145 | 50 | 35 | |
Notes:
1.Lease use lengthen round post when using 0.5X objective,cannot use square column base.
2.When using objectives with magnifications below 0.5X,cannot use square column base.
Optional attachments
l Stands: SD1~SD15
l Universal stands: U1，U2，U3, U1c, U2c, U3c
l Eyepiece: SWH10X, WF15X, WF20X, WF30X
l Division eyepieces: SWHD10X、WFD15X、WFD20X
l Supplemental lens: 0.37X 、0.5X、0.7X、1.5X、2X
l Auxiliary illuminatiors: ML01、MLR60、LGY-150R
l Photo adapter: PT01
l Digital adapter: DT01
l 0.5XCCD adapter: C0.5
l 1.0XCCD adapter: C1.0
l 1X micrometer CCD adapter: CDM1.0
l Dark field attachment and Gem clamp: DC01、CJ01
l Mechanical stages: S7650、S210210
