Model: ZM0745/ZM0745T
Accessories: Standard / Optional

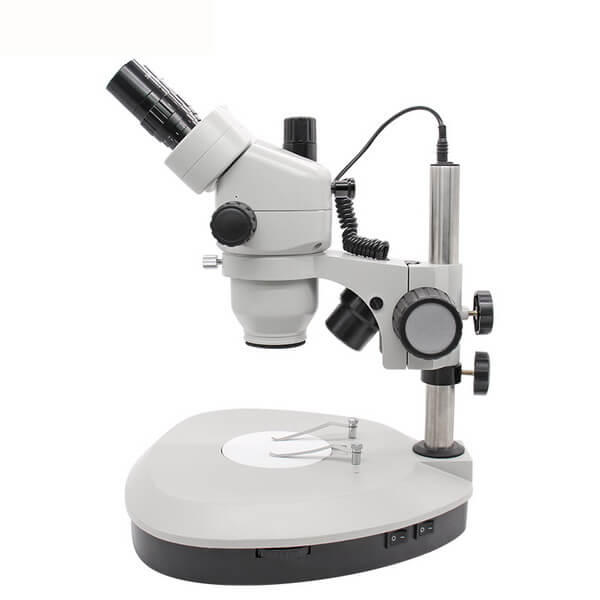

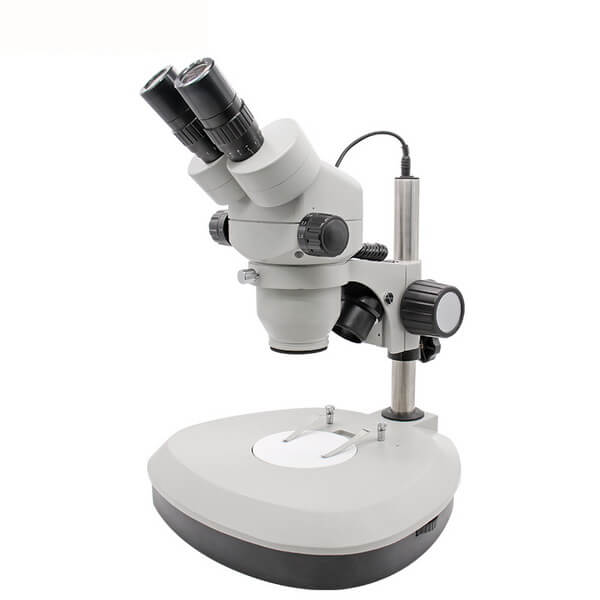

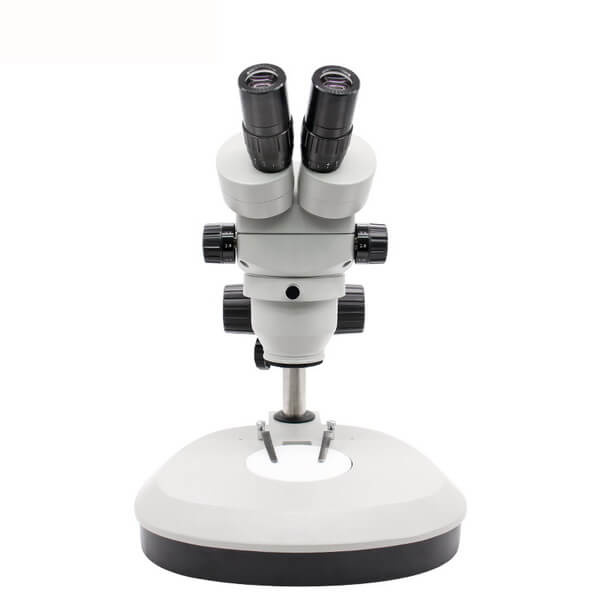

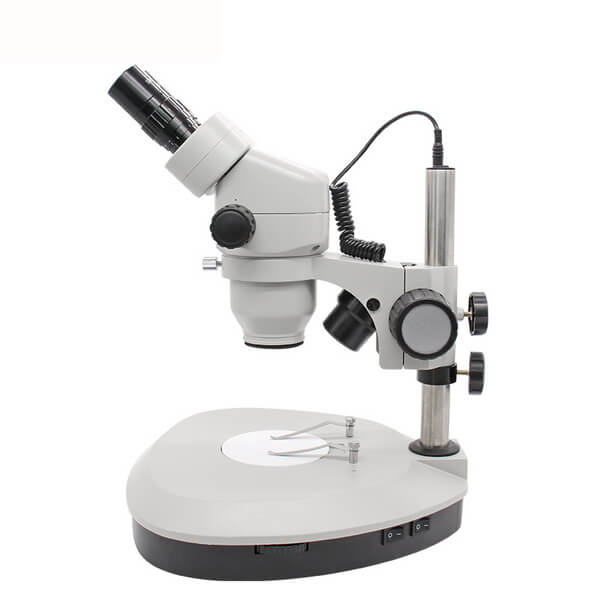

ZM0745 zoom stereo microscope adopts streamline integrated mechanical design, Easy operation, long working distance,clear resolved image, enclosure integrated. The microscope is used extensively world medical research and health care, biology and botany research, and agricuture, as well as in electroniccomponent manufacturing. Specially suited for LED, PCB inspecition, pressing plating and electronic component inspection.
1. Clear imaging, parfocal
2. Excellent optical design, good resolution and true color image
3. Scalable total magnification: 3.5X~270X
4. Cost effective
5. Maximum working distance extend to 165mm
6. Double LED light, independent switch brightness adjustable
7. More than a dozen bases and accessories available option
Modle | ZM0745 | ZM0745XT | ||||||||
Eyepiece | Standard | Auxiliary lens 0.5X | Auxiliary lens 1.5X | Auxiliary lens 2X | ● | ● | ||||
Working distance 100mm | Working distance 165mm | Working distance 45mm | Working distance 30mm | |||||||
Mag. | Field range | Mag. | Field range | Mag. | Field range | Mag. | Field range | ● | ● | |
10X/20mm | 7X | 28.6mm | 3.5X | 57.1mm | 10.5X | 19mm | 14X | 14.3mm | ||
45X | 4.4mm | 22.5X | 8.9mm | 67.5X | 3mm | 90X | 2.2mm | |||
15X/15mm | 10.5X | 21.1mm | 5.25X | 42.8mm | 15.75X | 14.3mm | 21X | 10.7mm | ||
67.5X | 3.3mm | 33.75X | 6.7mm | 101.25X | 2.2mm | 135X | 1.7mm | |||
20X/10mm | 14X | 14.3mm | 7X | 28.6mm | 21X | 9.5mm | 28X | 7.1mm | ||
90X | 2.2mm | 45X | 4.4mm | 135X | 1.5mm | 180X | 1.1mm | |||
25X/9mm | 17.5X | 12.9mm | 8.85X | 25.4mm | 26.2X | 8.6mm | 35X | 6.4mm | ||
112.5X | 2.0mm | 56.3X | 4.0mm | 168.8X | 1.3mm | 225X | 1.0mm | |||
30X/8mm | 21X | 11.4mm | 10.5X | 22.9mm | 31.5X | 7.6mm | 42X | 5.7mm | ||
135X | 1.8mm | 67.5X | 3.6mm | 202.5X | 1.2mm | 270X | 0.9mm | |||
Maganification | Standard:7X-45X,Optional eyepieces and auxiliary objectives can be expanded to 3.5X-270X,Zoom | ● | ● | |||||||
Eyepiece | Standard:10X/20mm,Wide field、PHW field eyepiece、Convenience for eyewear observers | ● | ● | |||||||
Optional eyepiece | 10X/20mm,15X/15mm,20X/10mm,25X/9mm,30X/8mm | ● | ● | |||||||
Head | 45°Inclined、360°Rotated,Interpupillary distance 54-76mm;Bilateral dioptric adjustment (±5) | ● | ● | |||||||
Binocular head | ● | ◎ | ||||||||

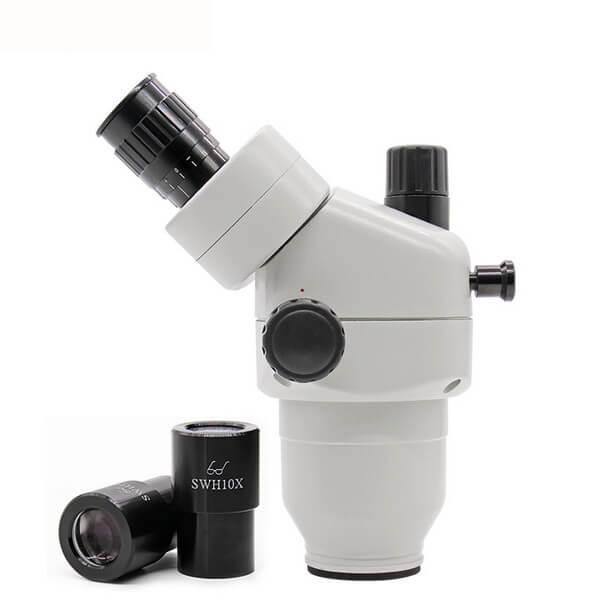

Trinocular head, Split ratio 50%/50%,20%/80% | ◎ | ● | ||||||||
Objective | 0.7X-4.5X Zoom、Objective zoom ratio 6.4:1 | ● | ● | |||||||
Auxiliary objective | Optional 0.3X,0.5X,0.7X,0.75X,1.5X,2X | ● | ● | |||||||
Camera | Digital camera and SLR can be installed | ◎ | ● | |||||||
Focus holder | A1 focus holder hand wheel elasticity adjustable、Lifting range 50mm | ● | ● | |||||||
Base | Optional other base | ● | ● | |||||||
Illumination | Double LEDlamp,Independent switch brightness adjustable | ● | ● |
