Model: YMZS1865C / YMZS1865TC(Trinocular)
Accesseries: Standard/Optional

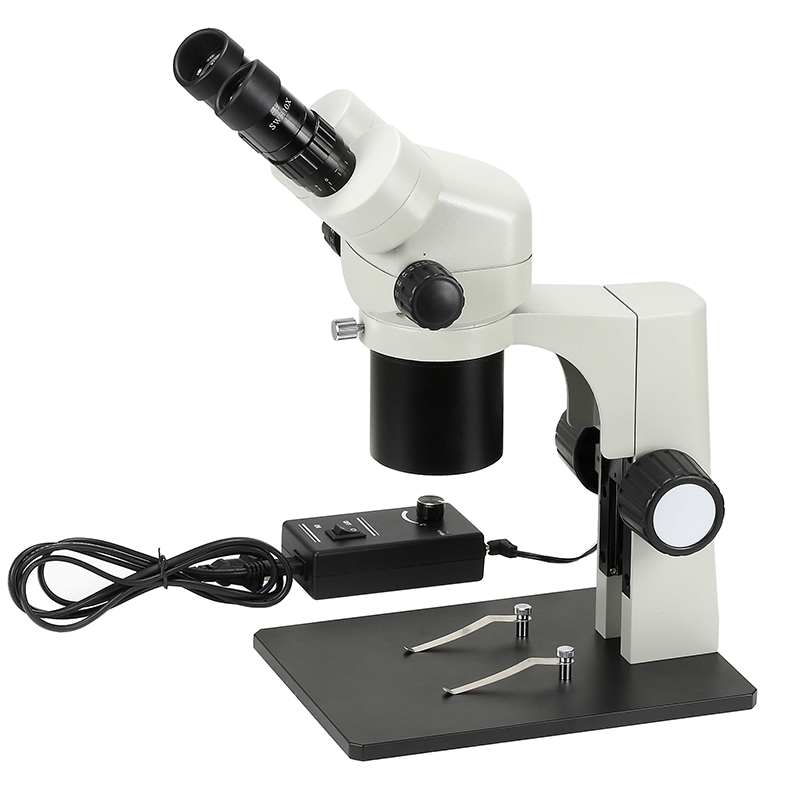

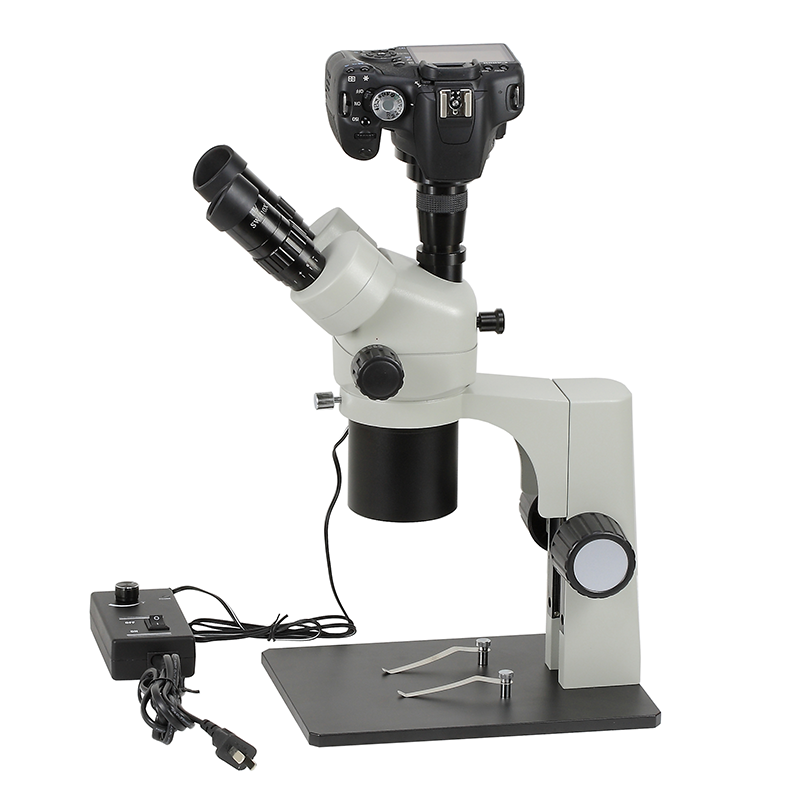

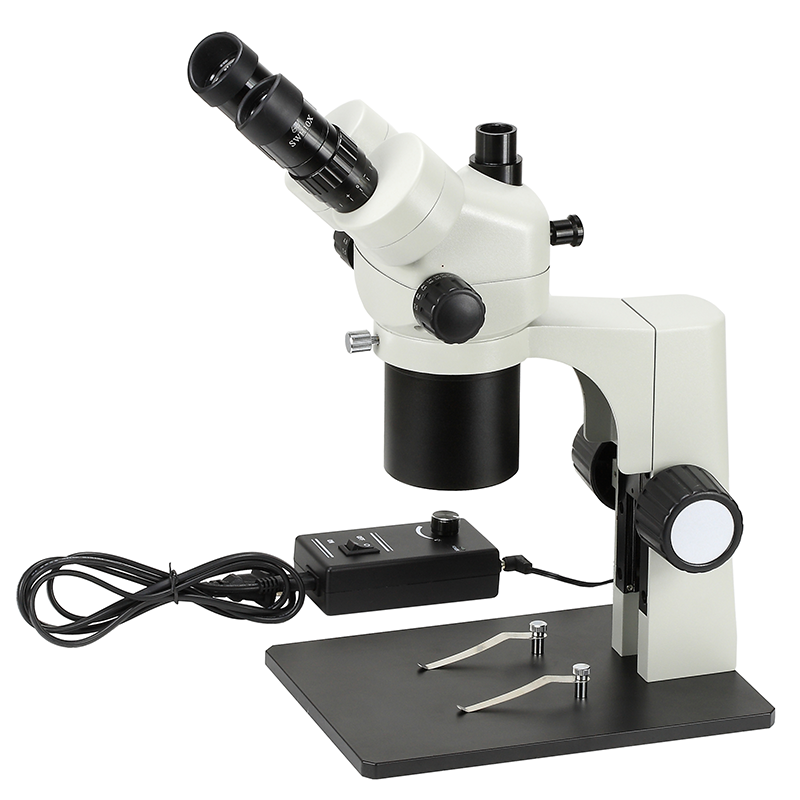

◆ YMZS1865C(binocular) and YMZS1865TC(trinocular)
◆ Unique optical design, high-quality LED coaxial illumination, high contrast, and large depth of field
◆Applied for images observation ,inspection and measurement on semiconductor, LCD, LED and etc., Which needs coaxial illumination
Magnification | Total magnification (standard outfits): 18X~65X, Extend total magnification：195X |
Eyepiece | SWH10X high eye point & extra wide-field eyepiece ,FOV Φ23mm |
Eyetubes | Inclined 45° |
WD | 92mm |
Focus range | Track stand:100mm |
Interpupillary distance adjustment range (10X eyepiece) | 52mm~76mm |
Diopter adjustment range | ±6 Diopter |
The holder and the head matching dimension | Φ76mm |
Illuminators | Optional illumination:5W fluorescent lamp at the bottom; halogen lamp(6V、10W) on the top. |
