Model: YIB-100
Accessories: Standard (Optional)
Magnification: 40X~400X

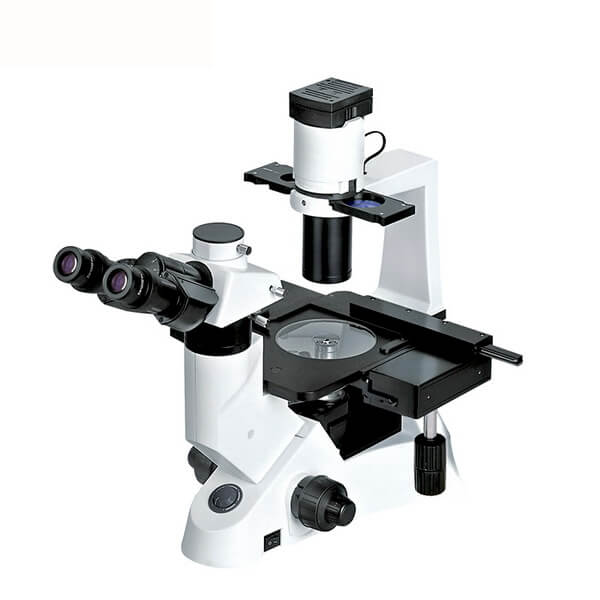

YIB Inverted biological microscope with long working distance plan achromatic objectives、wide field eyepiece and adjustable condenser. The product has a compact structure and a reasonable design of operating parts, makes the observer feel relaxed and comfortable during the operation of the instrument. The product is suitable for microscopic observation of cell tissue and transparent liquid tissue, Dynamic microscopic observation of cultured tissues in petri dishes. Can be used in scientific research institutes, universities, medical and health, inspection and quarantine, agriculture, animal husbandry and dairy industries.
Infinity optical system, provides excellent optical performance. Innovative lens mechanism, clear specimen observation, and convenient operation method, designed specifically for cell culture observation, it is an innovative solution for routine inspection.
Technical specifications | ||
Optical system | Infinite optical system | |
Observation head | Trinocular，30°inclination，Interpupillary distance adjustment range 48-75mm | |
Eyepiece | Wide field EW10X/22 | |
Objective | Infinity plan achromatic Objective | 4X/0.1, WD 28mm |
10X/0.25, WD 10mm | ||
20X/0.4, WD 5.1mm | ||
40X/0.6, WD 2.1mm | ||
Infinity plan phase contrast objective | PH10X/0.25, WD 10 mm | |
PH20X/0.4, WD 5.1mm | ||
PH40X/0.6, WD 2.1mm | ||
Nosepiece | Quintuple nosepiece | |
Condenser | ELWD Condenser NA 0.3,LWD72mm(Without Condenser 150mm) | |
Centering telescope | Centering telescope（EyetubeΦ30MM） | |
Phase Annulus | 10X－20X、40X Phase Annulus Plate (Fixed) | |
10X－20X、40X Phase Annulus Plate (Adjustable) | ||
Stage | Plain Stage 160X250mm | |
Glass Insert | ||
Attachable Mechanical Stage,X、Y Coaxial Control,Moving Rang 120X78mm | ||
Auxiliary Stage 70X180mm | ||
Terasaki Holder | ||
Petri Dish Holder Φ35mm | ||
Slide Glass Holder Φ54mm | ||
Dish Holder Φ90mm Petri | ||
Focusing | Coaxial Coarse and Fine Ajustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm | |
Illumination | Halogen Lamp 6V/30W | |
3W LED | ||
Filter | Blue、Green and Ground Glass, Diameter 45mm | |
Accessories | Inverted Fluorescent Attachment FI-100 | |
Photo Attachment | ||
Video Adapter with C Mount | ||
