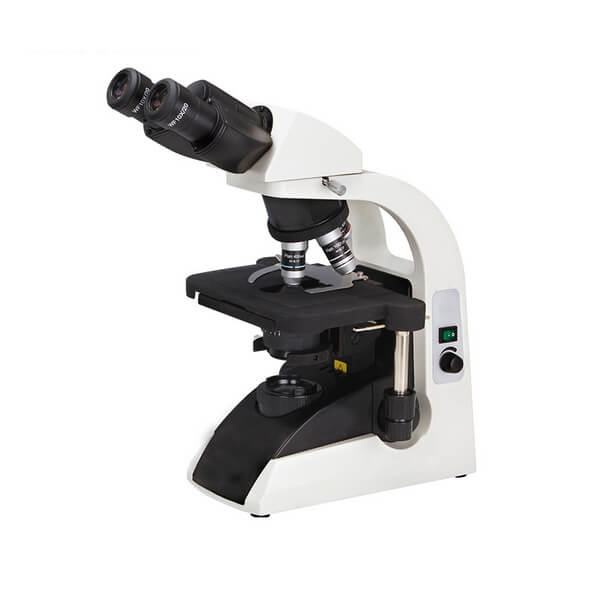

Model: YCM-2000
Accessories: Standard(Optional)
Magnification: 40X~1500X
YCM-2000 series biological microscopes are equipped with high-quality infinite plan achromatic objectives and large field eyepieces,wide field of vision and clear image quality. Ideal design to meet ergonomic requirements, the product uses low-level focus handwheel, Inward objective lens converter and built-in portable design, make the whole operation process more convenient and comfortable, higher space utilization and safer handling. It is widely used in biological, medical, forensic, industrial, agricultural and other fields,medical, biological engineering, public security, teaching and scientific research units such as the ideal instrument.
l Excellent image quality with infinite optical system
l Comfortable operating with ergonomic design
l Better illumination with sliding-in centerable condenser, convenient replacement with phase contrast and dark fiel condenser
YCM2000 | ||
Optical System | Infinite Optical System | l |
Viewing Head | Seidentopf binocular viewing head, inclined at 30°,360°rotatable, interpupillary 48-75mm | l |
Seidentopf trinocular viewing head, inclined at 30°,360°rotatable, interpupillary 48-75mm | ○ | |
Eyepiece | WF10X/20 | l |
WF15X/16 | ○ | |
Objective | Infinite plan achromatic objective 4X, 10X, 40X, 100X | l |
Infinite plan achromatic objective 20X, 60X | ○ | |
Nosepiece | Backward quadruple nosepiece | l |
Backward quintuple nosepiece | ○ | |
Focusing system | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 22mm | l |
Stage | Rectangular 230X150mm, cross travel 78X54mm, using low-positioned X/Y coaxial control knob | l |
Condenser | Abbe condenser NA1.25 with aperture diaphragm | l |
Illumination | 12V/20W halogen lamp, brightness adjustable | l |
S-LED Illumination, brightness adjustable | ○ | |
Optional | Photo attachment, video attachment, polarization set, kohler illumination, phase contrast kit | l |
Note: l Standard Outfit, ○ Optional
