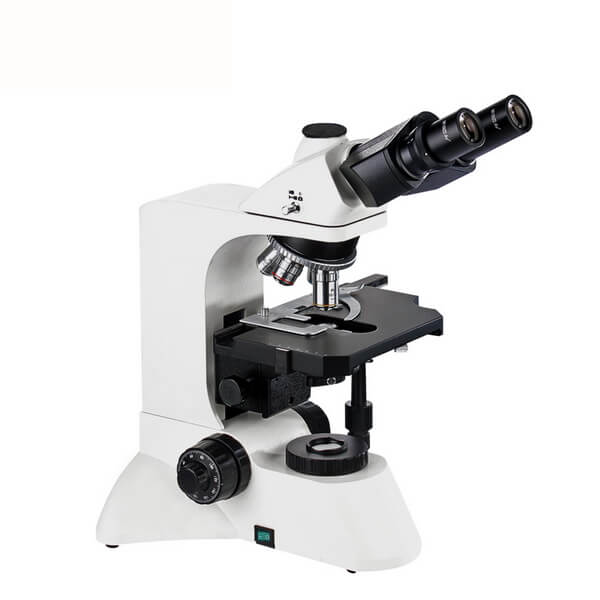

Model: YCL-3200

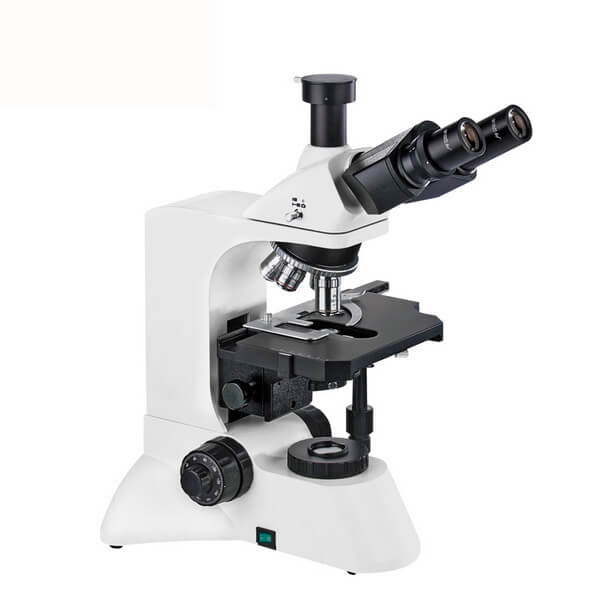

YCL-3200(trinocular)
Accessories: Standard(Optional)
Magnification: 40X~1000X
YCL3200 series biological microscopes are equipped with excellent infinity plan achromatic objectives and wide field eyepieces. The ideal ergonomic design is adopted, such as low-lying focusing knobs, backward nosepiece and integrated handle, so that operate the instruments easier and have wider space, especially moving the instruments is better safety. They can be used for biology, medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.
1. Using excellent infinity optical system, can provide excellent optical performance. 2. The compact and stable high-rigidity body fully reflects the anti-vibration requirements of micro-operation. 3. Ideal design that meets ergonomic requirements, making operation more convenient and comfortable, and wider space. 4. Mechanical moving stage, suitable for microscopic observation or rapid detection of multiple samples. 5. Modular function design can easily upgrade the system and realize functions such as phase contrast observation.
Specification | |||
Eyepiece | Wide field WF10X(field number:φ22mm) | ||
Infinity plan achromatic objective | PL 4X/0.10 (Work distance):19.8 mm | ||
PL 10X/0.25 (Work distance):5.0mm | |||
PL 40X/0.65(Spring) (Work distance):0.66 mm | |||
PL 100X/1.25(Spring, oil) (Work distance):0.36mm | |||
Eyepiece tube | L3200 HBG | Binocular (Inclination of 30 degrees) | |
L3200 HBT | Trinocular (Inclination of 30 degrees) | ||
Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm. | ||
Nosepiece | Quadruple (Backward ball bearing inner locating) | ||
Stage | Double layer mechanical stage and overall size: 210mm X 140mm, (Move range): 75mm X 50mm | ||
Abbe condenser | N.A.1.25 Rack & pinion adjustable | ||
Filter | Blue filter,Frosted filter | ||
Collector | Collector for halogen lamp illumination and integrated field diaphragm | ||
Light source | 6V 30W Halogen lamp and brightness control | ||
YCL-3200 | |||
Optional Accessory | Eyepiece | Dividing eyepiece 10X(φ22mm) | |
Objective | Infinity plan achromatic objective 20X,60X | ||
CCD adapter | 0.5X,1X,0.5X with dividing | ||
Camera | USB output: 1.3M/2.0M/3. VIDEO output: 380/520 TV Line | ||
Phase contrast unit | Centering telescope | ||
Infinity phase contrast plan achromatic 10X,20X,40X,100X | |||
Turnplate (Ⅰ,Ⅱ),Flashboard ,Pull board phase contrast condenser | |||
Black field equipment | Dry or oil type dark field condenser. | ||
Digital camera adapter | CANON(EF) NIKON( F) | ||
