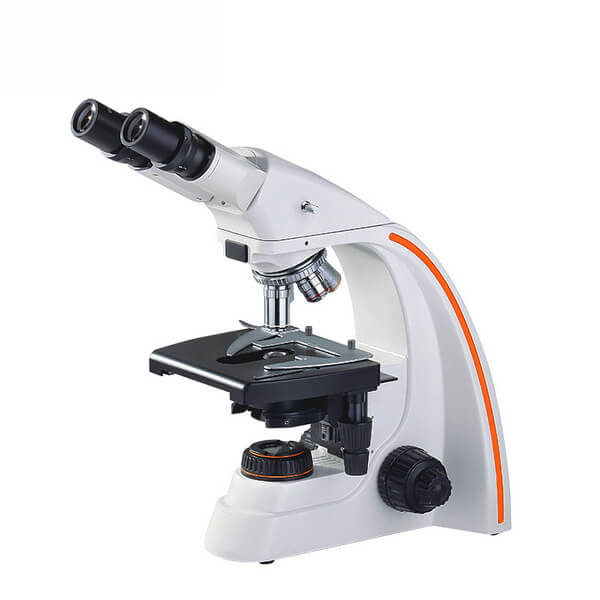

Model: YCL-2800-HBG

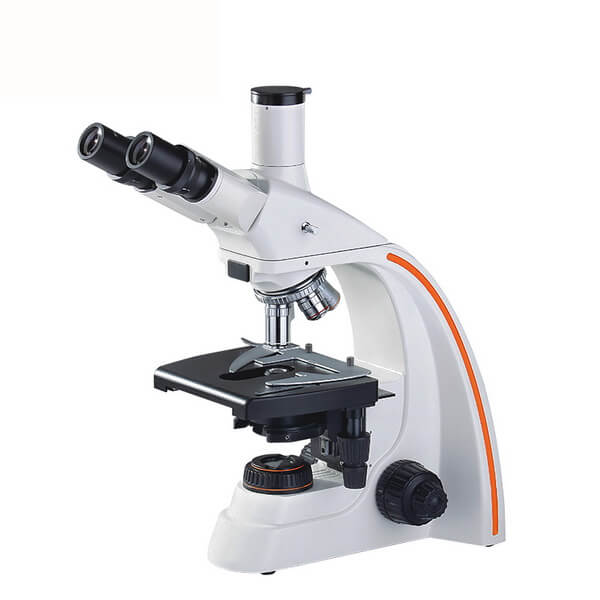

YCL-2800-HBT(trinocular)
Accessories: Standard(Optional)
Magnification: 40X~1000X
YCL-2800 series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces. They provide clear image, wide field, convenience operation. They can be used for biology medicine agriculture and industry area widely. They are the ideal instrument in medical treatment, teaching demonstration and scientific research.
l Total magnification: 40X~1000X
l Using excellent optical system design scheme to provide users with excellent optical performance
l Ergonomic design, comfortable operation, the use of hand space utilization rate is higher
l Optional multiple additional accessories, free modular design
l Convenient back handle, user-friendly design, easy to move
Basic specification:
Eyepiece | Wide field WF10X(φ22mm) |
Objective | Infinity plan achromatic objective |
PL 4X/0.10 (Work distance):21 mm | |
PL 10X/0.25 (Work distance):5.0 mm | |
PL 40X/0.65 (Spring) (Work distance):0.66 mm | |
PL 100X/1.25 (Spring, oil) (Work distance): 0.36mm | |
Eyepieces tube | Trinocular, Inclination of 30 degrees. |
Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
Nosepiece | Quardruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical (Size:180mmX150mm,movingrange:75mmX50mm) |
Transmitted Illumination System | Abbe condenser NA.1.25 Rack & pinion adjustable |
Blue filter and Ground glass | |
3W LED,brightness adjustable |
Optional Accessories | ||
Eyepiece | Dividing eyepiece(field number:φ22mm) 0.10mm/Div | |
Objective | Infinity plan achromatic objective | |
PL 20X/0.40 (Work distance):8.8 mm | ||
PL 60X/0.85 (Work distance):0.25mm | ||
Phase contrast unit | Eyepiece | Centering telescope |
Objectives | Infinity phase contrast plan achromatic 10X/0.25 PHP | |
Infinity phase contrast plan achromatic 20X/0.40 PHP | ||
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring) | ||
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil) | ||
Sliding phase contrast | ||
Filter | Green filter | |
Yellow filter | ||
CCD adapter | 0.4X | |
0.5X | ||
1X | ||
0.5X with dividing 0.1mm/Div | ||
Camera | DV-130/200/300/500/900 USB output | |
DV-1A/DV-1B Video output | ||
Digital camera adapter | CANON(EF) NIKON( F) | |
Facility polarize | Polarizer | 360° rotatable stage |
Analyzer | Sliding type | |
Illumination system | 6V 30W halogen lamp illumination | |
