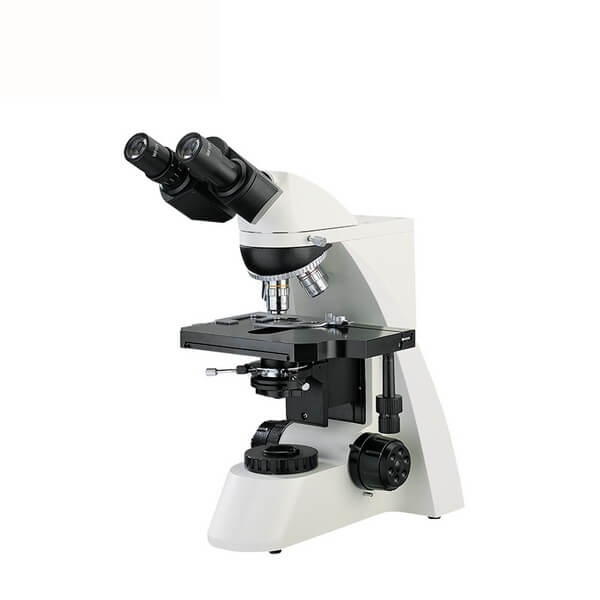

Model: YCL300-HBG

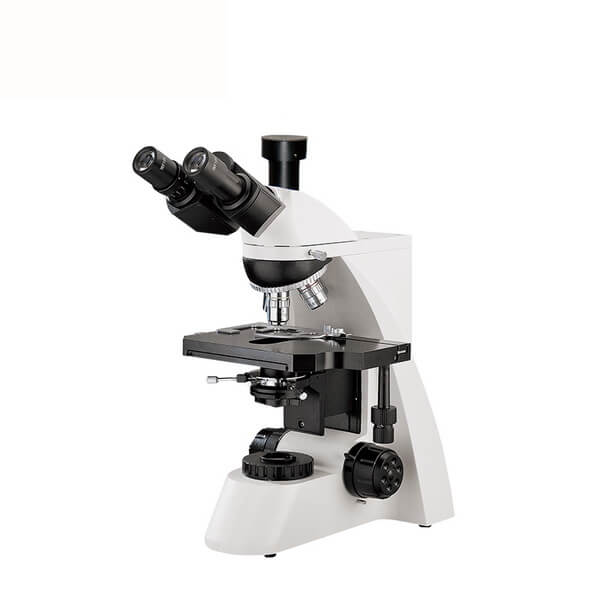

YCL3000-HBT(Trinocular)
Accessories: Standard/Optional
YCL-3000 series biological microscope is equipped with plan achromatic objectives and wide field eyepieces. It can get clear images and wide view field. It can be widely applied in biology, medicine, agriculture and industry areas. It is the ideal tool in hospitals for pathology diagnose and college labs.
1. Standard total magnification: 40X~1000X, extend total magnification 1600X.
2. Hinged observation tube, comfortable and beautiful, adjustable single vision.
3. The trinocular observation tube can be connected to photography and camera devices.
4. Built-in lighting device, brightness can be adjusted infinitely.
5. It can provide clear microscopic imaging for the normal bright field observation, phase contrast observation and dark field observation respectively.
6. Light collector with field diaphragm.
Specification | |||
Eyepiece | WF10X(Φ20mm) Wide field WF10X(field number:Φ20mm) | ||
Plan achromatic objective | PL 4X/0.10 (Work distance):19.8 mm | ||
PL 10X/0.25 (Work distance):5.0mm | |||
PL 40X/0.65(Spring) (Work distance):0.66 mm | |||
PL100X/1.25(Spring, oil) (Work distance):0.36mm | |||
Eyepiece tube | YCL3000 HBG | Binocular (Inclination of 30 degrees) | |
YCL3000 HBT | Trinocular (Inclination of 30 degrees) | ||
Focus system | Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm. | ||
Nosepiece | Quadruple(Backward ball bearing inner locating) | ||
Stage | Double layer mechanical stage and overall size:210mmX140mm, (Move range): 75mmX50mm) | ||
Abbe condenser | N.A.1.25, Rack & pinion adjustable | ||
Filter | Blue filter, Frosted filter | ||
Collector | Collector for halogen lamp illumination and integrated field diaphragm | ||
Light source | 6V 20W Halogen lamp and brightness control | ||
Optional Accessory | Eyepiece | 16X(Φ11mm) | |
Objective | Plan achromatic objective 20X,60X | ||
CCD adapter | 0.5X,1X,0.5X with dividing | ||
Camera | USB output: 1.3M/2.0M/3.0M pixel VIDEO output: 380/520 TV Line | ||
Phase contrast unit | Centering telescope | ||
Infinity phase contrast plan achromatic 10X,20X,40X,100X | |||
Turnplate (Ⅰ,Ⅱ),Flashboard ,Pull board phase contrast condenser | |||
Dark equipment | Dry or oil type dark field condenser. | ||
Digital camera adapter | CANON(EF) NIKON( F) | ||
