Model: YDS-2
Accessories: Standard/Optional
Magnification:100X~640X

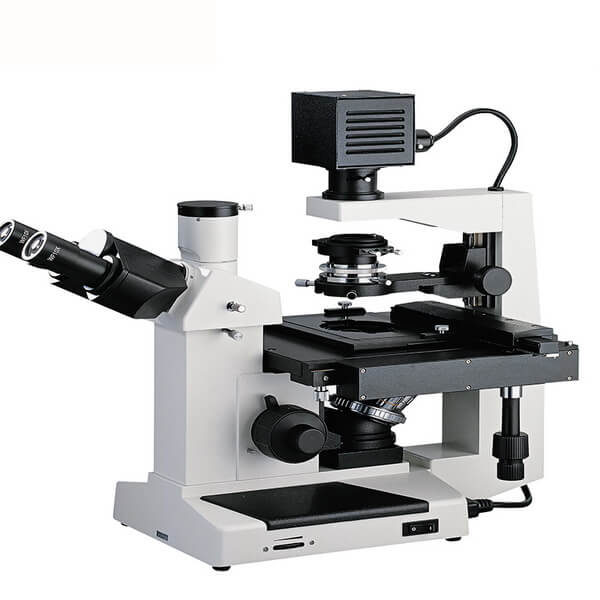

YDS-2 inverted biological microscope is equipped long working distance plan achromatic objectives, wide field plan eyepieces and adjustable condenser. The product structure is compact and the design of operation part is in reason, so that the operator feel easy and comfort. This is ideal optical instrument for micro observation in cell tissue and transmitted liquid tissue, even in dynamic observation in the culture dish tissue. It can be used in scientific research, universities, medical treatment, epidemic prevention, agriculture and etc.
1. Equipped with wide field eyepiece, long working distance plan achromatic objectives.
2. Equipped with phase contrast unit, include very long working distance condenser, phase contrast objective and centering telescope.
3. Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
4. 6V30W halogen lamp with brightness control.
Model | YDS-2 |
Eyepiece | Wide field WF10X(¦µ20mm) |
Objective | Long working distance plan achromatic PL L 10X/0.25 |
Long working distance plan achromatic PL L 25X/0.40 | |
Long working distance plan achromatic PL L 40X/0.60 | |
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2 | |
Eyepiece tube | Trinocular (Inclination of 30°, 100% image light for photography capable) |
Focus system | Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm. |
Nosepiece | Quadruple(Ball bearing inner locating) |
Stage | Double layer mechanical(Size:224mmX208mm,moving range:112mmX79mm) |
Shelf of specimen | Match to install ¦µ68mm or 77mmX29mm culture utensil |
Match to install 82mmX57mm culture utensil | |
Match to install 128mmX85mm 96 holes culture utensil | |
Filter | Blue filter |
Green filter | |
Frosted filter | |
Sliding phase contrast unit | Centering telescope |
10X Sliding phase plate | |
Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm | |
Light source | 6V 30W Halogen lamp with brightness control |
Optional accessories
Name | Sort/Technique parameter | |
Eyepiece | Wide field WF16X(¦µ11mm) | |
Dividing 10X(¦µ20mm), 0.1mm/Div | ||
Nosepiece | Quintuple(Ball bearing inner locating) | |
Condenser | Ultra long working distance,W.D.:70mm | |
Filter | Yellow filter | |
Sliding phase contrast unit | Objectives | Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2 |
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2 | ||
Sliding phase plate | 25X/40X | |
CCD adapter | 0.4X | |
0.5X | ||
1X | ||
0.5X with dividing 0.1mm/Div | ||
Camera | DV-1(With USB & video output) | |
DV-2(With USB output) | ||
DV-3(With video output) | ||
Digital camera adapter | CANON digital camera adapter(A610,A620,A630,A640) | |
Photograph unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece | |
4X Focusing photograph attachment | ||
MD Adapter | ||
PK Adapter | ||
