Model: YC-1000
Accessories: Standard (Optional)
Magnification: 100〜800X

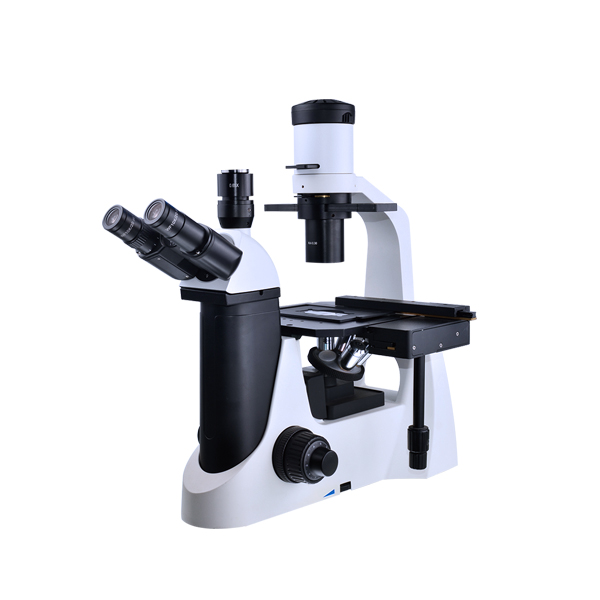

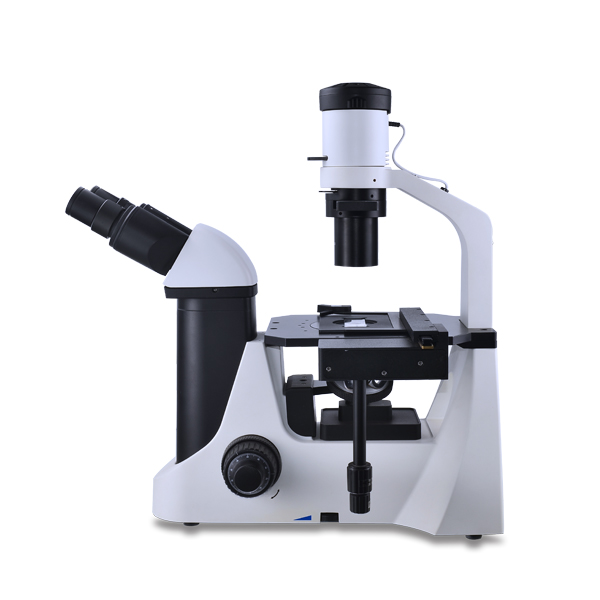

YC-1000 inverted biological microscope is used for observation and research of biological slices, biological cells, bacteria and living tissue culture, fluid sedimentation, etc., and can observe other transparent or translucent objects as well as powder, fine particles and other objects. Compared with ordinary biological microscopes: it is suitable for observing and recording living substances attached to the bottom of the petri dish or suspended in the medium, and can also play a huge role in the fields of food inspection, water quality identification, crystal structure analysis and chemical reaction sediment analysis.
Specification | ||
Optical system | UCIS Infinity Chromatic Aberration Independently Corrected Optical System | |
Eyepiece tube | Trinocular observation tube, 30° tilt, 360° rotation, interpupillary distance 48-75mm, ±5 diopter adjustment | |
Eyepiece | Wide field WF10X(field number:Φ22mm) | |
Centering telescope | ||
Infinity and long working distance plan achromatic objective | 10X | |
20X | ||
40X | ||
Stage | Fixed stage+ moving ruler | |
Multifunctional slide holder | ||
Nosepiece | Quintuple nosepiece | |
Phase contrast device | Phase contrast ring plate push-pull group | |
CCD adapter | 0.5X | |
Power supply | Upper light source group | |
6V30W halogen light box | ||
6V30W imported halogen lamp | ||
Filter | Blue color filter | |
Appendix | Dust cover | |
Optional accessories | Eyepiece tube | Binocular observation tube, 30° tilt, 360° rotation, interpupillary distance 48-75mm, ±5 diopter adjustment |
Eyepiece | Wide field WF10X(field number:Φ20mm) | |
Wide field WF16X(field number:Φ13mm) | ||
Wide field WF10X/Φ20mm (pointer) | ||
Wide field WF10X/Φ22mm (pointer) | ||
Plan reticle eyepiece 10X/Φ20mm | ||
Plan reticle eyepiece 10X/Φ22mm | ||
Infinity and long working distance plan achromatic objective | 4X | |
60X | ||
Phase Contrast Objective | 4X | |
10X | ||
40X | ||
Stage | Bracket seat | |
Bracket | ||
Perforated plate seat | ||
Water drop slide | ||
Tablet group | ||
Mechanical moving stage 180mmX155mm，range of movement 80X50mm | ||
Filter | Green filter | |
Yellow filter | ||
Frosted glass | ||
Camera | 3.1MP/5.0MP/6.3MP/8MP/12MP/20MP, USB3.0, SONY Exmor CMOS sensor | |
Digital camera adapter | CANON(EF) NIKON( F) | |
