YC-1500 Inverted Compound Microscope For Sale

Model: YC-2500

Accessories: Standard (Optional)

Magnification: 100〜800X

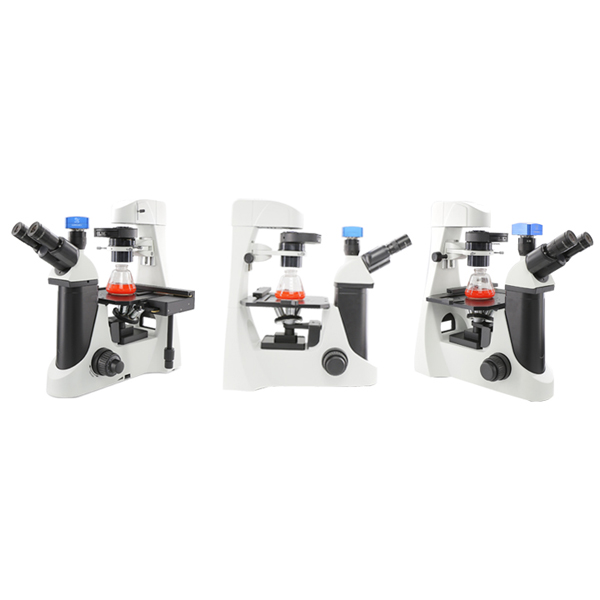

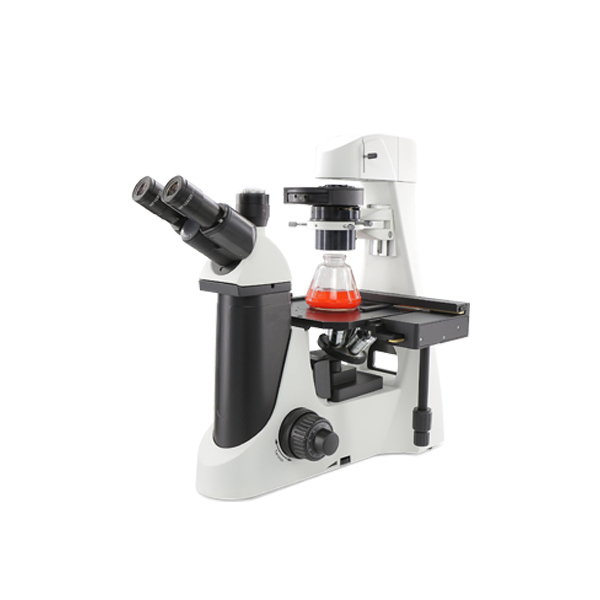

YC-2500 inverted biological microscope is used for observation and research of biological slices, biological cells, bacteria and living tissue culture, fluid sedimentation, etc., and can observe other transparent or translucent objects as well as powder, fine particles and other objects. Compared with ordinary biological microscopes: it is suitable for observing and recording living substances attached to the bottom of the petri dish or suspended in the medium, and can also play a huge role in the fields of food inspection, water quality identification, crystal structure analysis and chemical reaction sediment analysis.



Technical parameter

DSZ2500X

Optical system



Infinite color difference independent correction optical system



●

Eyepiece tube

Binocular observation tube, 30 ° tilt, 360 ° rotation, pupil distance 48-75mm, ± 5 visual adjustment

●

Trinocular observation tube, 30 ° tilt, 360 ° rotation, pupil distance 48-75mm, ± 5 visual adjustment



○

Eyepiece

WF-10X/Φ20mm

●●

WF-10X/Φ22mm

○○

WF-16X/Φ13mm

○○

WF-10X/Φ20mm(Pointer)

○

WF-10X/Φ22mm(Pointer)

○

Flat field reticle 10X/Φ20mm

○

Flat field reticle 10X/Φ22mm

○

Centering eyepiece

●

Objective

Infinite long distance plan achromatic objective

4X

○

Infinite long distance plan achromatic objective

10X

●

Infinite long distance plan achromatic objective

20X

●

Infinite long distance plan achromatic objective

40X

●

Infinite long distance plan achromatic objective

60X

○

Infinite phase contrast plan achromatic objective

4X

○

Infinite phase contrast plan achromatic objective

10X

○

Infinite phase contrast plan achromatic objective

20X

●

Infinite phase contrast plan achromatic objective

40X

○

Stage

Fixed stage+ moving ruler

●

Bracket seat

○

Multi functional slide holder

●

Bracket

○

Multiholes

○

Mechanical stage 180mmX155mm,Moving range

80X50mm

○

Water drop slide

○

Tablet group

○

Nosepiece

Quintuple

●

Phase contrast setting

Rotary table type phase contrast ring plate group

●

Camera adapter

C adapter

●

Power

Upper light source group

●

6V30WHalogen lamp

●

6V30WImported halogen lamp

●

Filter

Blue filter

●

Green filter

○

Yellow filter

○

Ground glass sheet

○

Enclosure

Dust cover

●

“●” Stand for standard

“○” Stand for optional
