Model: JL-17AT
JL-17BT
Accessories: Standard

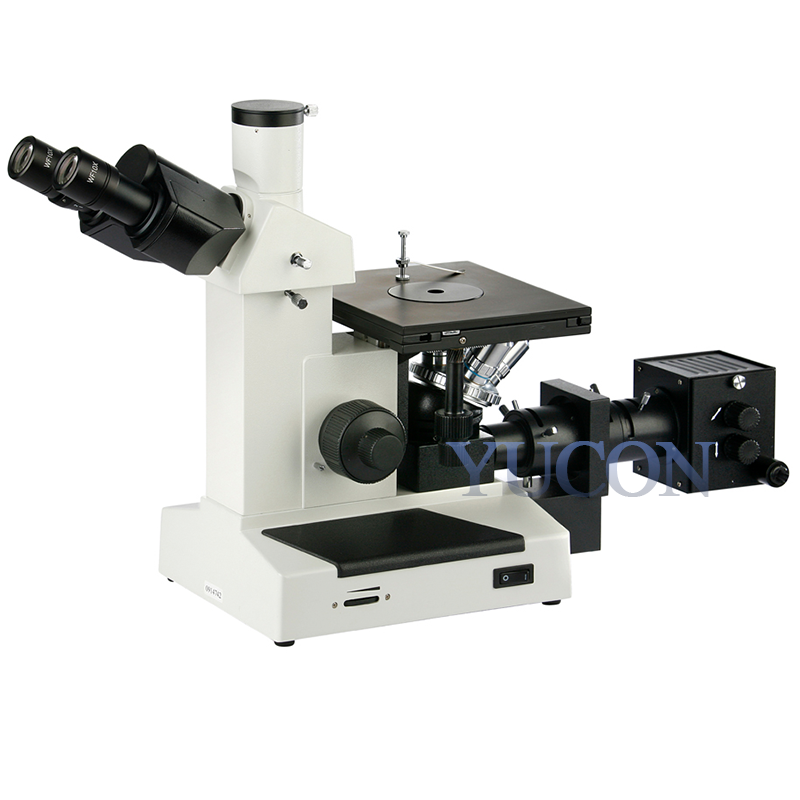

JL-17AT Inverted metallurgical microscpe is equipped excellent plan achromatic objectives and wide field eyepieces, the illumination mode is Kohler, so that the field is very uniformity.
The instrument is designed very compact in structure, to make the operation easiy and confortable. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy,precision engineering, etc.
Ø Plan Metallurgical Objective.
Ø LWD Plan Metallurgical Objective Optional.
Ø Optional polarizing set of Polarizer & Analyzer.
Ø Mechanical, size 180x150mm, moving range 15x15mm.
Standard Configuration:
Model | JL-17AT | JL-17BT |
Eyepiece | Wide field WF10X(Φ18mm) | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL 10X/0.25 | Achromatic objectives(no cover glass) 10X/0.25 |
Plan achromatic objectives with long working distance (no cover glass) PL L20X/0.40 | Achromatic objectives(no cover glass) 20X/0.40 | |
Plan achromatic objectives with long working distance (no cover glass) PL L40X/0.60 | Achromatic objectives(no cover glass) SP 40X/0.65 | |
Plan achromatic objectives with long working distance (no cover glass) PL 100X/1.25(Spring, oil) | Achromatic objectives(no cover glass) 100X/1.25(Spring, oil) | |
Eyepieces tube | Trinocular, Inclination of 30˚ | |
Filter | Blue filter | |
Green filter | ||
Yellow filter | ||
Focus system | Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. | |
Nosepiece | Quadruple(Ball bearing inner locating) | |
Stage | Double layer mechanical (Size:180mmX150mm) | |
Illumination unit | 6V 20W halogen lamp, brightness control. | |
Optional accessories
Name | Sort/Technique parameter |
Eyepiece | Wide field WF16X(Φ11mm) |
Dividing 10X(Φ18mm) 0.1mm/Div | |
Objective | Plan achromatic objectives with long working distance (no cover glass) PL 5X/0.12 |
Plan achromatic objectives with long working distance (no cover glass) PL L 60X/0.75(Spring) | |
Plan achromatic objectives with long working distance (no cover glass) PL L 100X/0.85 (Spring) | |
Achromatic objectives(no cover glass) 60X/0.85 | |
Eyepieces tub | Binocular, Inclination of 30˚ |
Nosepiece | Quintuple(Ball bearing inner locating) |
Simple polarizing unit | Polariser |
Polarization analyzer | |
CCD adapter | 0.4X |
0.5X | |
1X | |
0.5X with dividing 0.1mm/Div | |
Camera | DV-1 With USB & video output |
DV-2 With USB output | |
DV-3 With video output | |
Photo unit | 2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
4X Focusing photograph attachment | |
MD Adapter | |
PK Adapter | |
Digital camera adapter | CANON(A610,A620,A630,A640) |
