Model: JL101/JL-201
Accessories: Standard / Optional

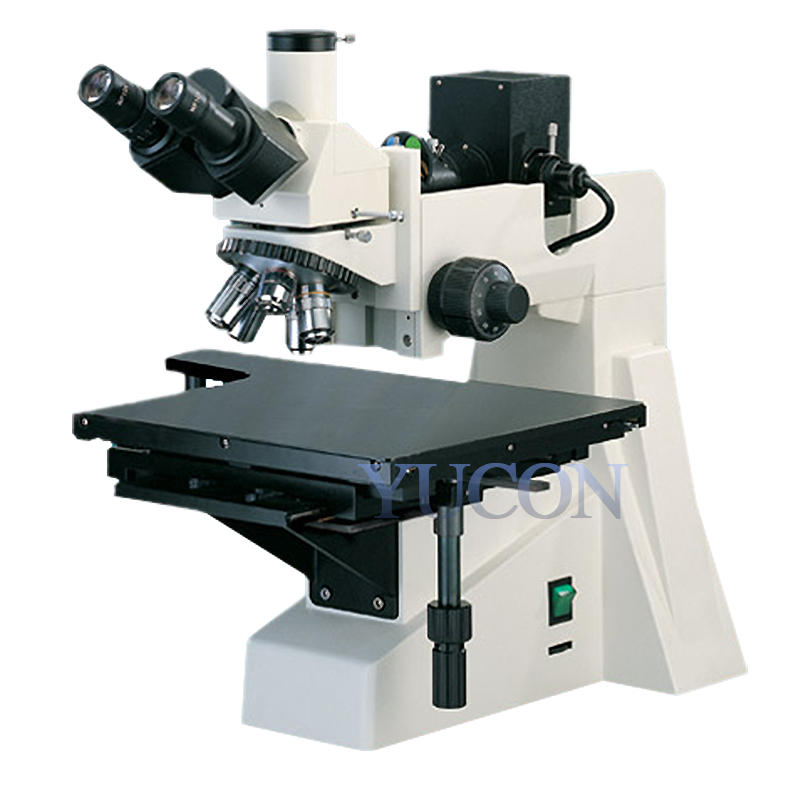

JL-101/201 Series upright metallurgical microscopes are suitable to observe surfaces of opaque object or transparent object. They are equipped with Kohler illumination and excellent logne working distance plan achromatic objectives and wide field eyepieces, provited excellent optical quilatity and operation performance. The main frame body is designed"T" type to content the shock resistance and big smaple cheching. The big size moving stage can be moved slow-motion or double-quick, and enable selection mode of the lift motion device, such as stage or objectives unit lift motion, so that content the different thickness sample. They have beautiful sculpt and convenient operation. They are the ideal instruments in research work for metallography, mineralogy, precision engineering, electronics, etc.
l 30 degree inclined 360 degree rotatable trinocular head and integrated analyzer.
l Co-axial coarse & fine focusing system.
l Quintuple backward ball bearing inner locating.
Specitication | ||
Eyepiece | Wide field WF10X(field number Φ18mm) | |
Objective | PL L5X/0.12 Working distance:18.3 mm | |
PL L10X/0.25 Working distance：8.8 mm | ||
PL L20X/0.40 Working distance：8.6 mm | ||
PL L40X/0.60（Spring）Working distance：3.73mm | ||
PL L80X/0.80（Spring）Working distance：0.96mm | ||
Eyepieces tube | Trinocular，30° Inclination, integrated analyzer | |
Epi-illumination system | 6V 20W halogen lamp, adjustable brightness | |
Integrated field, aperture diaphragm and (Y,B,G ground glass) switching device. The mode XJL-101 is equipped with integrated polarizer and rotatable for rotatable for 360°, the mode XJL-201 is equipped with the outside polarizer and rotatable from 0°～90° | ||
Focus system | Coaxial coarse/fine focuse system with tension adjustable and limit stopper, the minimum division of fine focusing: the mode JL-101 IS 0.7μm and the mode JL-201: 2μm | |
Nosepiece | Quintuple Backward ball bearing inner locating | |
Stage | Three layer mechanical stage，overall size: 250mmX230mm, moving range: 154mmX154mm. | |
Optional Accessory | Eyepiece | 16X plan eyepeiece |
Dividing eyepiece 10X(Φ18mm) | ||
Objective | 50X、100X(Dry） | |
Stage | Three layer mechanical stage, overall size: 280mmX270mm, moving range: 204mmX204mm | |
CCD Adapater | 0.5X、1X、0.5X with dividing | |
Camera | USB and VIDEO output：Video output(380/520 TV line)，USBoutput(42m pixel) VIDEO output：(380/520 TU line) | |
Digital camera adapter | CANON(EF) NIKON( F) |
