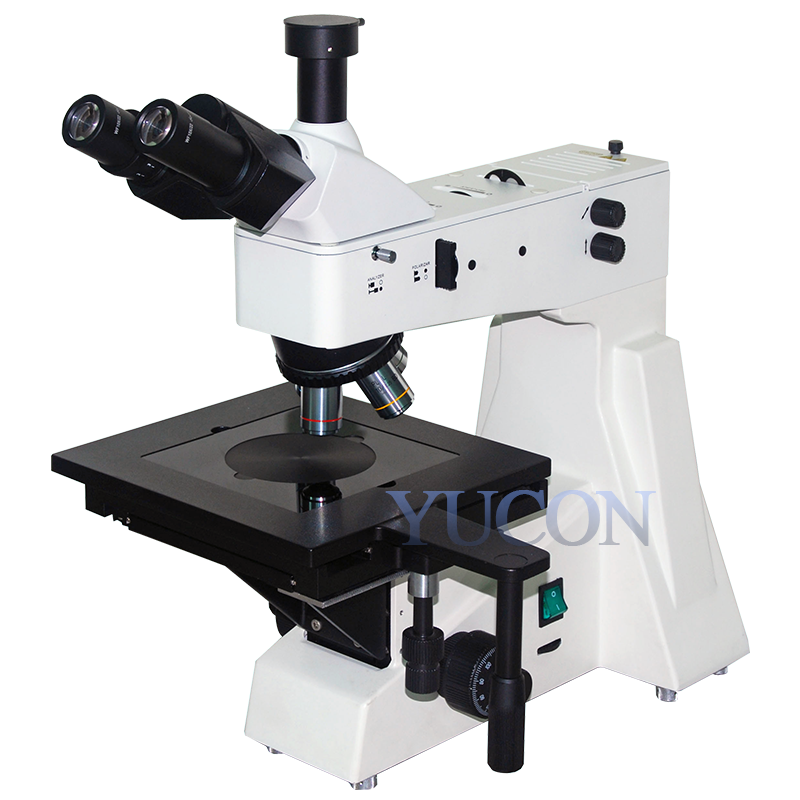

JL-302 Upright Metallurgical Microscope

Model:  JL-302

             JL-302BD

Accessories: Standard / Optional

     JL-302/JL-302BD upright metallurgical microscope is suitable to observe surfaces of opaque object. It is equipped wxcellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation.


Compact and steady main  frame body is embodiment for the shock resisteance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space.


This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.


l  Built-in polarization system with polarizer and analyzer.

l  Built-in bright/dark viewing field system with conversion slide.

l  EPI-illumination filters included: Yellow; Blue; Green; Frosted glass switching device.

Technical specifications

 Eyepiece

Wide field WF10X(field number Φ22mm)

 Infinity plan achromatic objective

 JL-302

(Equipped with bright field objectives)

 PL L5X/0.12  Working distance:26.1 mm

 PL L10X/0.25  Working distance:20.2 mm

 PL L20X/0.40  Working distance:8.80 mm

 PL L50X/0.70  Working distance:3.68 mm

 PL L80X/0.80  Working distance:1.25 mm

 JL-302BD

(Equipped with bright & dark field objectives)

 PL L5X/0.12 BD  Working distance:9.70 mm

 PL L10X/0.25 BD  Working distance:9.30 mm

 PL L20X/0.40 BD Working distance:7.23mm

 PL L50X/0.70 BD  Working distance:2.50 mm

 PL L80X/0.80 BD Working distance:0.80 mm

 Eyepieces tube

 Trinocular inclined 30˚, can be shot in 100% light flux

 Epi-illumination system

 JL-302

6V30W halogen lamp,brightness adjustable

 JL-302BD

12V50W halogen lamp,brightness adjustable

 Integrated field diaphragm, aperture diaphragm and (Y,B,G, frosted glass) switching device

 Focus system

 Coaxial coarse/fine focus system with tension adjustable and up stop, minimum division of fine focusing:0.7μm

 Nosepiece

 Quintuple (Backward ball bearing inner locating)

 Stage

 Mechanical stage, size: 280mmX270mm, moving range: 204mmX204mm



Optional Accessory

Eyepiece

 Dividing eyepiece 10X(Φ22mm)

 Objective

JL-302

 40X、60X、100X(Dry)) Bright field objective

JL-302BD

 40X、60X、100X Bright & dark field objectives

 Stage

 Size: 250mmX230mm,

 Moving rang:154mmX154mm

 CCD adapter

 0.4X、0.5X、1X、0.5X With dividing

 Camera

 USB output:130/200/300mp/Piexel

 VIDEO output:380/520 TV line

 Digital camera adapter

 CANON(EF)  NIKON( F)
