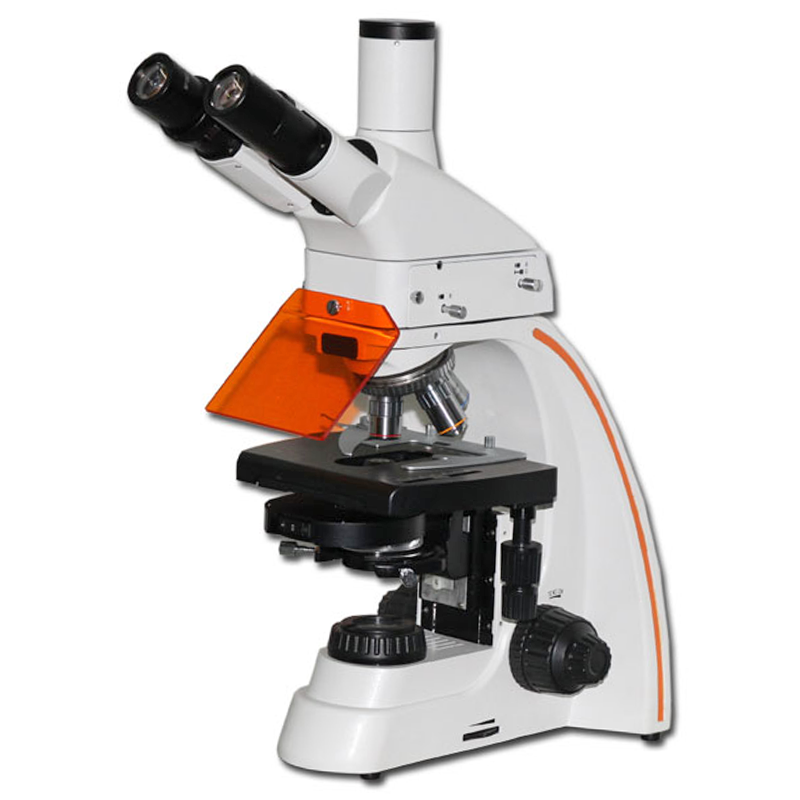

Model: YCL2801(LED)
Accessories: Standard / Optional
YCL2801 epi-fluorescence microscope adopts excellent infinity optical system and modular function design concept. It is equipped with infinity plan achromatic fluorescent objective lens without magnification chromatic aberration and large field eyepiece, and the optical system has clear imaging. 100-240V 50/60Hz wide-voltage adapter power supply, easy to connect and safe to use; easy switching of bright field and fluorescence observation through push rod; power supply through external battery module to ensure continuous operation of LED fluorescence observation for more than 8 hours; more Bands are easily switched for post-compositing.
Eyepiece | WF10X(Φ22mm) | |
Infinity plan achromatic objective | PL 4X/0.10 | |
PL 10X/0.25 | ||
PL FL40X/0.85（Spring） | ||
PL 100X/1.25(Spring,oil) | ||
Eypepieces tube | Trinocular, Inclaination 30˚ | |
EPI-fluorescence illumination system
| Using 5W high-brightness single-color LED, modular design, the standard module includes B and G colors, and the dual-band can be easily switched. Conventional V, UV excitation filters can be selected, and excitation filter sets optimized for CFP, FITC, CY3, DAPI and other dyes can also be selected. | |
Focus system | Coaxial coarse/fine focus with tension adjustable and up stop,minimum division of fine focusing:2μm | |
Nosepiece | Quintuple nosepiece | |
Stage | Double layer mechanical (size:182mmX114mm,moving range:75mmX50mm) | |
Transmitted illumination system
| Abbe condenser NA.1.25 Rack & pinion adjustable | |
Collector for LED illulination and intergrated field diaphragm | ||
5W high brightness white LED, brightness adjustable | ||
Power supply system | Powered by an external 12V adapter, which can provide both upper and lower light sources | |
| YCL2801 | ||
Optional Accessories | External battery, large capacity 60Wh, with charging adapter, can provide upper or lower light source for more than 8 hours. | |
Eyepiece | Dividing eyepiece 10X(field number:Φ22mm) | |
Objective | Infinity plan achromatic objetive 60X/0.8 | |
Infinity pan fluorescence objective PL10X/0.35 | ||
Infinity pan fluorescence objective PL20X/0.65 | ||
CCD adapter | 0.4X、0.5X、0.65X、1X、2X、0.5X with dividing | |
Camera | 300/500/1000/1200/2000 Megapixel camera Optional USB2.0，USB3.0 adapter | |
Professional digital SLR (micro-single) connector | CANON(EF) ，NIKON(F)，M43，Sony α。 | |
