Model: YCL3201
Accessories: Standard / Optional

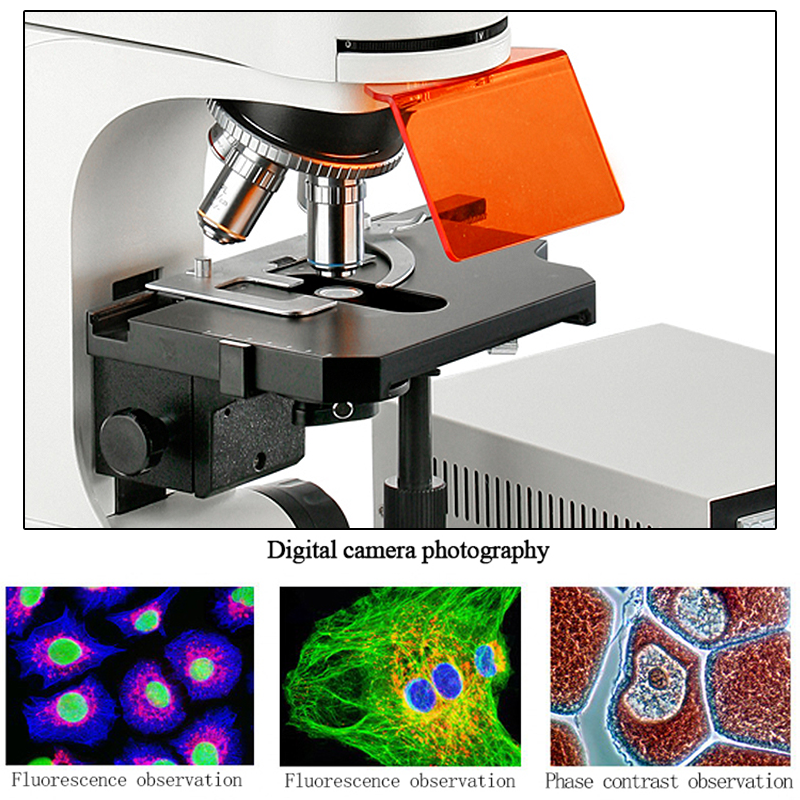

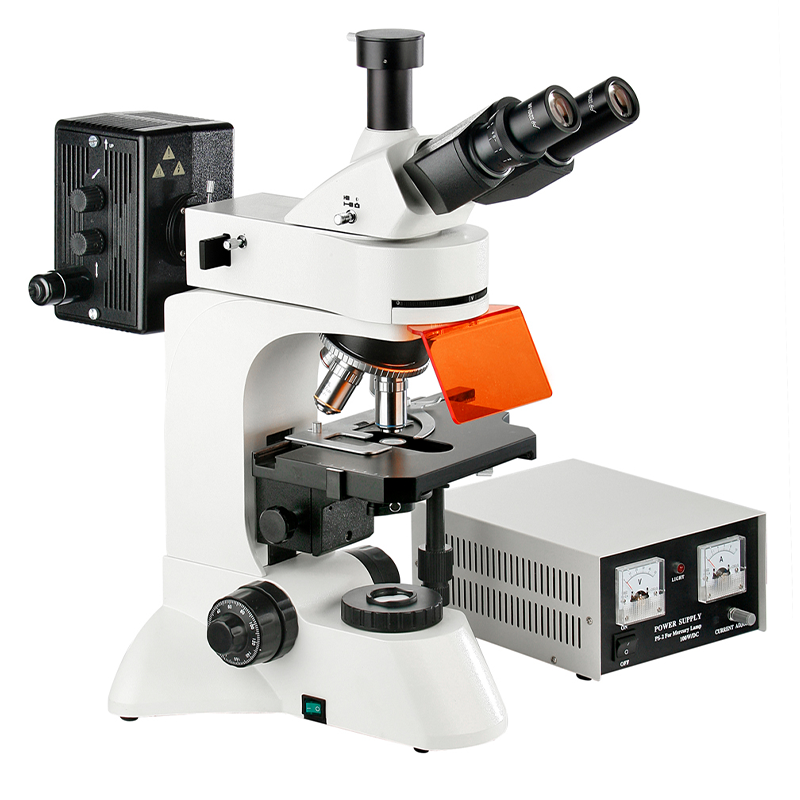

YCL3201 series epi-fluorescence microscope adopts excellent infinity optical system and modular function design concept, which can provide excellent optical quality and operational performance. The imaging is clear and bright, and the field of view is wide. Ideal design in line with ergonomic requirements, with a low-position focusing handwheel and an inward-facing nosepiece, making the operation more comfortable and easy. It can perform fluorescence microscopy and transmission bright field observation. It is suitable for biopharmaceuticals, medical testing, disease prevention and other fields.
Model | L3201 |
Eyepiece | Wide field WF10X(µ22mm) |
Objective | Infinity plan achromatic objectives |
PL 4X/0.10 (Work distance)：19.8 mm | |
PL 10X/0.25 (Work distance)：5.0 mm | |
PLF L40X/0.85£¨spring£©(Work distance)：0.42mm(No magnification spherochromatic aberration ) | |
PL 100X/1.25(Spring, oil) (Work distance)：0.36mm | |
Eyepieces tube | Trinocular, Inclination of 30˚. |
Epi-fluorescent illumination system | Power supply unit, 110V or 220V can be selected. |
Mercury lamp is 100W/DC | |
Turnplate Epi-fluorescence illuminator (UV.V.B.G filters system) | |
Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
Nosepiece | Quintuple(Backward ball bearing inner locating) |
Stage | Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
Transmitted illumination system | Abbe condenser NA.1.25 Rack & pinion adjustable |
Blue filter and Ground glass | |
Collector for halogen lamp illumination and integrated field diaphragm | |
6V 30W halogen lamp, adjustable brightness |
Name | Sort/Technique parameter |
Eyepiece | Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div |
Objective | Infinity plan achromatic objective PL 60X/0.80(Work distance)：0.46 mm |
Infinity plan achromatic fluorescent objective PL FL10X/0.35(Work distance)：2.37 mm | |
Filter | Green filter |
Yellow filter | |
CCD adapter | 0.4X |
0.5X | |
1X | |
0.5X with dividing 0.1mm/Div | |
Camera | DV-1 Video output(380/520 TV line) USB output(0.42 M pixel) |
DV-2 With USB output (1.3M,2.0M,3.0M pixel) | |
DV-3 With video output(380/520 TV line) | |
Digital camera adapter | CANON(EF) NIKON( F) |
