Model: YCL3201
Light source: LED
Accessories: Standard / Optional

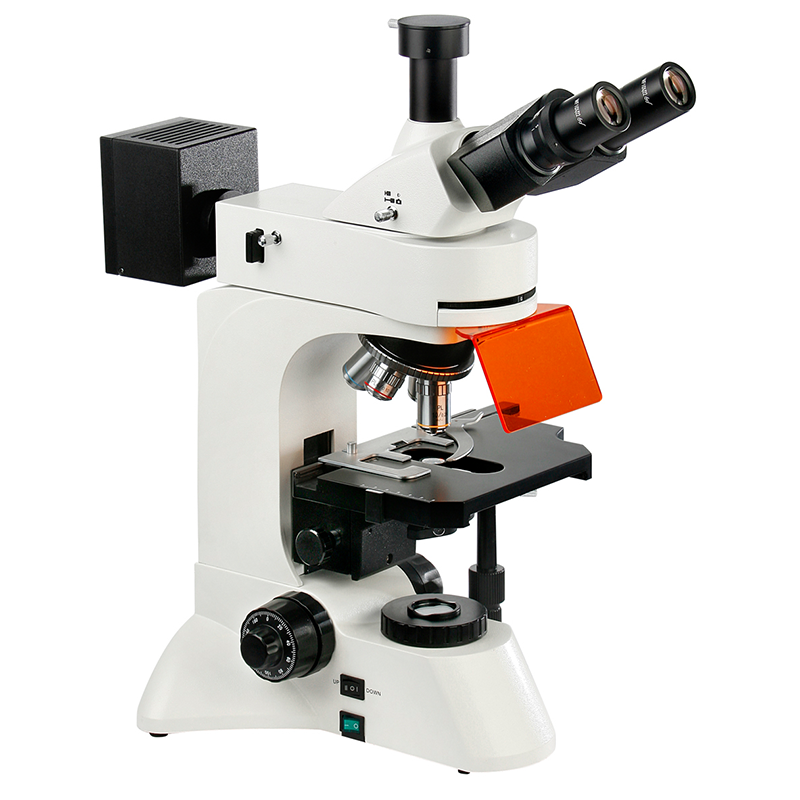

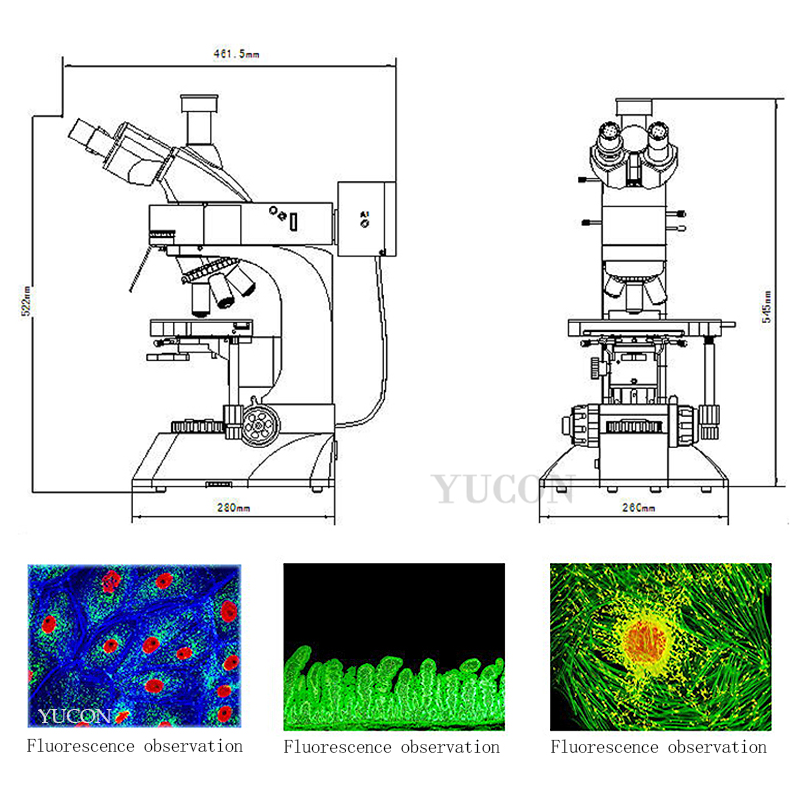

YCL3201 (LED) epi-fluorescence microscope adopts excellent infinity optical system and modular function design concept. The transflective light source adopts high-power and high-brightness LED. The lighting device has low power consumption and good heat dissipation effect. The instrument is safe and comfortable to use. Features such as low maintenance cost, equipped with infinity plan achromatic fluorescence objective without magnification chromatic aberration and large field eyepiece, can provide excellent optical quality and operational performance, suitable for biopharmaceuticals, medical testing, disease prevention and other fields.

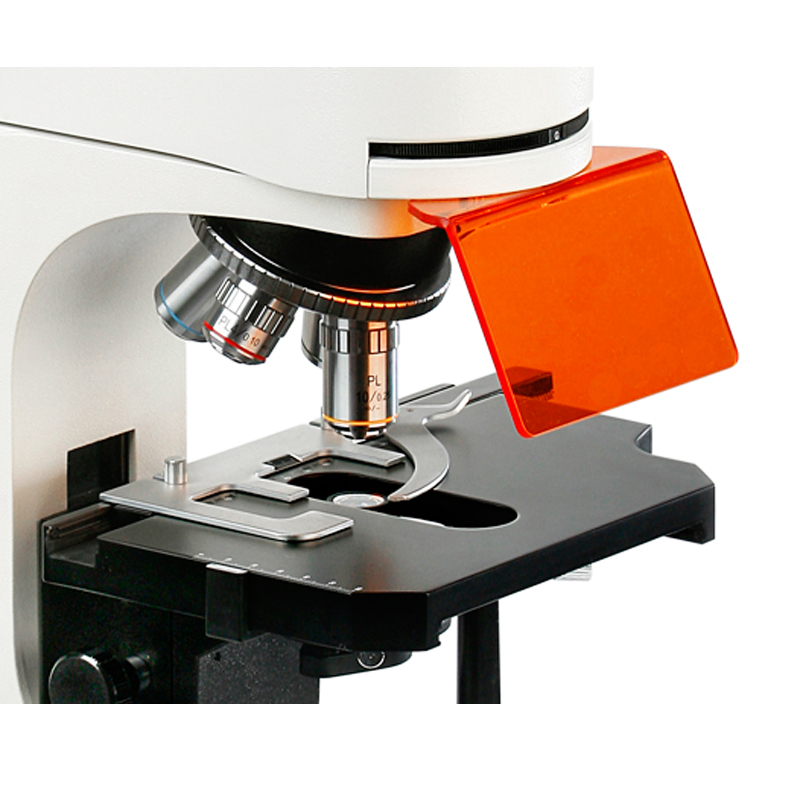

Model | L3201 LED |
Eyepiece | Wide field WF10X(Ф22mm) |
Objective | Infinity plan achromatic objectives |
PL 4X/0.10 (Work distance)：19.8 mm | |
PL 10X/0.25 (Work distance)：5.0 mm | |
PLF L40X/0.85£¨spring£© (Work distance)：0.42 mm (No magnification spherochromatic aberration ) | |
PL 100X/1.25(Spring, oil) (Work distance)：0.36mm | |
Eyepieces tube | Trinocular, Inclination of 30˚. |
Epi-fluorescent illumination system | 5W high brightness LED. Enable selecting monochromatic or bichromatic LED for light source, every monochromatic LED wave band: Green (475nm~550nm) Blue( 410nm~490nm) |
Fluorescence filters: B(Blue) and G(Green). | |
Focus system | Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
Nosepiece | Quadruple(Backward ball bearing inner locating) |
Stage | Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
Transmitted illumination system | Abbe condenser NA.1.25 Rack & pinion adjustable |
Blue filter and Ground glass | |
Collector for LED illumination and integrated field diaphragm | |
3W high brightness white LED, brightness adjustable. |
Name | Sort/Technique parameter |
Eyepiece | Dividing eyepiece(field number:Ф22mm) 0.10mm/Div |
Objective | Infinity plan achromatic objective PL 60X/0.80(Work distance)：0.46 mm |
Infinity plan achromatic fluorescent objective PL FL10X/0.35(Work distance)：2.37 mm | |
Nosepiece | Quintuple(Backward ball bearing inner locating) |
Filter | Green filter |
Yellow filter | |
LED | Violet(380nm~415nm) |
Ultraviolet(320nm~380nm) | |
Fluorescent filters | V(Violet) |
UV(Ultraviolet) | |
CCD adapter | 0.4X |
0.5X | |
1X | |
0.5X with dividing 0.1mm/Div | |
Camera | DV-1 Video output(380/520 TV line) USB output (0.42 M pixel) |
DV-2 With USB output (1.3M,,3.0M 5.0M 10.0Mpixel) | |
DV-3 With video output(380/520 TV line) | |
Digital camera adapter | CANON(EF) NIKON( F) |
