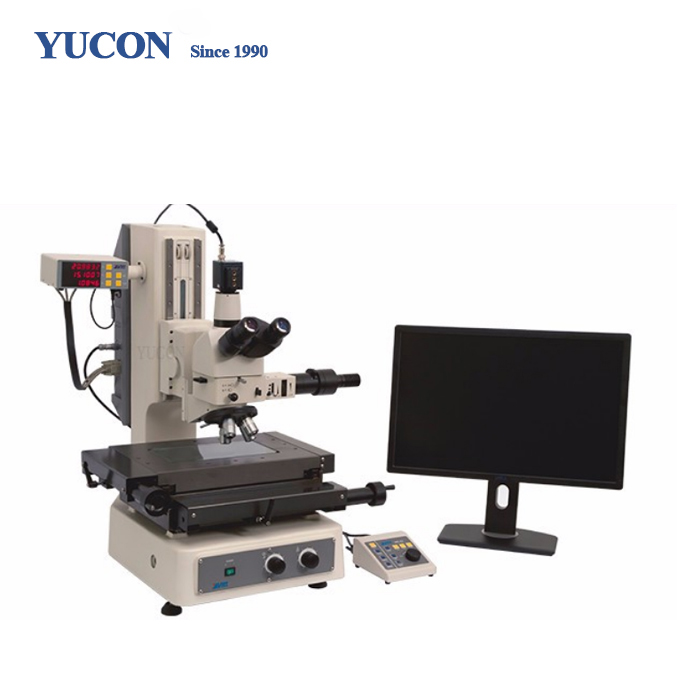

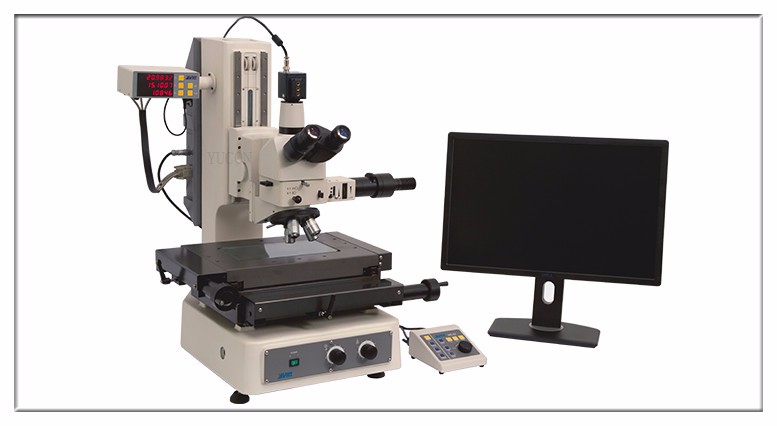

Model: SQM-FA
SQM - FA series has a broader scope of pattern, can satisfy the user the pursuit of better new measurement ability and improve the functional.
Offers a variety of loadable accessories, to meet the diverse needs of users.
This series have many prominent characteristics, including auxiliary focus function, excellent optical systems, high brightness LED lighting,
Integrating the high rigid and more outstanding function of the processor. In order to achieve the measurement task of today's most urgent need and initiative.
Main Specification:
Model | SQM-FA Technical Parameters |
Drawtube | Binocular,with standard camera port; crosshair recticle, Optical path exchange (observe/camera= 1/1 00) |
Observing image | Erect image |
Observing way | Bright field,simplepolarization |
Eyepiece with diopter adjustable | 10x/20mm,20x/ 16mm |
Objective | Standard with objective 5x,10x,20x,50x |
Focusing system | Z-axis motor control (quick,middle,slow) |
Light source | Transmitted LED illuminator,collimation light, Epi-LED lluminator,coaxial light |
Measuring range | 3008*200mm,200x 100mm or custom-made stage |
Zero setting switch | X,Y,Z axis |
Length measuring system | High precision digital display grating ruler |
Digital display counter | Minimum 0.5um,RS232C output |
Outside measurement | 380*705*725mm |
Measuring precision | X and Y: (3+L/200)um, L is measuring length (mm) |
Z-axis | Maximum travel range: 200mm |
Focusing way | Motor hand wheel control adj ustment |
