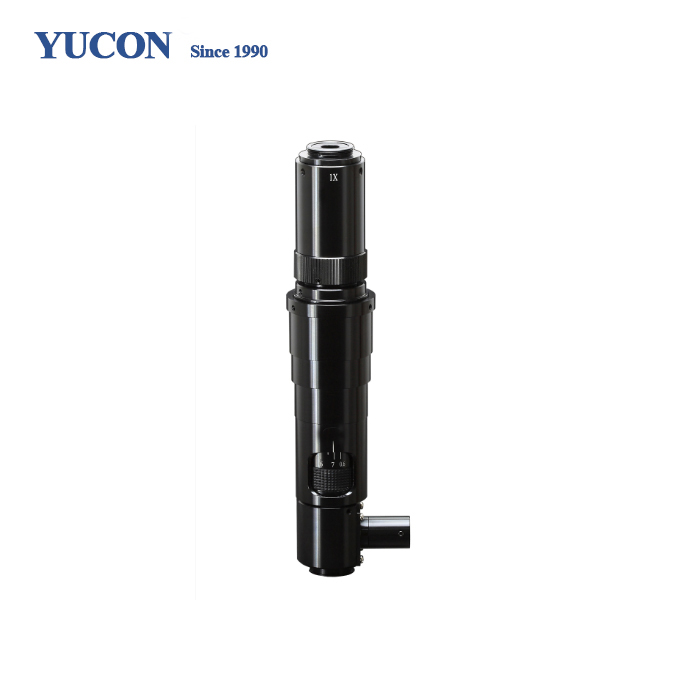

Model: MZDH0670
Product Description
◆ Large-scale zoom ratio 12:1，adopted with infinite farness optical systems design .
◆ Various CCD adapters, magnification objectives, coaxial illumination, ring illumination are available for optional
◆ Includes MZDH0670, MZDH0670C, MZDH0670-D,MZDH0670C-D, MZDH0670C-PL, MZDH0670-AZ
◆ Especially used in electric equipments, LCD, LED and etc. for digital image observation, inspection and measurement.
Detailed Images
Zoom range | 0.58X~7.0X |
Zoom ratio | 12:1 |
WD | 82mm（ 1X Objective） |
Illumination | Adjustable high brightness , long life LED coaxial illumination; LED ring illumination |
Main body and Holder matching dimension | Φ45mm |
Mount | Standard CS-mount (distance between the bearing surface and the CCD plane is 12.5mm) |
