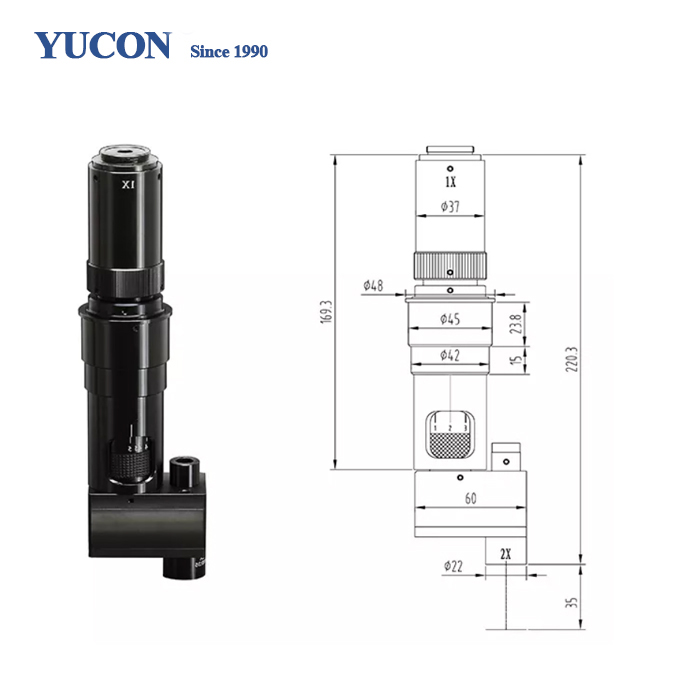

Model: MZDH0850-SA
Features:
1. Infinite farness and coaxial illuminate optical systems.
2. High-resolution and high definition.
3. Can observe different objects by using LED coaxial illumination or fiber optic illumination.
4. Wildly used in electric equipments, semi-conductor, LCD,LED and etc. for digital image observation, inspection and measurement.
Basic Specification
Part | Specification | MZDH |
Zoom body | Zoom range 0.75X~5X | √ |
Objectives | 0.3X | Optional |
0.5X | ||
0.75X | ||
1X | √ | |
1.5X |
Optional | |
2X | ||
CCD adapters | 0.3X | Optional |
0.4X | ||
0.5X | ||
0.67X | ||
1X | √ | |
1.5X | Optional | |
2X | ||
Illuminators | Coaxial illuminator: MLC1000 | √ |
Adjustable LED illuminator: MLR25 | Optional | |
Micrometer adapters | 1X stage micrometer adapter | |
Others | With detents at integer position |
Optional
|
With polarizer lens | ||
With fine-adjustable devicce | ||
Light path 180° transition | √ | |
Electromotion zoom | Optional | |
Holder and main body matching dimension | Φ45mm | √ |
Standard thread infinite farness metallographic | Nikon,Olympus,Mitutoyo | Optional |
"√": Standard equipment; "×": Without equipment" MagnificationNADOFResolutionDistortionFixed Dim.:Φ45mm Max compatible camera:1/2" CCD screw mount: 1 inch 32 button0.75X0.031.8mm11.2μm0.26%2.0X0.0670.30mm5.0μm0.31%5.0X0.0970.08mm3.5μm0.12% | ||
