Model: YCSP-8D2
Digital Biological microscope is widely used in biology, microbiology, immunology, and medical field particle structure, can be used in scientific research, universities, medical and epidemic prevention, using agriculture and animal husbandry departments, suitable for many people embrace and teaching research, operation is convenient, intuitive, elite optical technology, photoelectric conversion technology, LCD the screen technologies together, built-in digital module and mirror body integrated design. Shooting and storage and processing of the image through the mirror under the target position can be carried on the comparison and analysis of experimental data and realize the teaching data.

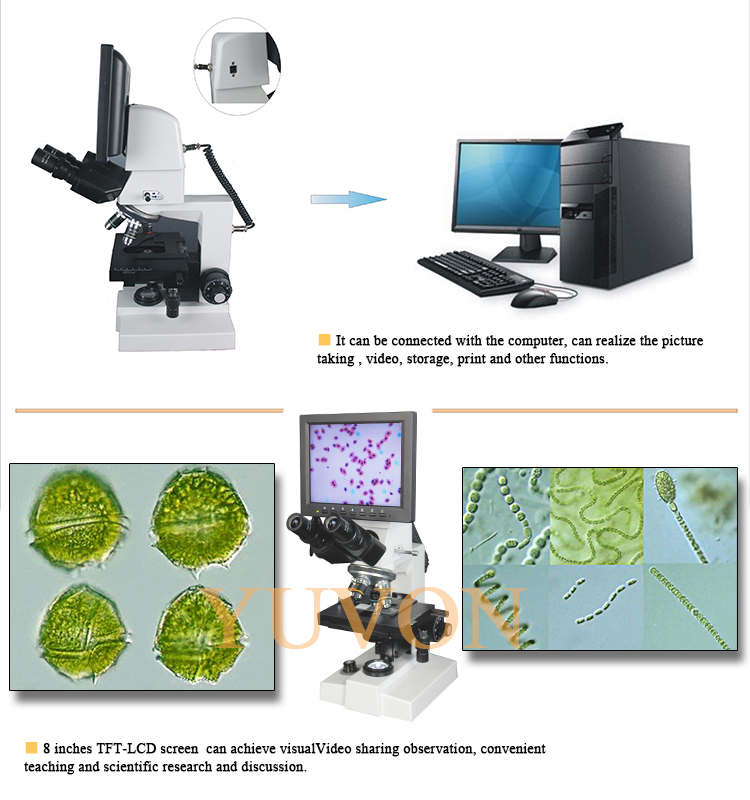

Dual output interface flexible and convenient to use, image display in computer and LCD TV on the study of the microscopic field from the conventional binocular observation, to the development of optical observation and video sharing, can take pictures, video, storage and printing. Choose 100X dry or water industry leading Professional high contrast flat field objective, more intimate, more environmental protection, convenience, research and teaching, greatly improve the efficiency of the work.
Basic Specification
Name | Specification |
Body | Compensation Binocular Viewing Body, Inclined 30º,Interpupillary Adjustable Distance: 55-75mm |
Eyepiece | WF10X(Viewing Field Diameter: ø18mm) |
Achromatic objective | 4X/NA0.1,10X/NA0.25,40X(S)/NA0.65,100X(S)oil/NA1.25 |
Stage | Size:160mm×130mm,Moving Range:76mm×50mm Vernier : 0.1mm |
Nosepiece | Nosepiece of four holes revolving on ball |
Condenser | Abbe Condenser:N.A.1.25,Elevating Range:15mm |
Focusing | Coaxial Coarse And Fine Focusing Adjustment,Focusing Range:10mm Division of Fine Focus Adjustment:0.002mm |
Illumination | 3W LED light (had a life span of 30 thousand hours)With Adjustable Brightness,Free Voltage :100V-240V. |
LCD Screen | 8 inches 4:3 TFT-LCD screen |
Image chip | SONY 1/3"CMOS ,Image display format: 2 mega-pixel |
Image pixel | 1600 ×1200 |
Frame Rate | 15(FPS) |
Legibility | Maximum; 800 line (horizontal) |

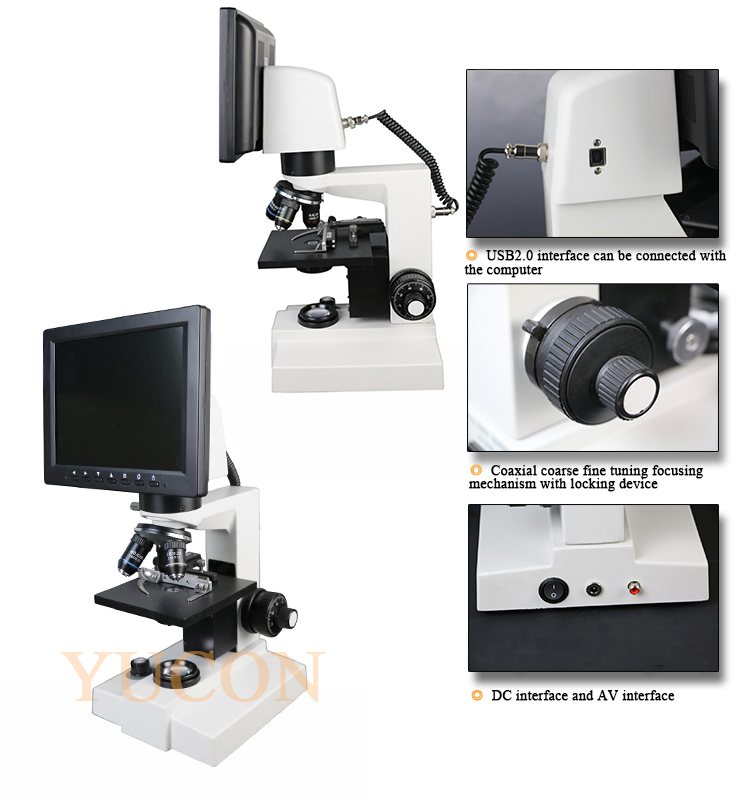

Digital interface
| High speed USB2.O data transmission, (1600*1200,800*600) drive-free, connected to PC,Digital image taking pictures, storing, recording . |
AV interface | CVBS Analog video output, (PAL/NTSC)Signal System, connected to TV |
Operating system
| Windows |
Monitor specifications :
Display Area | 8 inch 4:3 TFT-LCD Digital Panel |
Native Resolution | 800*600 |
Brightness | 250cd/m2 |
Signal input | VGA/AV/BNC |
Frequency | 60-75HZ |
Color system | PAL/NTSC |
Blacklight | CCFL two light |
Monitor size | 216X161X38mm |
Language | Chinese,English |
Power | 12V DC2A |
