Model: YCSP-2900
Product Description
Body: Binocular head, inclined 45° and rotates 360° for maximum working convenience, zoom objective magnification 0.7x~4.5x.
The range of both eyetubes with diopter adjustment ±5, interpupillary distance adjustment range from 55mm to 75mm.
Eyepieces: Wide-field eyepieces WF10x/20mm(pair)

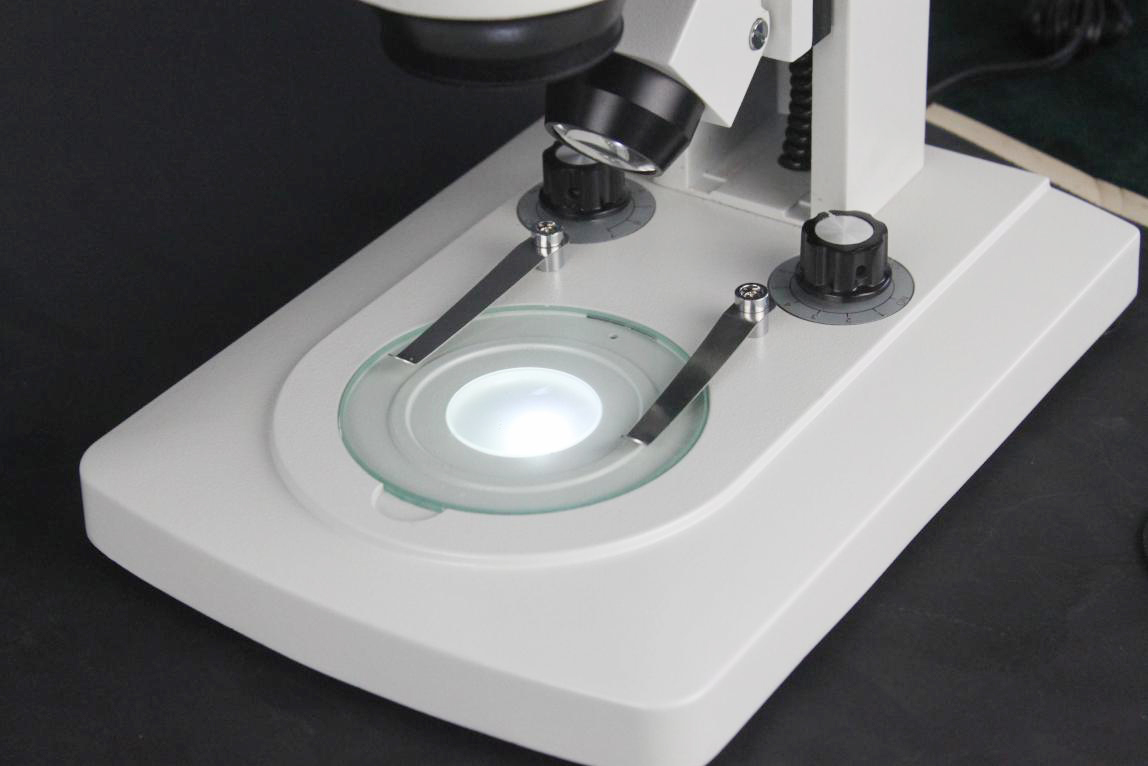

Stand: The range of adjusting the focus 135mm, the diameter of working stage Φ95mm, the diameter of working stage Φ95mm.
Item number:YCSP-2900
1.Optical system: Grino optical system
2.Zoom ratio: 1:6.5(0.7×~4.5×)
3.Microscope base: Binocular tubes inclined 45º,interpupillary distance adjustment range 52mm~75mm
4.Eyepiece: WF10×(ø20mm)
5.Objective: 0.7×~4.5×
6.Magnification: 7X-45X
7.Working distance: 95mm
8.Field of view: ø33mm~ø5.1mm

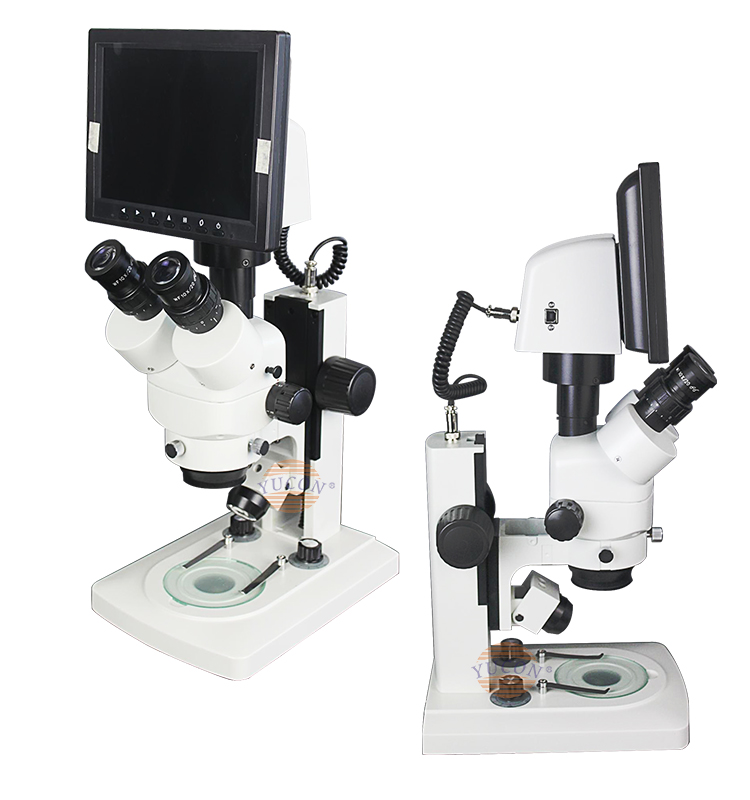

9.TFT-LCD 8inch LCD display screen,can be video and optical observation synchronization
10.Graphics chips: SONY 1/3"CMOS module, resolution ratio: 2.0mp
11.Digital connector: high speek USB2.0 data transmission
12.Vedio connectory: AV adapter(PAL/NTSC styple)
13. Optical observation in real time,digital image taking and processing,video and measurement.
14.Digital amplification up to 342 times (with 15inch display)
Basic Specification
Zoom ratio | 1:6.5 |
Objective zoom range | 0.7x~4.5x |
Eyepiece | SWF10X/20mm |
Working distance | 95mm |
Interpupillary distance adjustment range | 52mm~75mm |
Binocular Angle of View | Inclination of 45° or 60° |
Diopter adjustment | ± 5 diopter |
Optical Body Rotation | 360° |
Voltage input | 110V/60HZ or 220V/50HZ |
Optional attachments | |
Eyepieces | Auxiliary objective |
WF5x (Φ20mm) | 0.4x (W.D. 220mm) |
WF10x (Φ22mm) | 0.4x (W.D. 220mm) |
WF15x (Φ16mm) | 0.75x (W.D. 120mm) |
WF15x (Φ16mm) | 1.5x (W.D. 40mm) |
WF25x (Φ 12mm) | 2x (W.D. 25mm) |
LCD display screen specification:
Display area | 8inch 4:3digital screen TFT-LCD |
Optimum resolution | 800*600 |
Brightness | 250cd/m2 |
Signal input interface | VGA/AV/BNC |
The refresh rate | 60-75HZ |
Color standard | PAL/NTSC |
The screen backlight | CCFL Double light |
The case size | 216X161X38mm |
The menu language | In both Chinese and English |
