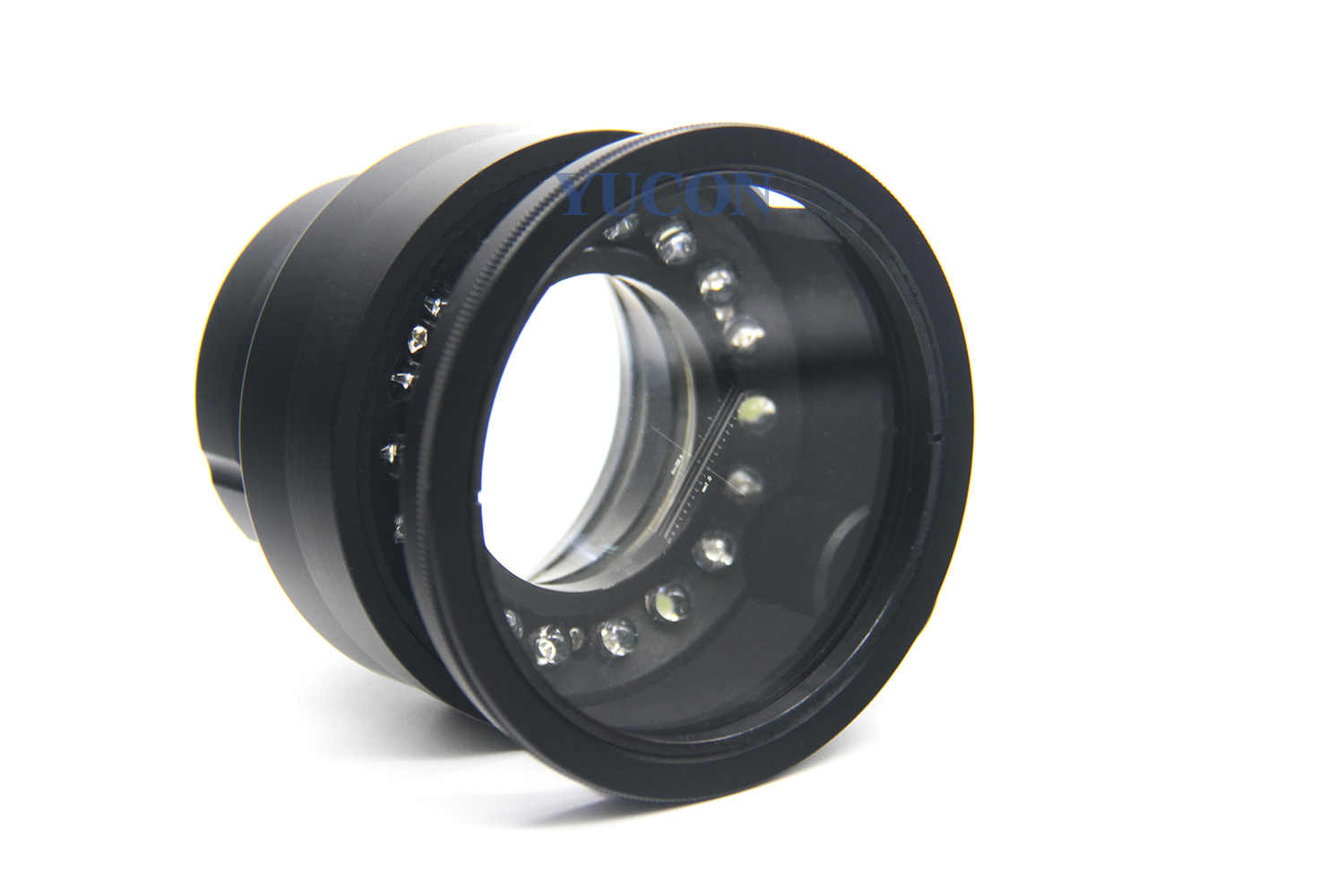

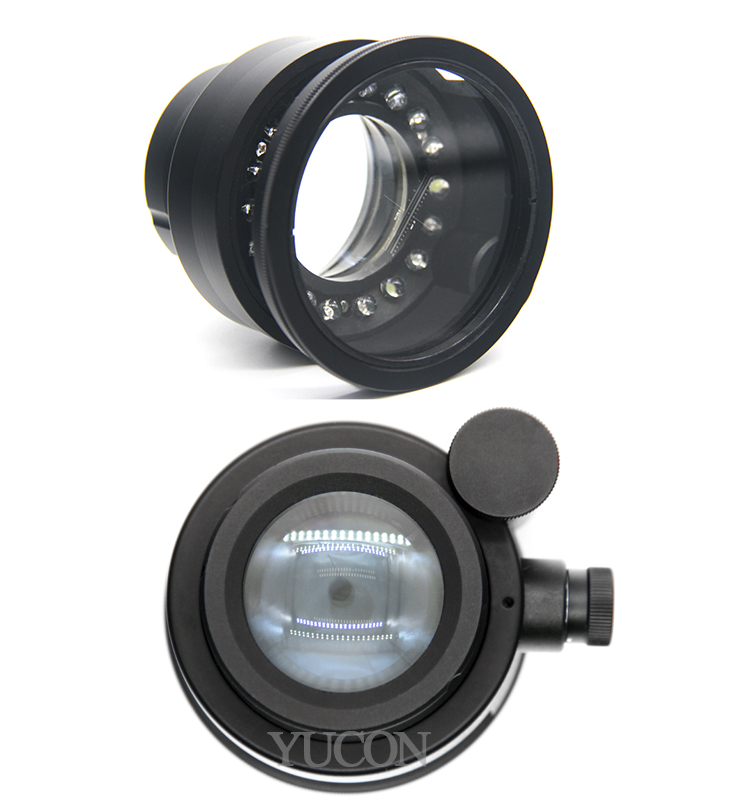

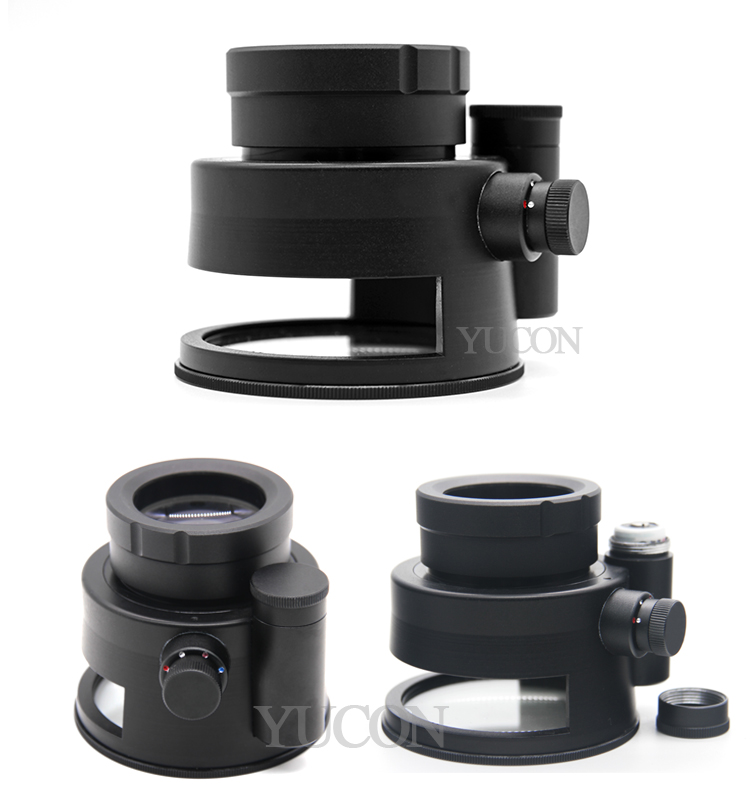

ML-63 6X Magnification Three Waveband Lighting Measuring Magnifier

Model: ML-63

Accessories: Standard

    ML63 is suitable for public security departments, procuratorial work, law court, banks, industrial and commercial circles, tax authority, postal service departments to check to the fingerprint, words, logo, seal, stripe streak, coin, stamps etc.

     It is also a ideal tool in microelectronic industry, light spinning, printing & dyeing, composing & printing, fine processing


1. It is an extra large field with extremely flat imaging over the entire working area.

2. Precision focus using instrument-grade spiral twist mechanism, which is similar to style found on expensive binocular.

3. It is use high intensity light, long life of UV, blue light and white LED light

4. Fully coated optical glass system and includes reticle


Basic Specification

Magnification

6X

Scale reticle

Working distance

37mm

Field of view

40mm

Eye lens diameter

42mm

Focus adjustment

Illumination

high brightness LED bulbs (White, Blue, UV)

Power

CR2-3V (one piece),  over 150hours

Lens systems

2 lens with 4 achromatic lenses

Overall height

87mm

Overall diameter

83mm

Weight

400g
