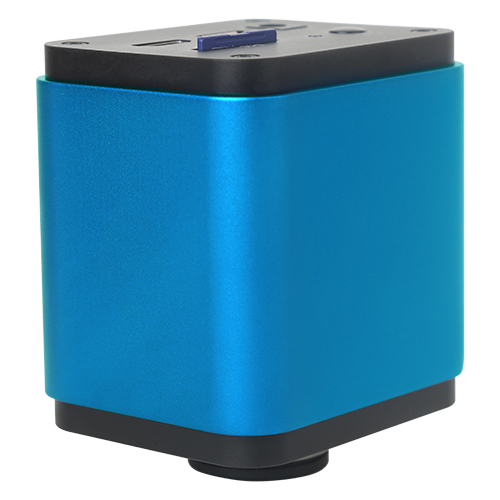

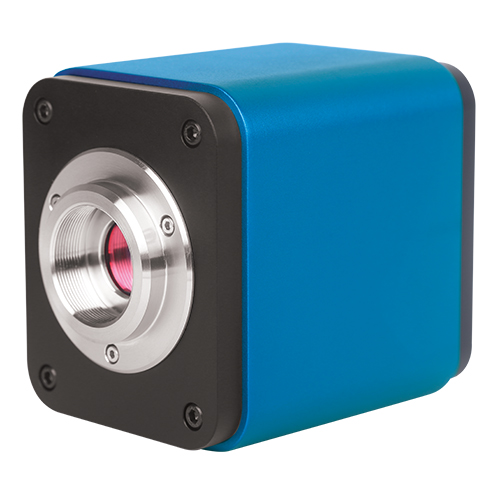

Model: YXCAM1080PHA
Accessories: Standard/Optional
YXCAM1080PHA is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Aptina CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.
For HDMI out, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image,play the video ital.
For USB2.0 out,unplug the mouse and plug in the USB2.0 cable to the camera and computer, then the videostream can be transfer to computer with the advanced software.You can control the camera, process the image as 's other USB series camera.
1. All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
2. Simultaneous HDMI & USB out;
3. CNC precision machining shell;
4. Built-in mouse control;
5. Built-in image capture & video record to SD card;
6. Built-in camera control panel, including exposure(manual/auto)/gain,white balance(lockable), color adjustment, sharpness and denoising control;
7. Built-in toolbar including zoom, mirror, comparison, freeze,cross, browser functions;
8. Built-in image & video browsing, display & play;
10.Ultra-Fine color engine with perfect color reproduction capability(USB);
11.With advanced video & image processing application, which including professional image processing such as 2D measurement,HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
12. Support standard UVC for Windows/Linux/Mac(USB);
Basic Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YXCAM1080PHA | 1080P/Sony IMX236(C) | 2.8x2.8 | 510 mv with 1/30s | 30@1920x1080 | 1x1 | 0.1ms~999ms |
Interface & Button Functions | |||

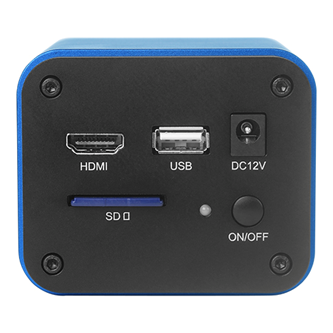

| USB | USB Camera or USB Mouse | |
HDMI | HDMI Output | ||
DC12V | 12V Power in | ||
SD | SD Card Slot | ||
ON/OFF | Power On/Off Switch | ||
LED | Power On Indicator | ||
Other Specification for HDMI Output | |||
UI Operation | With USB Mouse | ||
Image Capture | High Speed in SD Card | ||
Video Record | 1080P 30fps in SD Card | ||
Camera Control Panel | Including Exposure, Gain, White Balance, Color | ||
Toolbar | Including Zoom, Mirror, Comparison, Freeze, | ||
Other Specification for USB Output | |||
White Balance | Auto White Balance | ||
Color Technique | Ultra-Fine Color Engine (USB) | ||
Capture/Control SDK | Standard UVC for Windows/Linux/Mac(USB) | ||
Recording System | Still Picture or Movie (USB) | ||
Software Environment (for USB2.0 Connection) | |||
Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) | ||
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||
Memory: 4GB or More | |||
USB Port: USB2.0 High-speed Port | |||
Display: 19”or Larger | |||
CD-ROM | |||
Operating Environment | |||
Operating Temperature(in Centidegree) | -10~ 50 | ||
Storage Temperature(in Centidegree) | -20~ 60 | ||
Operating Humidity | 30~80%RH | ||
Storage Humidity | 10~60%RH | ||
Power Supply | DC 12V/2A Adaptor | ||
Overall Dimensions | |||
Width x Depth x Height | 78mm (3.07”) x 70mm (2.76”) x 92mm (3.62”) | ||
Shipping Weight | 0.47kg (1.0lbs) | ||
Optional Accessory | |||
H | Adjustable | C-Mount to Dia.23.2mm Eyepiece Tube | 108001/AMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108008/ATA037 | ||
I | Fixed | C-Mount to Dia.23.2mm Eyepiece Tube | 108005/FMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||
Note： For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
J | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
K | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
L | Calibration Kit | 106011/TS-M1(X=0.01mm/100Div.)； | |
M | SD Card(4G or 8G) | ||
