Model:
YXCAM1080PHB
YXCAM1080PHD
YXCAM1080PHE
Accessories: Standard/Optional

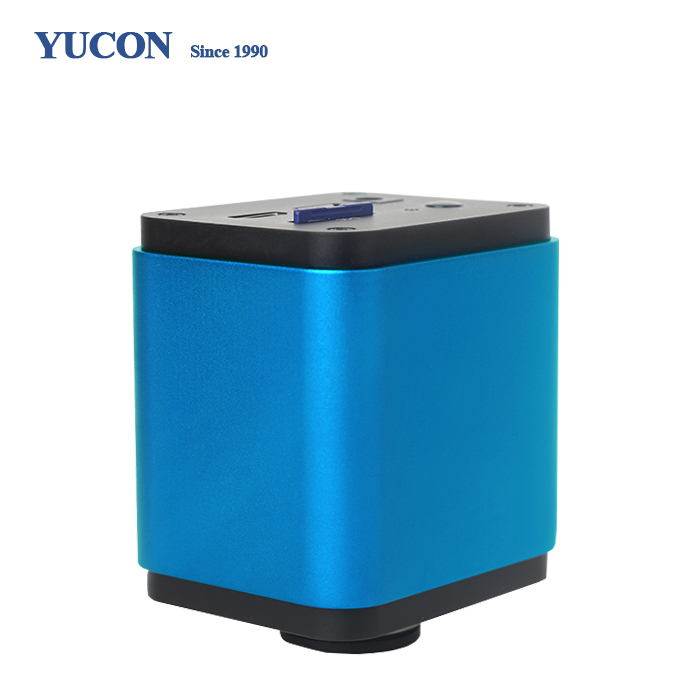

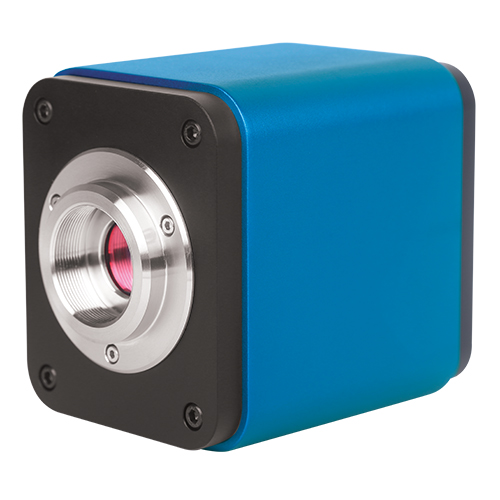

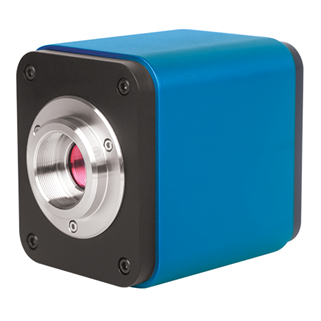

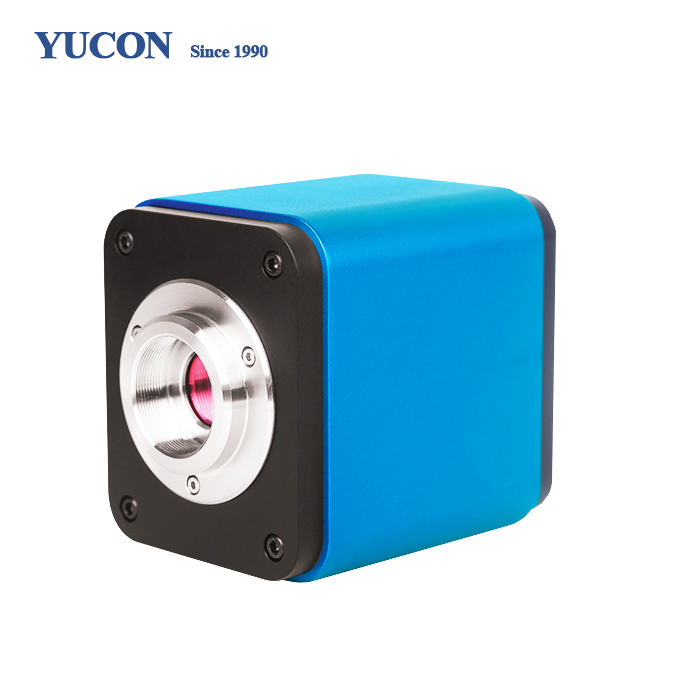

YXCAM1080PHD is a multiple interfaces (HDMI+WIFI+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Aptina CMOS sensor as the image-picking device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.
The YXCAM1080PHD’s basic characteristic is as follows:
1. All in 1( HDMI+WIFI) C-mount camera with Sony high sensitivity CMOS sensor;
2. For HDMI application,with built-in multiple-language YXCamView software.The camera characteristic can be controlled by YXCamView through the USB mouse. The other basic processing and choosing can also be realized by the YXCamView.;
3. 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
4. For HDMI application, 2.0M resolution image(1920*1080 YXCAM1080PHD) can be captured and saved for browsing; For video, 1080P video stream(as format) can be captured and saved;
5. With the USB WIFI adapter, the YXCAM1080PHD can be used as WIFI camera, the ToupView/ToupLite advanced image processing software is used to view the video and capture image. support plug and play application;
6. Ultra-Fine color engine with perfect color reproduction capability(WIFI);
7. With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement,HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
8. YXCAM1080PHD can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

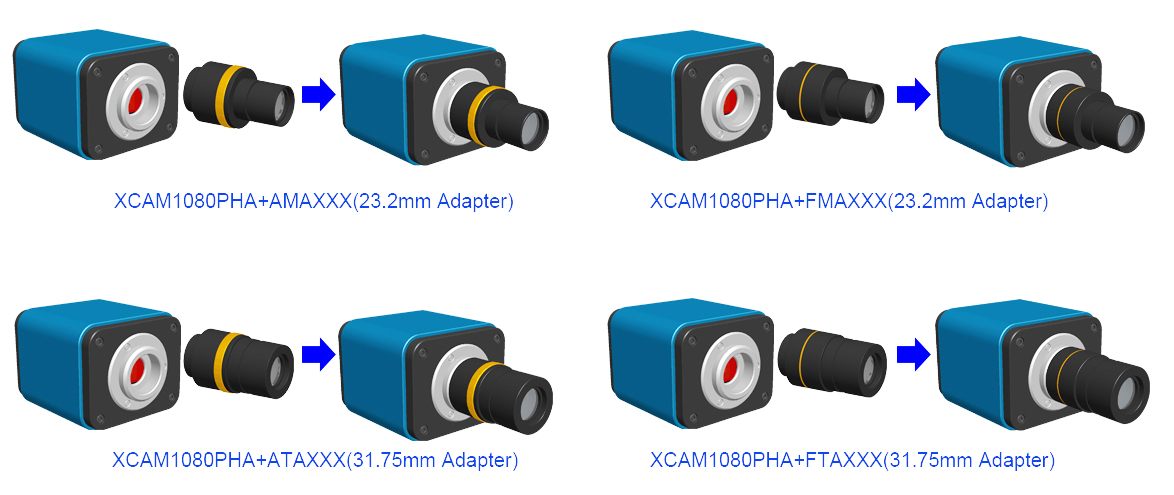

Extension of YXCAM1080PHD with Microscope or Telescope Adaptor
Extension | Picture | |
C-mount Camera |  | Machine vision; Medical imaging; |
Microscope Camera |  | |
Telescope Camera: | ||
Basic Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YXCAM1080PHB | 1080P/5M/ | 2.4x2.4 | 425 mv with 1/30s | 30@1920x1080 | 1x1 | 0.03ms~918ms |
YXCAM1080PHD | 1080P/2M/ | 3.75x3.75 | 1120 mv with 1/30s | 30@1920x1080 | 1x1 | 0.06ms~918ms |
YXCAM1080PHE | 1080P/2M/ | 5.86x5.86 | 1016 mv with 1/30s | 30@1920x1080 | 1x1 | 0.043ms~1000ms |
GS: Global Shutter, C:Color

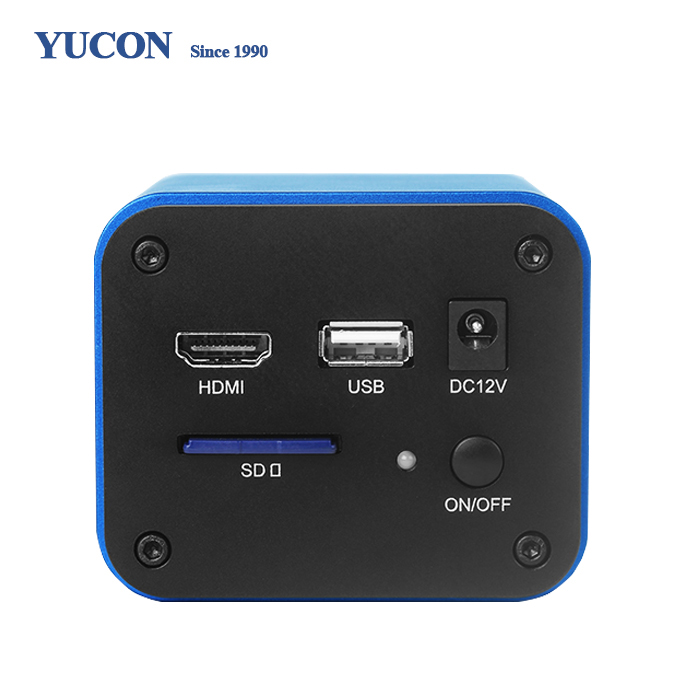

Interface & Button Functions | |||
| USB | USB Camera or USB Mouse | |
HDMI | HDMI Output | ||
DC12V | 12V Power in | ||
SD | SD Card Slot | ||
ON/OFF | Power On/Off Switch | ||
LED | Power On Indicator | ||
Other Specification for HDMI Output | |||
UI Operation | With USB Mouse | ||
Image Capture | JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) (XAM1080PHB) | ||
Video Record | ASF Format 1080P 30fps in SD Card | ||
Camera Control Panel | Including Exposure, Gain, White Balance, Color | ||
Toolbar | Including Zoom, Mirror, Comparison, Freeze, | ||
Other Specification for WiFi Output | |||
UI Operation | ToupView or ToupLite on Windows/Linux/OSX/Android Platform | ||
WiFi Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | ||
Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | ||
White Balance | Auto White Balance | ||
Color Technique | Ultra-Fine Color Engine (WiFi) | ||
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi) | ||
Recording System | Still Picture or Movie (WiFi) | ||
Software Environment (for USB2.0 Connection) | |||
Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) | ||
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||
Memory: 4GB or More | |||
USB Port: USB2.0 High-speed Port | |||
Display: 19” or Larger | |||
CD-ROM | |||
Operating Environment | |||
Operating Temperature(in Centidegree) | -10~ 50 | ||
Storage Temperature(in Centidegree) | -20~ 60 | ||
Operating Humidity | 30~80%RH | ||
Storage Humidity | 10~60%RH | ||
Power Supply | DC 12V/2A Adaptor | ||
Overall Dimensions | |||
Width x Depth x Height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) | ||
Shipping Weight | 0.47 kg (1.0lbs) | ||

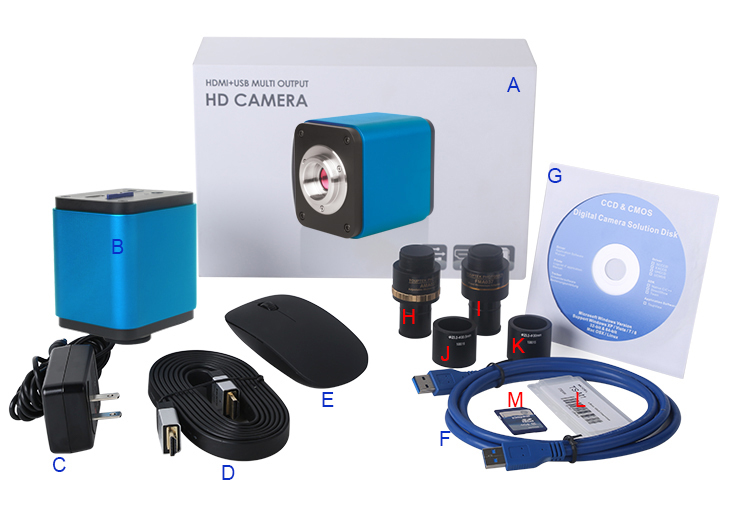

Optional Accessory | |||
H | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube | 108001/AMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108008/ATA037 | ||
I | Fixed lens adaptor | C-Mount to Dia.23.2mm Eyepiece Tube | 108005/FMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||
Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
J | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
K | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
L | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
M | SD Card(4G or 8G) | ||
