Model:
YXCAM1080PHB
YXCAM1080PHD
YXCAM1080PHE
Accessories: Standard/Optional

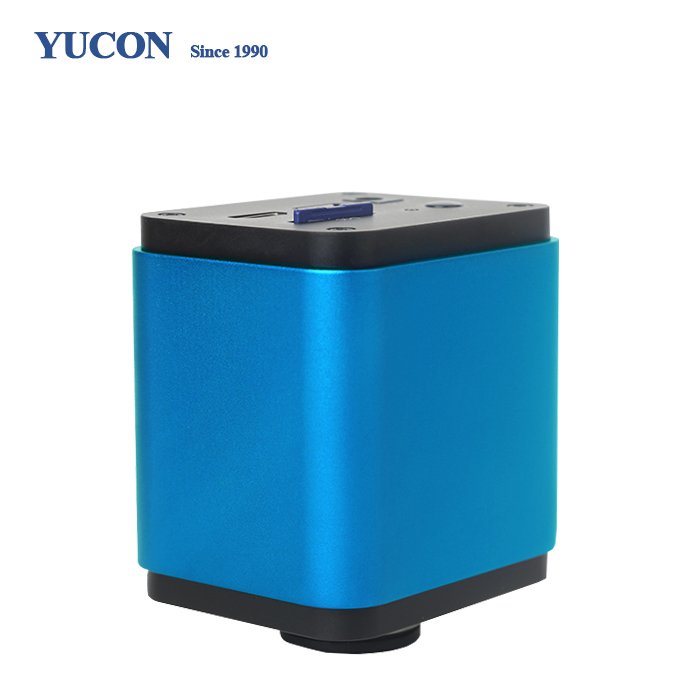

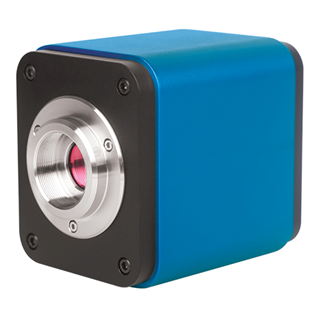

XCAM1080PHB/PHD/PHE HDMI+WiFi+SD Card All in 1 CMOS Camera
XCAM1080PHB/PHD/PHE is a multiple interfaces (HDMI+WiFi+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.
1. All in 1( HDMI+WIFI+SD card) C-mount camera with high sensitivity CMOS sensor;
2. Simultaneous HDMI & WIFI output;
3. Built-in mouse control;
4. Built-in image capture & video record to SD card;
5. Built-in camera control panel for mouse control;
6. Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions;
7. Built-in image & video browsing,display & play;
8. Ultra-Fine color engine with perfect color reproduction capability(USB);
9. With advanced video & image processing application ToupView, ;
10. Support standard SDK for Windows/Linux/macOS/Android(USB);
11. CNC shell molding design;
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YXCAM1080PHB | 1080P/5M/ | 2.4x2.4 | 425 mv with 1/30s | 30@1920x1080 | 1x1 | 0.03ms~918ms |
YXCAM1080PHD | 1080P/2M/ | 3.75x3.75 | 1120 mv with 1/30s | 30@1920x1080 | 1x1 | 0.06ms~918ms |
YXCAM1080PHE | 1080P/2M/ | 5.86x5.86 | 1016 mv with 1/30s | 30@1920x1080 | 1x1 | 0.043ms~1000ms |
GS: Global Shutter, C:Color

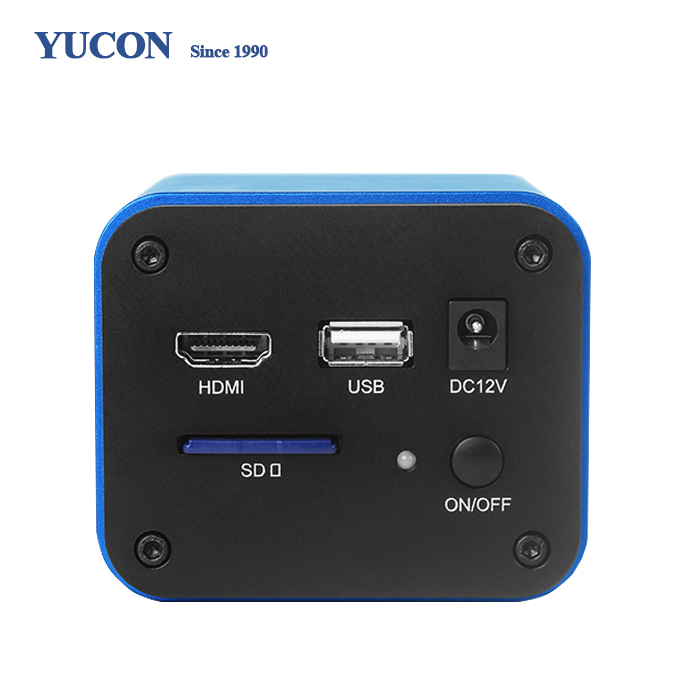

Interface & Button Functions | |||
| USB | USB Camera or USB Mouse | |
HDMI | HDMI Output | ||
DC12V | 12V Power in | ||
SD | SD Card Slot | ||
ON/OFF | Power On/Off Switch | ||
LED | Power On Indicator | ||
Other Specification for HDMI Output | |||
UI Operation | With USB Mouse | ||
Image Capture | JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) (XAM1080PHB) | ||
Video Record | ASF Format 1080P 30fps in SD Card | ||
Camera Control Panel | Including Exposure, Gain, White Balance, Color | ||
Toolbar | Including Zoom, Mirror, Comparison, Freeze, | ||
Other Specification for WiFi Output | |||
UI Operation | ToupView or ToupLite on Windows/Linux/OSX/Android Platform | ||
WiFi Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | ||
Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | ||
White Balance | Auto White Balance | ||
Color Technique | Ultra-Fine Color Engine (WiFi) | ||
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi) | ||
Recording System | Still Picture or Movie (WiFi) | ||
Software Environment (for USB2.0 Connection) | |||
Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) | ||
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||
Memory: 4GB or More | |||
USB Port: USB2.0 High-speed Port | |||
Display: 19” or Larger | |||
CD-ROM | |||
Operating Environment | |||
Operating Temperature(in Centidegree) | -10~ 50 | ||
Storage Temperature(in Centidegree) | -20~ 60 | ||
Operating Humidity | 30~80%RH | ||
Storage Humidity | 10~60%RH | ||
Power Supply | DC 12V/2A Adaptor | ||
Overall Dimensions | |||
Width x Depth x Height | 78 mm (3.07”) x 70 mm (2.76”) x 92mm (3.62”) | ||
Shipping Weight | 0.47 kg (1.0lbs) | ||
Optional Accessory | |||
H | Adjustable | C-Mount to Dia.23.2mm Eyepiece Tube | 108001/AMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108008/ATA037 | ||
I | Fixed | C-Mount to Dia.23.2mm Eyepiece Tube | 108005/FMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||
Note： For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
J | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
K | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
L | Calibration Kit | 106011/TS-M1(X=0.01mm/100Div.)； | |
M | SD Card(4G or 8G) | ||
