Model: YXCAM720PHB/YXCAM0720PHC
Accessories: Standard/Optional

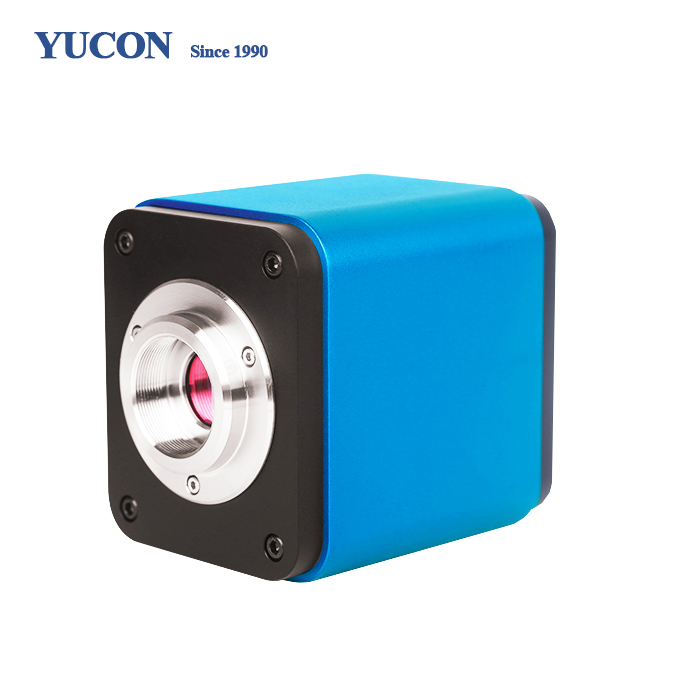

Through standard HDMI interface to stream the video to displayer or HDTV. Easy connecting to other equipment on the production line with the C-mount optical interface.
High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
1280 × 720 (720P) resolutions to match the current high-definition displayer on the market.
YXCAM720KPB/PHC embedded YXCamView based on the Qt platform. The camera characteristic can be controlled by the mouse. The other basic processing and choosing can also be realized by the YXCamView.
For the above characteristic and technical features, which utmost meet various applications and widely apply to industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
|

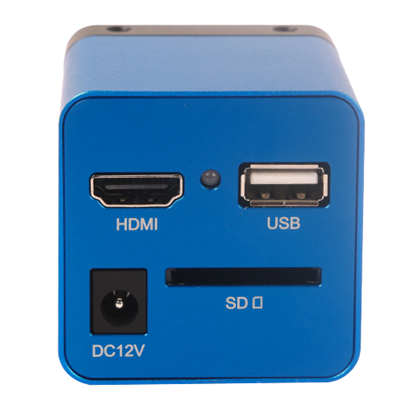

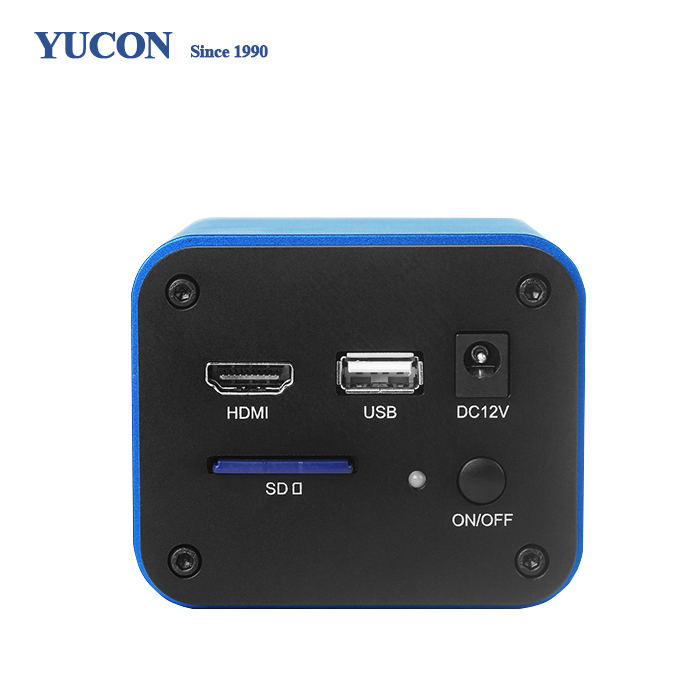

The Back of the YXCAM720PHB/PHC |
· HDMI：The HDMI output port connected to the HDMI diaplayer;
· USB：USB mouse;
· DC 12V：Power in 12V/1A；
· LED: The blue LED indicator;
· SD：SD card slot;
YXCamView for YXCAM720PHB/PHC
Move mouse to the bottom of the HDMI displayer, the bottom toolbar will be available. The function of each toolbar buttons are described as follows:
|

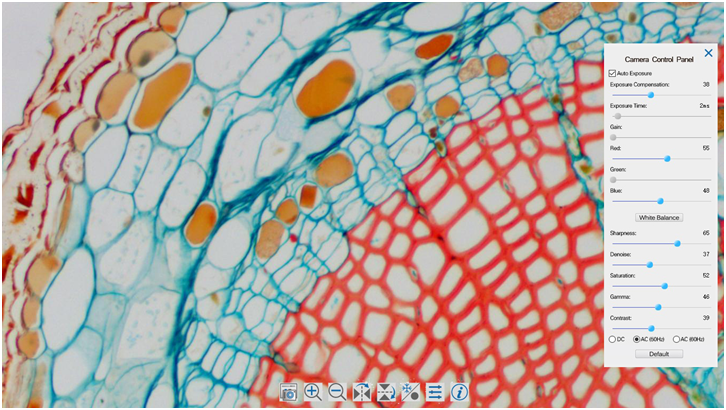

The GUI of the embeded camera control panel of YXCamView in YXCAM720PHB/PHC |
|

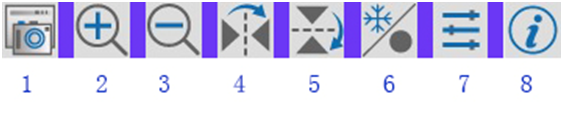

YXCamView toolbar for YXCAM720KPB/PHC |
· 1: Image Capture
· 2：Digital Zoom In
· 3：Digital Zoom Out
· 4：Horizontal Flip
· 5：Vertical Flip l
· 6：Video Freez /Cancel Video Freeze
· 7：Display/Hide the Camera Control Panel
· 8：Display the XCamView Version Information
Dimension of YXCAM720PHB/PHC Camera

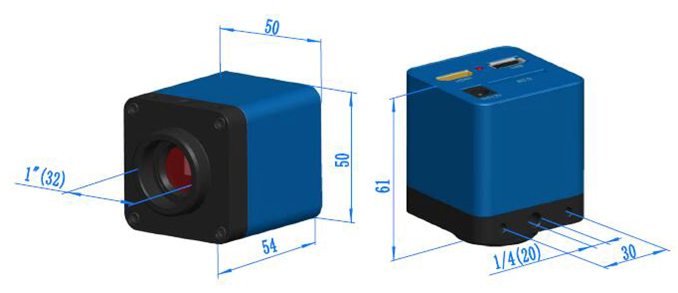

Installation drawings(Click to enlarge). The YXCAM0720KPB HDMI CMOS camera body, made from tough, aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions. |
|
Dimension for YXCAM720PHB/PHC Camera |
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YXCAM720PHB | 720P/1.2M/AR0130(C) | 3.75x3.75 | 6.5 V/lux-sec | 30@1280x720 | 1x1 | 0.21ms~2000ms |
YXCAM0720PHC | 720P/2M/IMX322(C) | 2.8x2.8 | 510mv with 1/30s (G Sensitivity) | 30@1280x720 | 1x1 | 0.06ms~1900ms |
Camera Interface | |
HDMI | HDMI Output Port |
USB | USB Mouse for XCamView Control |
DC12V | Power Input Slot |
SD | SD Card Slot |
Overall Dimensions | |
Width x Depth x Height | 50 mm (1.97”) x 50 mm (1.97”) x 61mm (2.4”) |
Shipping Weight | 0.47kg (0.55 lbs) |
Operating Environment | |
Operating Temperature(in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V/1A Adapter |
Optional Accessories | |
Lens | C-mount Lens |
Cable | HDMI Cable |
Memory Card | SD Card |
Mouse | USB mouse/USB Wireless Mouse |
Optional Accessory | |||
F | Adjustable | C-Mount to Dia.23.2mm Eyepiece Tube | 108001/AMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108008/ATA037 | ||
G | Fixed | C-Mount to Dia.23.2mm Eyepiece Tube | 108005/FMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||
Note： For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | Calibration Kit | 106011/TS-M1(X=0.01mm/100Div.)； | |
K | SD Card(4G or 8G) | ||
