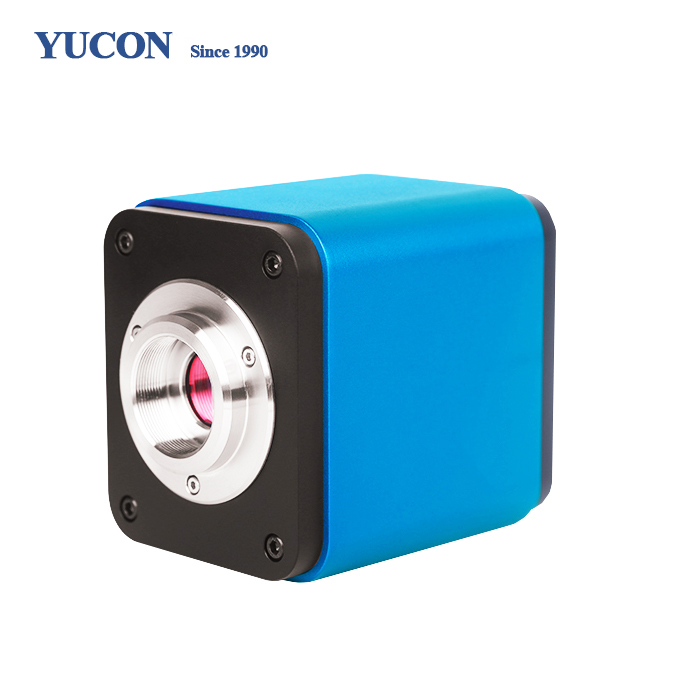

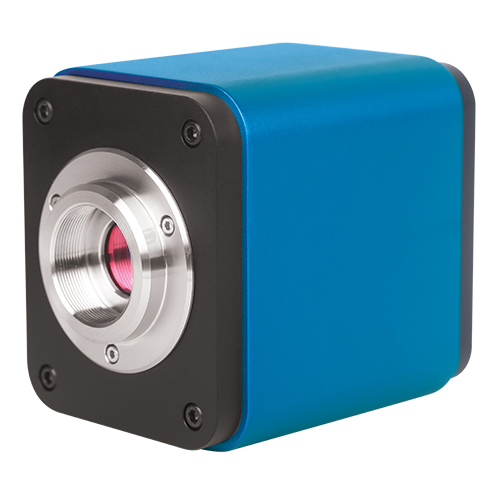

Model: YALPHA1080A
Accessories: Standard/Optional
YALPHA1080 series is a multiple interfaces (HDMI+USB2.0+SD card) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+USB2.0 are used as the data transfer interface to HDMI display or computer.
For HDMI camera mode, The XCamView will be loaded and the Camera Control Panel+ Measurement Toolbar and Synthesis Camera Control Toolbar are overlaid on the HDMI screen when the mouse move to the related region, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video and perform the measurement ital.
For USB Video camera mode, plug in the micro USB host cable to the camera’s USB Videoport and computer USB port, then the video stream can be transfer to computer with the advanced software. You can control the camera, process the video and image as other USB series camera.
The YALPHA1080 series’ basic characteristics are as follows:
For HDMI output:
1. All in 1( HDMI+USB+SD card) C-mount camera with Sony high sensitivity CMOS sensor;
2. Simultaneous HDMI & USB output;
3. Built-in mouse control;
4. Built-in image capture & video record to SD card;
5. Built-in camera control panel, including exposure(manual/auto)/gain, white balance(lockable), color adjustment, sharpness control;
6. Built-in video and image measurement;
7. Built-in toolbar including zoom, mirror, comparison, freeze, cross, browser functions;
For USB Video mode:
1. Ultra-Fine color engine with perfect color reproduction capability(USB);
2. With advanced video & image processing application, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
3. Support standard UVC protocol for Windows/Linux/Mac(USB);
4. CNC precision machining shell;
5. Built-in image & video browsing, display & play;
6. Real time clock(RTC)
The possible applications of YALPHA1080 series are as follows:
1. Scientific research, education (teaching, demonstration and academic exchanges);
2. Digital laboratory, medical research;
3. Industrial visual (PCB examination, IC quality control, mechanical part measurement);
4. Medical treatment (pathological observation);
5. Food (microbial colony observation and counting);
6. Aerospace, military (high sophisticated weapons);
Basic Specification
Order Code | Sensor&Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
YALPHA1080A | 1080P/Sony IMX290(C) | 2.9x2.9 | 1300mv with 1/30s 0.15mv with 1/30s | 60@1920X1080P (HDMI) (USB) | 1x1 | 0.036ms ~8s |
C:Color; M:Monochrome | ||||||
Data of YXCAM1080
Interface & Button Functions | ||||
 | USB | USB Mouse for Control pf the HDMI Mode | ||
HDMI | HDMI Out | |||
DC12V | 12V/1A Power in | |||
SD | SD Card Slot | |||
ON/OFF | Power On/off Switch | |||
Other Specification for HDMI Out | ||||
UI Operation | With USB Mouse for HDMI Mode | |||
Image Capture | High Speedin SD Card(8G) | |||
Video Record | 1080P 26fps in SD Card(8G, AVI Format in SD Card) | |||
Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | |||
Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function | |||
Other Specification forUSB Ouut | ||||
White Balance | Auto White Balance | |||
Color Technique | Ultra-FineTMColor Engine (USB2.0) | |||
Capture/Control API | Standard UVC for Windows/Linux/Mac(USB2.0) | |||
Recording System | Still Picture or Movie (HDMI or USB) | |||
Software Environment (for USB2.0 Connection) | ||||
Operating System | Microsoft® Windows®XP/ Vista / 7 / 8 / 8.1(32 & 64 bit) OSx(Mac OS X) Linux | |||
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |||
Memory:4GB or More | ||||
USB Port:USB2.0 High-speed Port | ||||
Display:19” or Larger | ||||
CD-ROM | ||||
Operating Environment | ||||
Operating Temperature(in Centidegree) | -10~ 50 | |||
Storage Temperature(in Centidegree) | -20~ 60 | |||
Operating Humidity | 30~80%RH | |||
Storage Humidity | 10~60%RH | |||
Power Supply | DC 12V/1A Adapter | |||

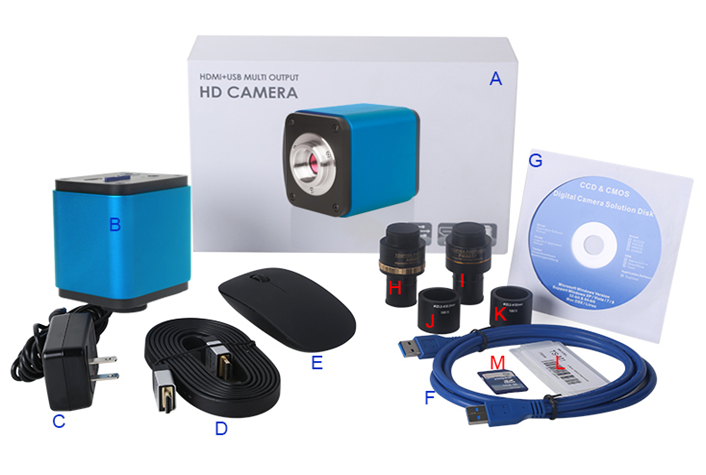

Optional Accessory | |||||
H | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube | 108001/AMA037 | ||
C-Mount to Dia.31.75mm Eyepiece Tube | 108008/ATA037 | ||||
I | Fixed lens adaptor | C-Mount to Dia.23.2mm Eyepiece Tube | 108005/FMA037 | ||
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||||
Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||||
J | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||||
K | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||||
L | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |||
M | SD Card(4G or 8G) | ||||
| |||||
