Model: YTPHD1080PA
YTPHD1080PA is born with’s YXCAM series HDMI camera and can be used for high definition display. It adopts Panasonic IPS LCD panel(Super TFT) to guarantee the wide view angle and high contrast. Together with YXCAM HDMI camera, HD1080PA could make the imaging & display solution simple, flexible and intuitive. Outstanding performance of HD1080PA helps YXCAM HDMI camera reach fast frame rate and excellent color.
The YTPHD1080PA’s basic characteristic is as follows:
1. HDMI monitor;
2. Panasonic IPS LCD panel;
3. True 1080P;
4. High contrast ratio up to 1000:1;
5. LED backlight with 50000 hours long life time;
6. 11.6 inch active area;

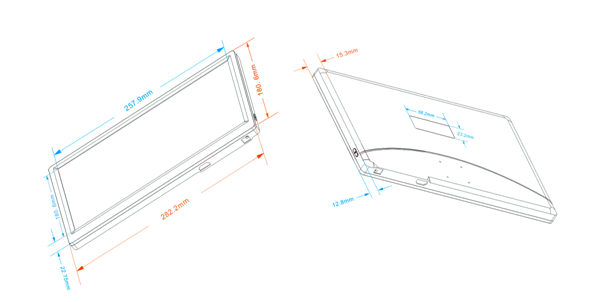

Dimension of YTPHD1080PHA
|
Order Code | Active Area(Inch) | Video Fomat | Resolution | Contrast | Color(Million) | View Angle |
YTPHD1080PA | 11.6 | HDMI | 1080P | 1000:1 | 16.7 | IPS Full View |
Basic Performance | |
LCD Panel | Panasonic IPS LCD Screen(Super TFT) |
Input Video Format | HDMI |
Native Resolution | 1920 x 1080 |
Display Type | 16:9 Ratio 11.6 Inch Active Matrix Super TFT LCD |
Typical Contrast Ratio | 1000:1 |
Colors | 16.7 Million |
Viewing Angle(L/R/U/D) | IPS Full Vew |
Active Display Area | 258mm(W) × 145mm(H) |
Pixel Pitch | 0.134(W) X 0.134(H) mm |
Brightness | 350 cd/ sq.m ;400cd sq.m / Optional |
Backlight | LED Backlight， 5000 hours |
Outline Parameter | |
Color | Black |
Dimension | 281(L)*179(H)*15.6(W) mm |
Weight | 400g |
Operating Environment | |
Operating Temperature | -15 Degree~55 Degree |
Humidity Non Condensing | Operating:10%-90%, Storage: 5%-90% |
Synchronization Range | 30-80 KHz Horizontal, 55-75 Hz Vertical |
Power Supply | AC110V-220V /DC12V(1A ) |
Power Consumption | Max 12W |
