Model:
YUHCCD05200KPA
YUHCCD05100KPA
YUHCCD05000KPA
YUHCCD03100KPB
YUHCCD02000KPA
YUHCCD01400KPA/YUHCCD01400KPB/YUHCCD01400KMB
YUHCCD00800KPA
Accessories: Standard/Optional

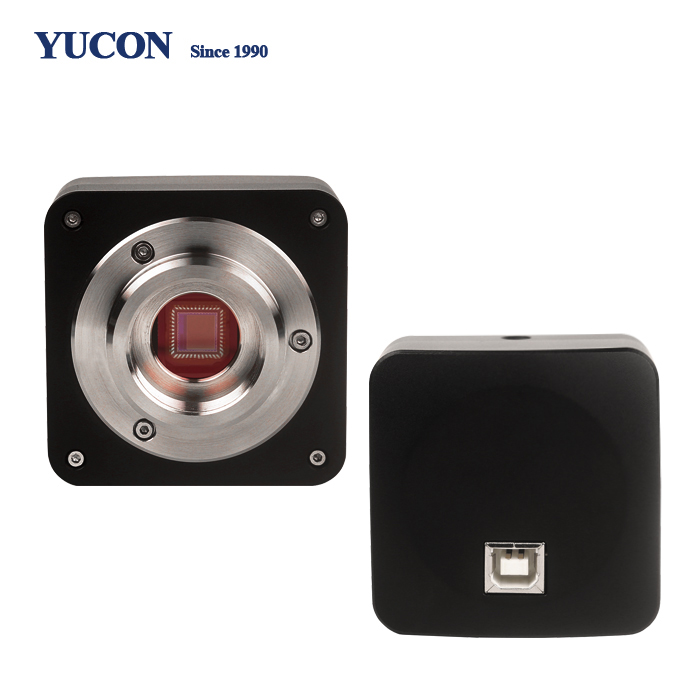

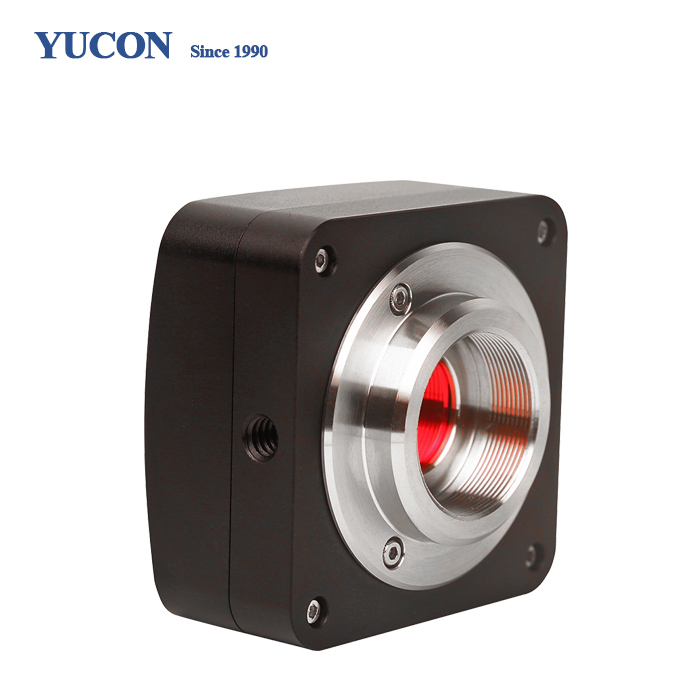

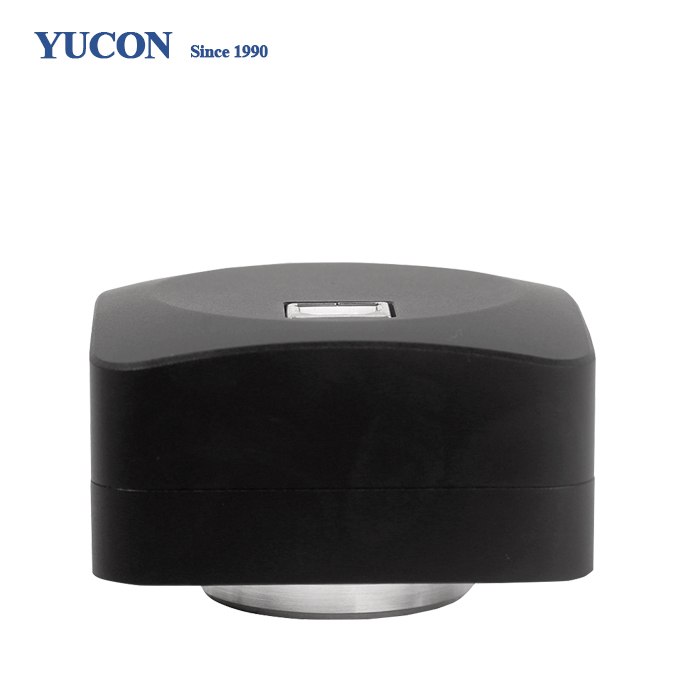

YUHCCD is an ultra-high performance Super HAD CCD camera.
The camera adopts Sony Super HAD CCD sensor as the image-picking device;
The Super HAD CCD is a version of Sony's high performance CCD HAD (Hole-Accumulation Diode) sensor with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation.
USB2.0 is used as the data transfer interface.
YUHCCD comes with advanced video & image processing application;
Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The YUHCCD can be widely used in bright field light environment and microscope image capture and analysis.
The YUHCCD characteristic is as follows:
1. Standard C-Mount camera with SONY Super HAD CCD 0.8M ~ 5.2M;
2. USB2.0 interface ensuring high speed data transmission;
3. With advanced video & image processing application;
4. Providing Windows/Linux/Mac OS multiple platforms SDK;
5. Ultra-FineTM color engine with perfect color reproduction capability;
6. Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YUHCCD05200KPA | ICX655AQ(C) | 3.45x3.45 | 420mv with 1/30s | 4.3@2448x2050 | 1x1 | 0.22ms~60s |
YUHCCD05100KPA | ICX452AQ(C) | 2.775x2.775 | 260mv with 1/30s | 4@2592x1944 | 1x1, | 0.212ms~77ms |
YUHCCD05000KPA | ICX282AQ(C) | 3.4x3.4 | 280mv with 1/30s | 4.5@2560x1920 | 1x1, | 0.203ms~60ms |
YUHCCD03100KPB | ICX252AQ(C) | 3.45x3.45 | 270mv with 1/30s | 6@2048x1536 | 1x1,2x2 | 0.178ms~77ms |
YUHCCD02000KPA | ICX274AQ(C) | 4.40x4.40 | 420mv with 1/30s | 10@1600x1200 | 1x1 | 0.135ms~60s |
YUHCCD01400KPA | ICX205AK(C) | 4.65x4.65 | 400mv with 1/30s | 8@1360x1024 | 1x1 | 0.227ms~60s |
YUHCCD01400KPB | ICX205AK(C) | 4.65x4.65 | 400mv with 1/30s | 15@1360x1024 | 1x1 | 0.127ms~60s |
YUHCCD01400KMB | ICX205AK(M) | 4.65x4.65 | 450mv with 1/30s | 15@1360x1024 | 1x1 | 0.127ms~60s |
YUHCCD00800KPA | ICX204AK(C) | 4.65x4.65 | 400mv with 1/30s | 16@1024x768 | 1x1 | 0.16ms~60s |
OTHER HARDWARE CONFIGURATION | |
Spectral Range | 380-650nm (with IR-Cut filter), for Monochromatic Camera, AR Is Used |
White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique | Ultra Fine Color Engine |
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
OPERATING ENVIRONMENT | |
Operating Temperature | -10 °C~ 50 °C |
Storage Temperature | -20 °C~ 60 °C |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |
Optional Accessory | |||
F | Adjustable | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
C-Mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
G | Fixed | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
C-mount to Dia.31.75mm eyepiece tube | 108011/FTA037 | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration Lit | 106011/TS-M1(X=0.01mm/100Div.)； | |
