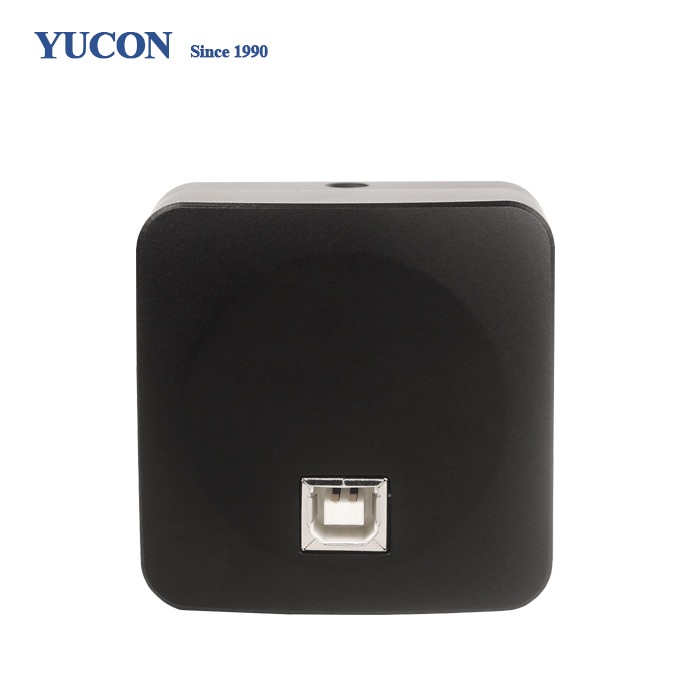

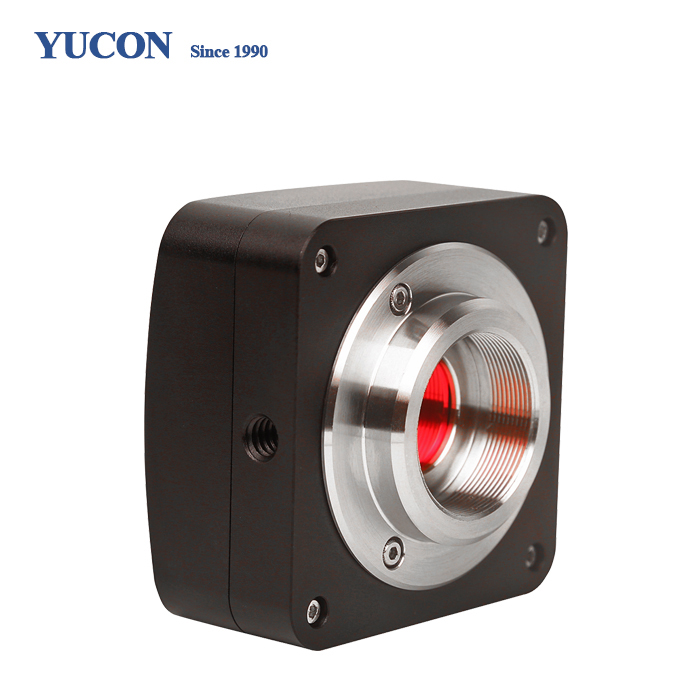

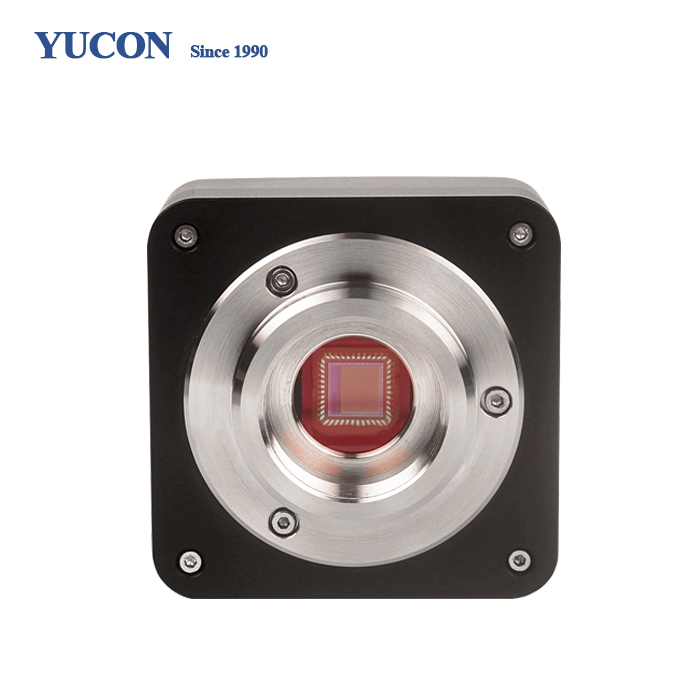

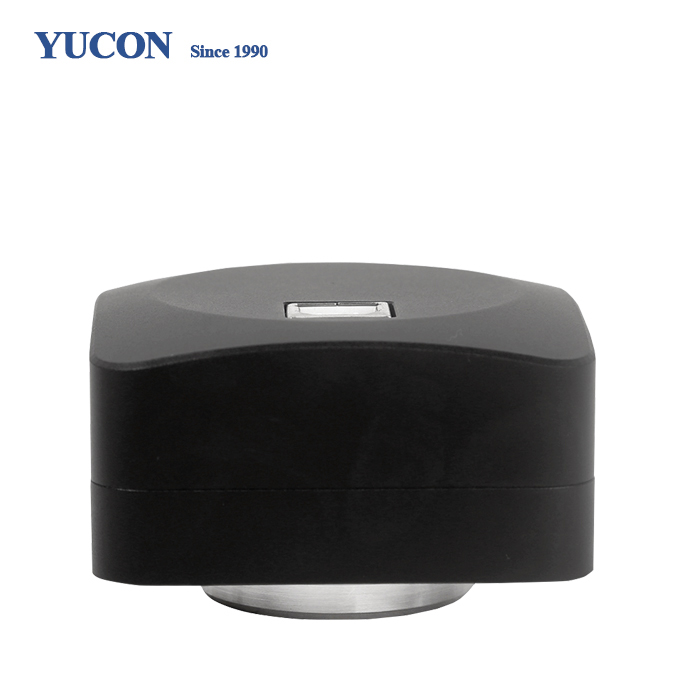

YU3CCD Series Coms Camera for Trinocular Eyepiece Tube Optical Microscope

Model:

YU3CCD12000KPA/YU3CCD12000KMA

YU3CCD09000KPA/YU3CCD09000KMA

YU3CCD06000KPA/YU3CCD06000KMA

YU3CCD02800KPA/YU3CCD02800KMA

YU3CCD01400KPB/YU3CCD01400KMB

Accessories: Standard/Optional

        YU3CCD is an ExView HAD CCD series camera. It adopts Sony ExView HAD CCD sensor as the image-picking device.

        Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. It uses EXCCD for simplicity. USB3.0 is used as the data transfer interface.

        YU3CCD hardware resolutions range from 1.4M to 6M and come with the integrated CNC aluminum alloy compact housing.

        YU3CCD comes with advanced video & image processing application;

        Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

        The YU3CCD can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

 The YU3CCD characteristic is as follows:

1. Standard C-Mount camera with SONY ExView HAD CCD II sensors from 1.4M ~ 6M;

2. IR-CUT Coated Windows

3. Up to 1000s long time exposure;

4. USB3.0 5 Gbps interface ensuring high speed data transmission;

5. With advanced video & image processing application;

6. Providing Windows/Linux/Mac OS multiple platforms SDK;

7. Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

8.Ultra-FineTM color engine with perfect color reproduction capability;


Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity
  Dark Signal

FPS/Resolution

Binning

Exposure

YU3CCD12000KPA


12M/ICX834AQG(C)
  1"(13.15x8.77)

3.10x3.10

420mv with 1/30s
  15.2mv with 1/30s

3.6@4284x2836
  3.6@2124x1418

1x1
  2x2

0.06ms~1000s

YU3CCD12000KMA


12M/ICX834ALG(M)
  1"(13.15x8.77)

3.10x3.10

420mv with 1/30s
  12mv with 1/30s
  (F#=8.0)

3.6@4284x2836
  3.6@2124x1418

1x1
  2x2

0.06ms~1000s

YU3CCD09000KPA


9.0M/ICX814AQG(C)
  1"(12.47x9.98)

3.69x3.69

580mv with 1/30s
  12mv with 1/30s

4.4@3388x2712
  4.4@1694x1356

1x1
  2x2

0.06ms~1000s

YU3CCD09000KMA


9.0M/ICX814ALG(M)
  1"(12.47x9.98)

3.69x3.69

660mv with 1/30s
  12mv with 1/30s
  (F#=8.0)

4.4@3388x2712
  4.4@1694x1356

1x1
  2x2

0.06ms~1000s

YU3CCD06000KPA


6.0M/ICX694AQG(C)
  1"(12.48x9.99)

4.54x4.54

1000mv with 1/30s
  8mv with 1/30s

7.5@2748x2200
  14@2748x1092

1x1

0.06ms~1000s

YU3CCD06000KMA


6.0M/ICX694ALG(M)
  1"(12.48x9.99)

4.54x4.54

1000mv with 1/30s
  8mv with 1/30s

7.5@2748x2200
  14@2748x1092

1x1

0.06ms~1000s

YU3CCD02800KPA


2.8M/ICX674AQG(C)
  2/3"(8.81x6.63)

4.54x4.54

800mv with 1/30s
  4mv with 1/30s

15@1938x1460
  17@1610x1212 18@1930x1092

1x1

0.05ms~1000s

YU3CCD02800KMA


2.8M/ICX674ALG(M)
  2/3"(8.81x6.63)

4.54x4.54

950mv with 1/30s
  4mv with 1/30s

15@1938x1460
  17@1610x1212 18@1930x1092

1x1

0.05ms~1000s

YU3CCD01400KPB


1.4M/ICX825AQA(C)
  2/3"(8.88x6.70)

6.45x6.45

2000mv with 1/30s
  4.8mv with 1/30s

25@1360x1040

1x1

0.07ms~1000s

YU3CCD01400KMB


1.4M/ICX825ALA(M)
  2/3"(8.88x6.70)

6.45x6.45

2000mv with 1/30s
  4.8mv with 1/30s

25@1360x1040

1x1

0.07ms~1000s

OTHER HARDWARE   CONFIGURATION

Spectral Range

380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering   Technique

Ultra Fine Color  Engine

Capture/Control SDK

Windows/Linux/macOS/Android   Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow,   Twain, etc);

Recording System

Still Picture and Movie

Cooling System*

Natural

OPERATING ENVIRONMENT

Operating Temperature

-10 °C~ 50 °C

Storage Temperature

-20 °C~ 60 °C

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB3.0 Port

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft   Windows XP / Vista / 7 /8 /10(32 & 64 bit)
  OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel   Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM


Optional   Accessory

F

Adjustable
  lens
  adapter

C-mount to Dia.23.2mm eyepiece tube
  (Please choose 1 of them for your microscope)

108001/AMA037
  108002/AMA050
  108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
  (Please choose 1 of them for your telescope)

108008/ATA037
  108009/ATA050
  108010/ATA075

G

Fixed
  lens adaptor

C-mount to Dia.23.2mm eyepiece tube
  (Please choose 1 of them for your microscope)

108005/FMA037
  108006/FMA050
  108007/FMA075

C-mount to Dia.31.75mm eyepiece tube
  (Please choose 1 of them for your telescope)

108011/FTA037
  108012/FTA050
  108013/FTA075

Note： For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

K

Calibration Lit

106011/TS-M1(X=0.01mm/100Div.)；
  106012/TS-M2(X,Y=0.01mm/100Div.);
  106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
