Model:
YC3CMOS10000KPA
YC3CMOS05100KPA
YC3CMOS05100KPB
YC3CMOS03500KPA
Accessories: Standard/Optional

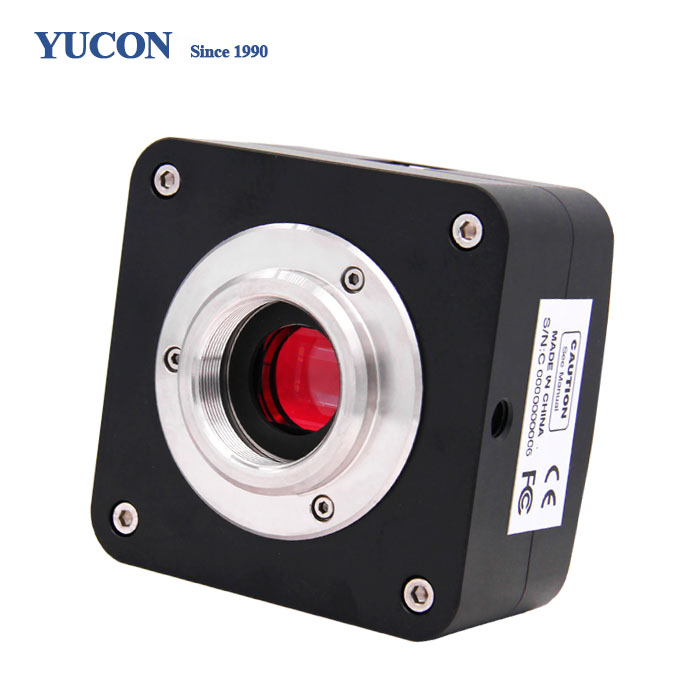

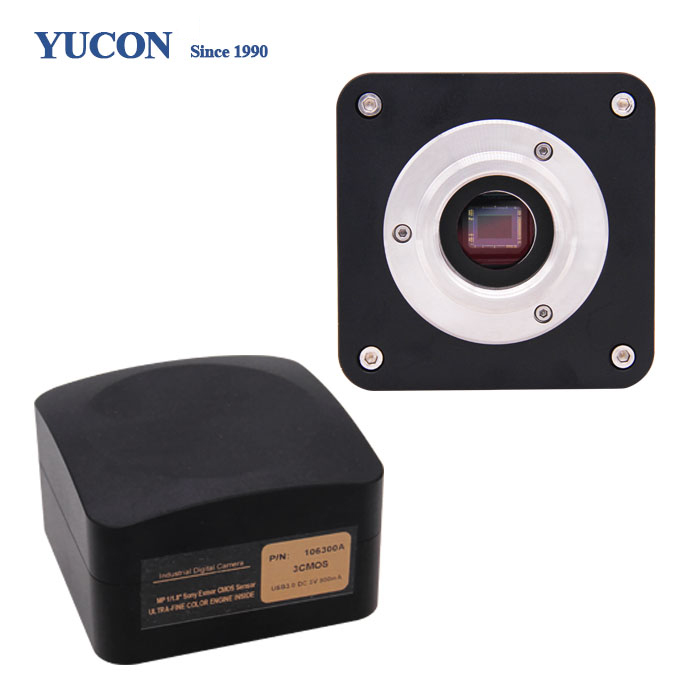

YC3CMOS camera is compact & high high performance USB3.0 YCMOS camera and it adopts Sony or OnSemi YCMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
YC3CMOS hardware resolutions range from 3.5MP to 10MP and come with the compact CNC aluminum alloy housing.
YC3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
The YC3CMOS can be widely used in brightfield light environment and microscope image capture and anaysis with higher frame rate.
1. Standard C-Mount camera with Sony or OnSemi YCMOS sensor;
2. With hardware resolution among 3.5M to 10M;
3. Compact CNC aluminum alloy housing;
4. USB3.0 5Gbps interface ensuring high speed data transmission;
5. Ultra-Fine color engine with perfect color reproduction capability;
6. With advanced video & image processing application ToupView;
7. Windows/Linux/macOS/Android multiple platform SDK;
Basic Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YC3CMOS10000KPA | 10M/MT9J003(C) | 1.67x1.67 | 0.31v/lux-sec | 7.2@3664x2748 | 1x1 | 0.1ms~2000ms |
YC3CMOS05100KPA | 5.1M/MT9P006(C) | 2.2x2.2 | 1.76v/lux-sec | 14.0@2592x1944 | 1x1 | 0.1ms~2000ms |
YC3CMOS05100KPB | 5.1M/IMX335(C) | 2.0x2.0 | 505mV | 20@2592x1944 | 1x1 | 0.1ms~2000ms |
YC3CMOS03500KPA | 3.5M/SC4236(C) | 2.5x2.5 | 3.0v/lux-sec | 30@2304x1536 | 1x1 | 0.1ms~2000ms |
OTHER HARDWARE CONFIGURATION | |
Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique | Ultra Fine Color Engine |
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
OPERATING ENVIRONMENT | |
Operating Temperature | -10 °C~ 50 °C |
Storage Temperature | -20 °C~ 60 °C |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |

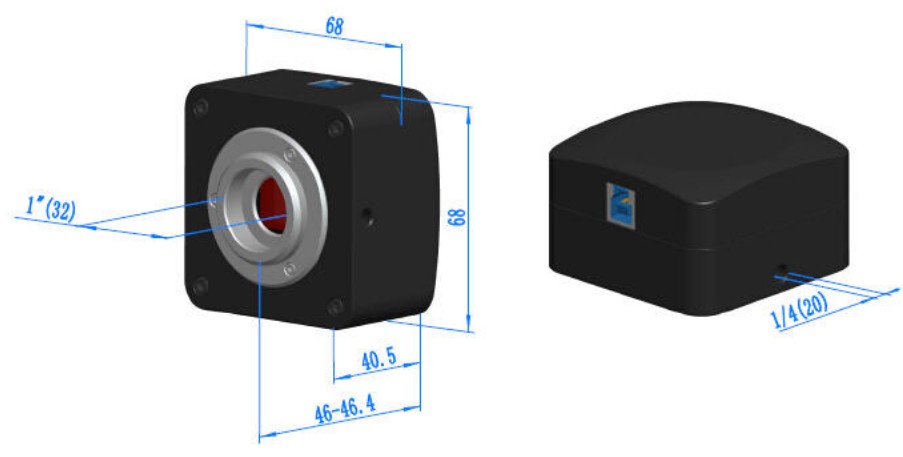

Dimension of YU3CMOS
The YUC3MOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

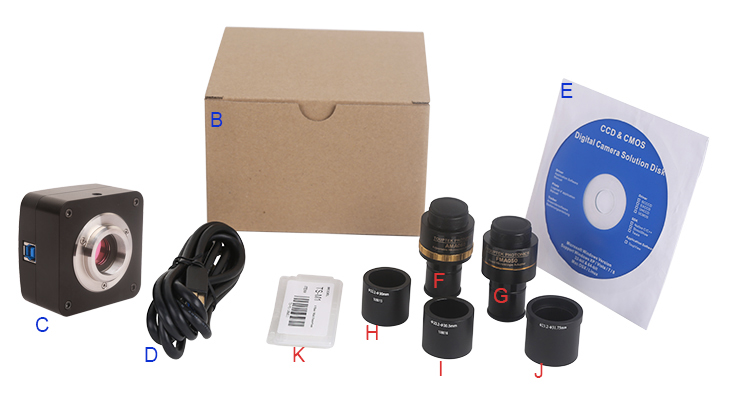

Optional Accessory | |||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
C-mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
G | Fixedlens adaptor | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
