Model:
YECMOS08300KPA
YECMOS06600KPA
YECMOS05300KPA
YECMOS03100KPA
YECMOS02000KPA
YECMOS01200KPA
Accessories: Standard/Optional
YECMOS is an ultra-high performance YCMOS camera and it adopts ultra-high performance YCMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
YECMOS hardware resolutions ranges from 3.5M to 14M and comes with the Integrated zinc aluminum alloy compact housing.YECMOS comes with advanced video & image processing application; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;The YECMOS can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.
The basic characteristic of YECMOS cameras are as follows:
1. Standard C-Mount with Aptina YCMOS sensor;
2. With hardware resolution among0.35M to 14M;
3. Integrated zinc aluminum alloy housing;
4. USB2.0 interface ensuring high speed data transmission;
5. Ultra-FineTM color engine with perfect color reproduction capability;
6. With advanced video & image processing application;
7. ProvidingWindows/Linux/Mac OS multiple platforms SDK;
8. Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Basic Specification
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YECMOS08300KPA | 8.3M/IMX278(C) | 1.62x1.62 | 236mv/ with 1/30s | 4 @3840x2160 | 1x1, | 0.244ms~15s |
YECMOS06600KPA | 6.6M/IMX326(C) | 1.62x1.62 | 236mv/ with 1/30s | 5 @ 3072x2160 | 1x1 | 0.244ms~15s |
YECMOS05300KPA | 5.3M/IMX178(C) | 2.4x2.4 | 425mv/ with 1/30s | 5.5@3072x1728 | 1x1, | 0.105ms~15s |
YECMOS03100KPA | 3.1M/IMX123(C) | 2.5x2.5 | 600mv/ with 1/30s | 10.5@20480x1536 | 1x1 | 0.105ms~15s |
YECMOS02000KPA | 2.0M/IMX290(C) | 2.9x2.9 | 1300mv/ with 1/30s | 17@1920x1280 | 1x1 | 0.105ms~15s |
YECMOS01200KPA | 1.2M/IMX224(C) | 3.75x3.75 | 2240mv/ with 1/30s | 27@1280x960 | 1x1, | 0.105ms~15s |
Other Specification for UCMOS Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTMColor Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System | Natural |
Operating Environment | |
Operating Temperature(in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows®XP/ Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More USB Port:USB2.0 High-speed Port Display:17” or Larger CD-ROM |

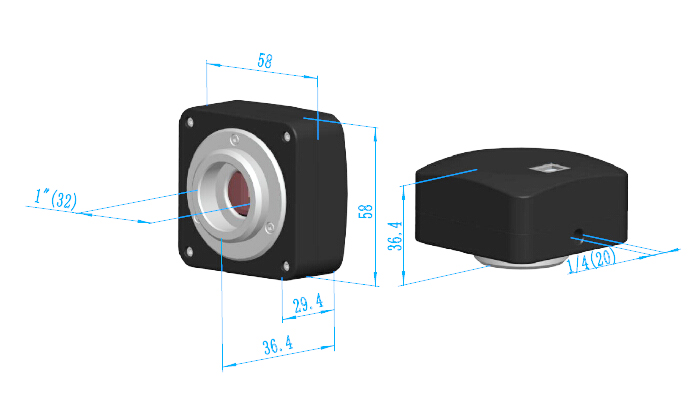

Dimension of YUCMOS
The YECMOS body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

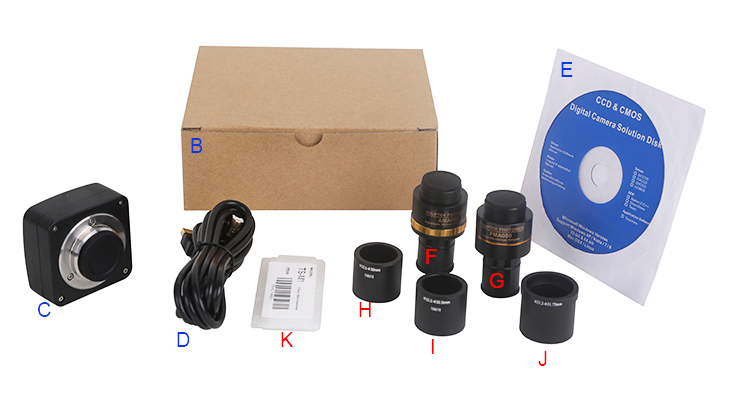

Optional Accessory | |||
F | Adjustable lens adapter | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
C-mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
G | Fixedlens adaptor | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||
Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); | |
