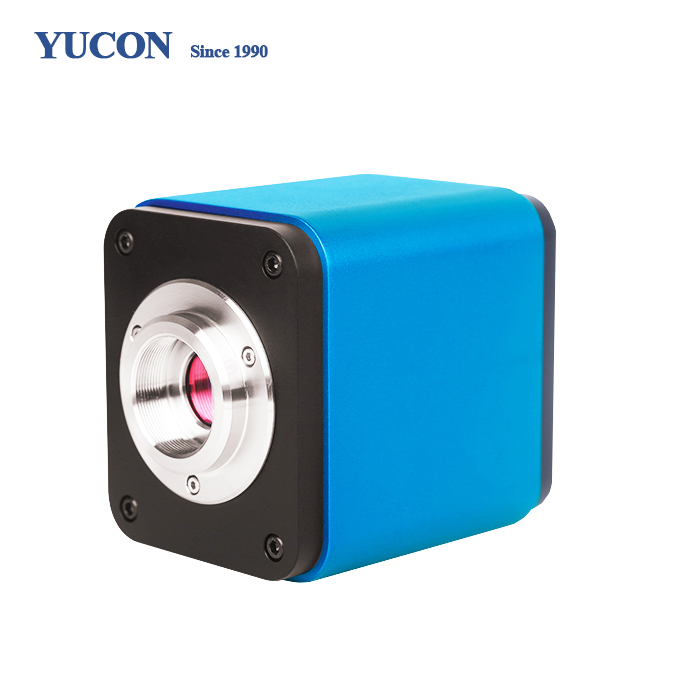

Model: YXCAM1080PHB/PHD/PHE
Accessories: Standard/Optional
YXCAM1080PHB/PHD/PHE is a multiple interfaces (HDMI+WIFI+SD card, so X here means multiple interfaces) YCMOS camera and it adopts ultra-high performance Aptina YCMOS sensor as the image-picking device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.
1. All in 1( HDMI+WIFI+SD card) C-mount camera with high sensitivity YCMOS sensor;
2. Simultaneous HDMI & WIFI output;
3. Built-in mouse control;
4. Built-in image capture & video record to SD card;
5. Built-in camera control panel for mouse control;
6. Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions;
7. Built-in image & video browsing,display & play;
8. Ultra-Fine color engine with perfect color reproduction capability(USB);
9. With advanced video & image processing application ;
10. Support standard SDK for Windows/Linux/macOS/Android(USB);
11. CNC shell molding design;
Order Code | Sensor& Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
YXCAM1080PHB | 1080P/5M/ | 2.4x2.4 | 425 mv with 1/30s | 30@1920x1080 | 1x1 | 0.03ms~918ms |
YXCAM1080PHD | 1080P/2M/ | 3.75x3.75 | 1120 mv with 1/30s | 30@1920x1080 | 1x1 | 0.06ms~918ms |
YXCAM1080PHE | 1080P/2M/ | 5.86x5.86 | 1016 mv with 1/30s | 30@1920x1080 | 1x1 | 0.043ms~1000ms |
Data of XCAM1080

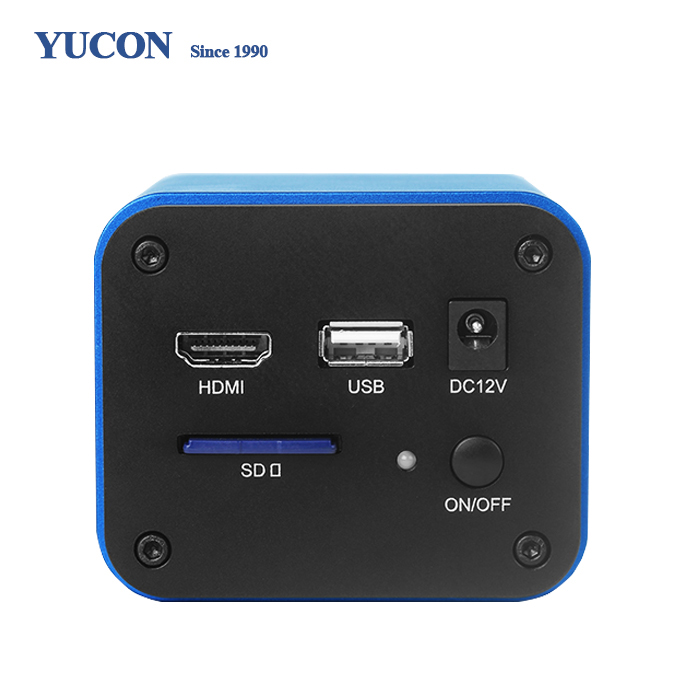

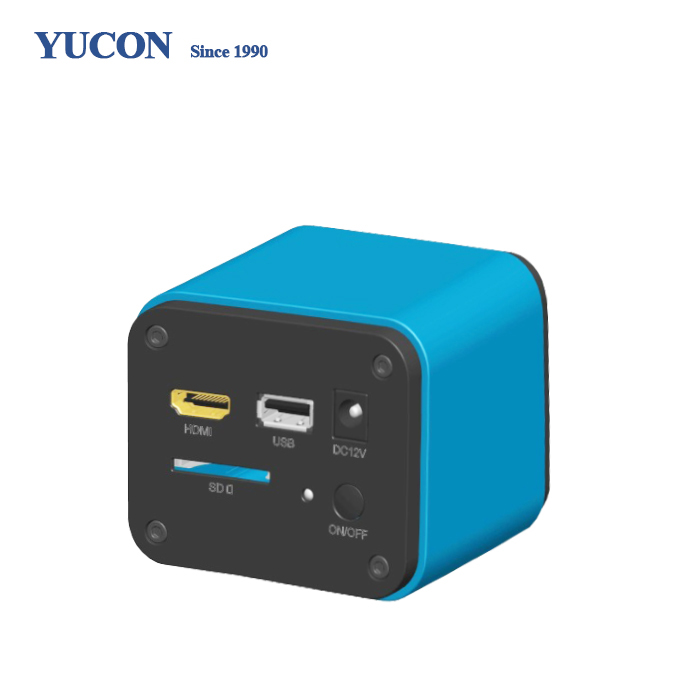

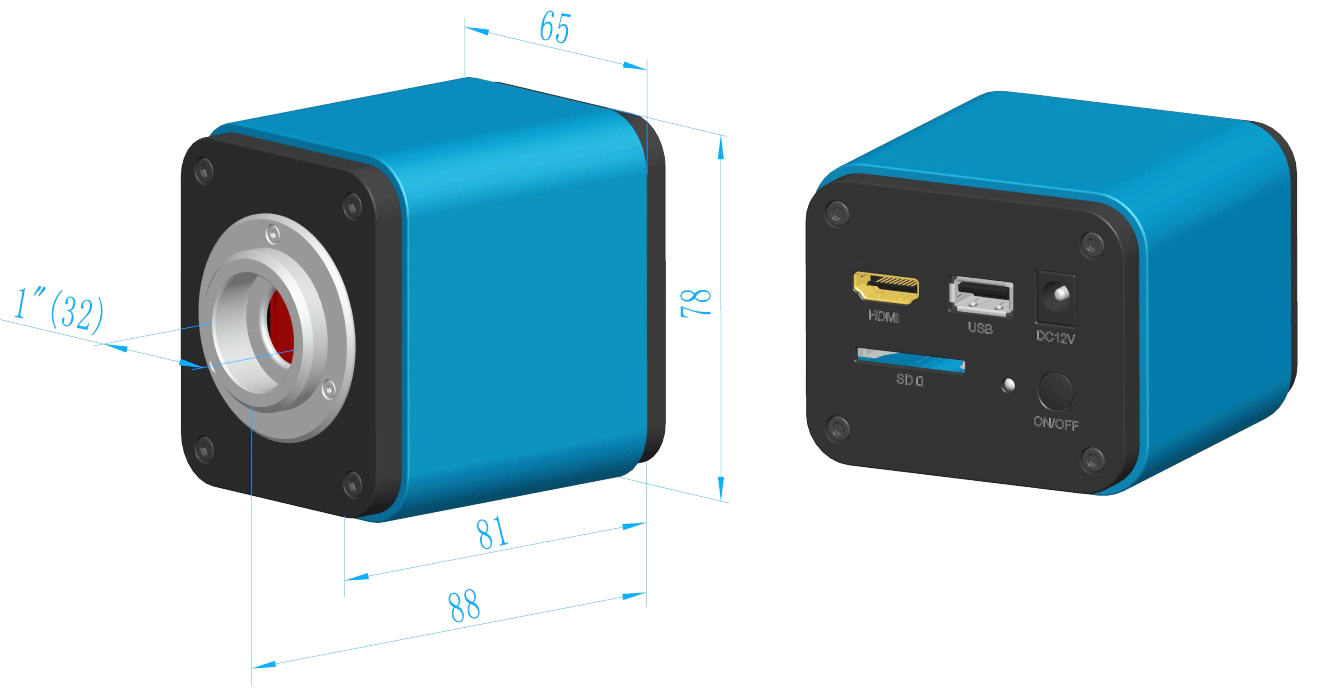

Interface & Button Functions | ||||
 | USB | USB Mouse/USB WIFI Adapter | ||
HDMI | HDMI Out | |||
DC12V | 12V Power in | |||
SD | SD Card Slot | |||
ON/OFF | Power On/off Switch | |||
LED | Power Indicator | |||
Other Specification for HDMI Out | ||||
UI Operation | With USB Mouse to Operate on the embedded XCamView | |||
Image Capture | JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) | |||
Video Record | ASF Format 1080P 30fps in SD Card(8G) | |||
Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | |||
Toolbar | Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information | |||
Other Specification for WIFI Out | ||||
UI Operation | Windows/Linux/OSX/Android Platform | |||
WIFI Performance | 802.11n 150Mbps; RF Power 20dBm(Maximum) | |||
Maximum Connected Devices | 3~6(According to the Environment and Connection Distance) | |||
White Balance | Auto White Balance | |||
Color Technique | Ultra-FineTMColor Engine (WIFI) | |||
Capture/Control API | Standard SDK for Windows/Linux/Mac(WIFI) | |||
Recording System | Still Picture or Movie (WIFI) | |||
Software Environment (for USB2.0 Connection) | ||||
Operating System | Microsoft® Windows®XP/ Vista / 7 / 8 / 8.1/10(32 & 64 bit) OSx(Mac OS X) Linux | |||
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | |||
Memory:4GB or More | ||||
USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer) | ||||
Display:19” or Larger | ||||
CD-ROM | ||||
Operating Environment | ||||
Operating Temperature(in Centidegree) | -10~ 50 | |||
Storage Temperature(in Centidegree) | -20~ 60 | |||
Operating Humidity | 30~80%RH | |||
Storage Humidity | 10~60%RH | |||
Power Supply | DC 12V/1A Adapter | |||
Optional Accessory | |||
H | Adjustable | C-Mount to Dia.23.2mm Eyepiece Tube | 108001/AMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108008/ATA037 | ||
I | Fixed | C-Mount to Dia.23.2mm Eyepiece Tube | 108005/FMA037 |
C-Mount to Dia.31.75mm Eyepiece Tube | 108011/FTA037 | ||
Note：For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
J | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
K | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
L | Calibration Kit | 106011/TS-M1(X=0.01mm/100Div.)； | |
M | SD Card(4G or 8G) | ||
