Model:
YWCAM1080PA
YWCAM0720PA
YWCAM0720PB
YWCAM0300KPA
Accessories: Standard/Optional

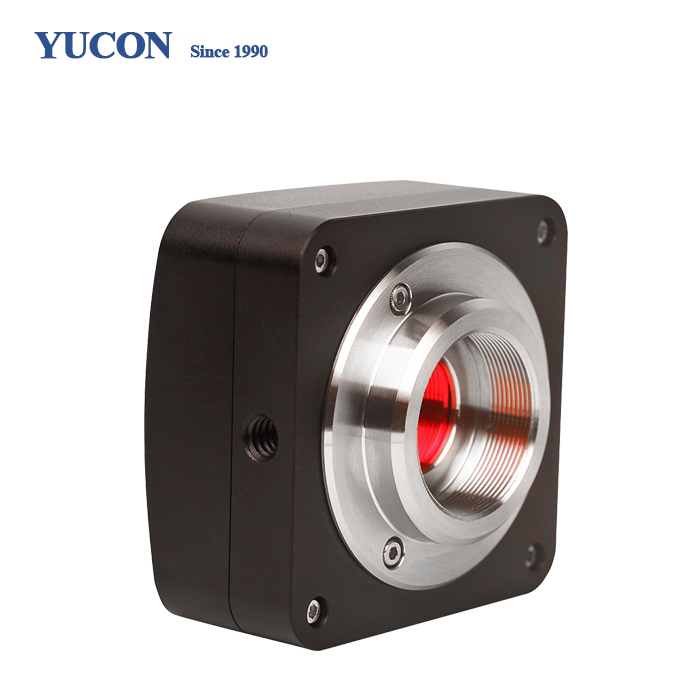

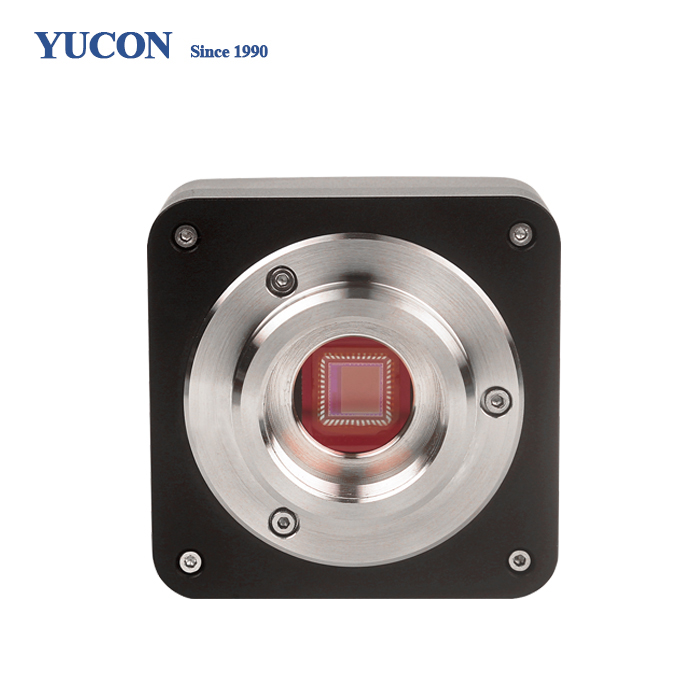

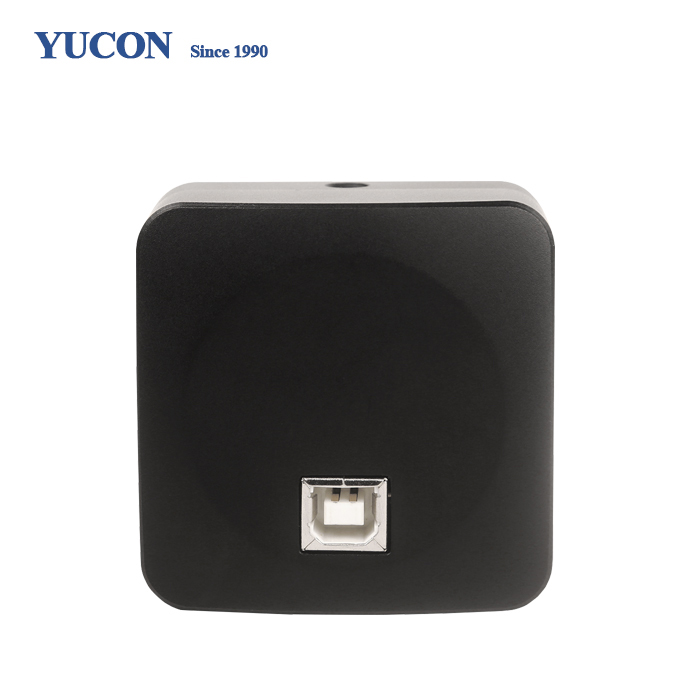

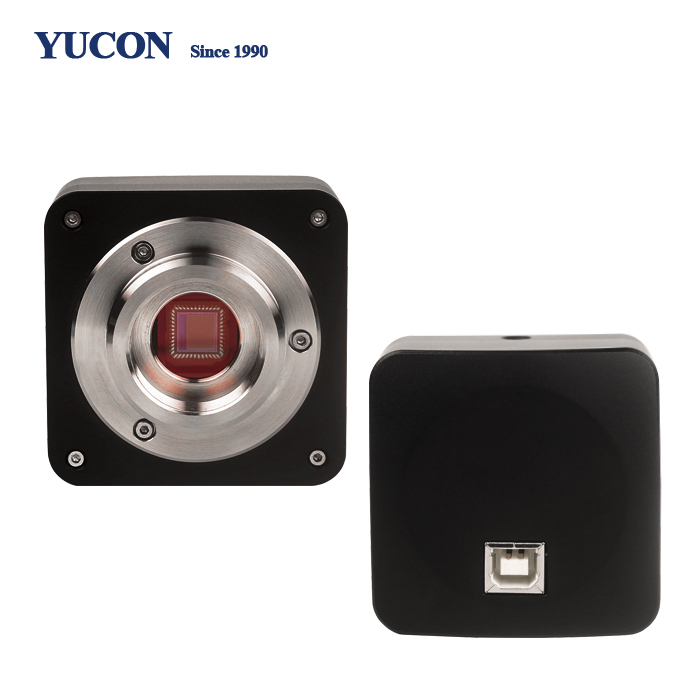

YWCAM is WIFI camera and it adopts ultra-high performance YCMOS sensor as the image-picking device. WIFI is used as the data transfer interface.
When the YWCAM is attached to the eyepiece of a microscope and started, it will and generates a WiFi signal for sending high-resolution images from a microscope to WiFi-enabled devices such as smarhones, tablets, and computers with iOS, Android, OS X, Linux and Windows operating systems, streaming images to up to six devices simultaneously.
The camera includes images software for quantifying, measuring, and annotating images and for using with an interactive white board. It also works with the free, downloadable Toupviewt app for viewing, capturing, and editing images.
The basic characteristic of YWCAM cameras are as follows:
1. C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
2. Scientific research grade camera with Aptina YCMOS sensor;
3. Sends H.264 encodec high-resolution images from a microscope to WiFi-enabled smarhones, computers, and tablets with iOS, Android, and Windows operating systems;
4. Streams images to several devices simultaneously;
5. Integrated zinc aluminum alloy housing;
6. Ultra-FineTM color engine with perfect color reproduction capability;
7. With advanced video & image processing application ToupView(only support simple video viewing capturing for IOS/ android system);
8. Custom programmable with SDK provided(Windows/Linux/OS);
Basic Specification
Order Code | Sensor& Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
YWCAM1080PA | 1080P/IMX222(C) | 2.8x2.8 | 510mV with 1/30s | 25@1920x1080 | 1x1 | 0.059ms~1941ms |
YWCAM0720PA | 720P/MT9P001(C) | 2.2x2.2 | 1.0 V/lux-sec | 30@1280x720 | 2x2 | 0.21ms~200ms |
YWCAM0720PB | 720P/MT9P001(C) | 2.2x2.2 | 1.0 V/lux-sec | 10@1280x720 | 2x2 | Auto |
YWCAM0300KPA | 0.3M/MT9V011(C) | 5.6x5.6 | 1.9V/lux-sec | 25@640x480 | 1x1 | Auto |
Button Functions
Other Specification for YWCAM Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | Whole Area White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTMColor Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C# /VB.Net,DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System | Natural |
Maximum Connected Devices | <=3 |
Operating Environment | |
Operating Temperature(in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | USB Charger, Not Recommend PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows®XP/ Vista / 7 / 8 /10 (32 & 64 bit) IOS IPAD or IPhone, Android PAD and Phone |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More WIFI Adapter with DHCP Enabled Display:17” or Larger CD-ROM |
PAD | IPAD or PAD with Android System |
Mobile Phone | IPhone or Smart Phone with Android System |
Optional Accessory | |||
F | Adjustable | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
C-Mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
G | Fixed | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
C-mount to Dia.31.75mm eyepiece tube | 108011/FTA037 | ||
Note：For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration Lit | 106011/TS-M1(X=0.01mm/100Div.)； | |
