Model:
YEXCCD01400KPA
YEXCCD01400KMA
YEXCCD00440KMA
YEXCCD00300KMA
Accessories: Standard/Optional

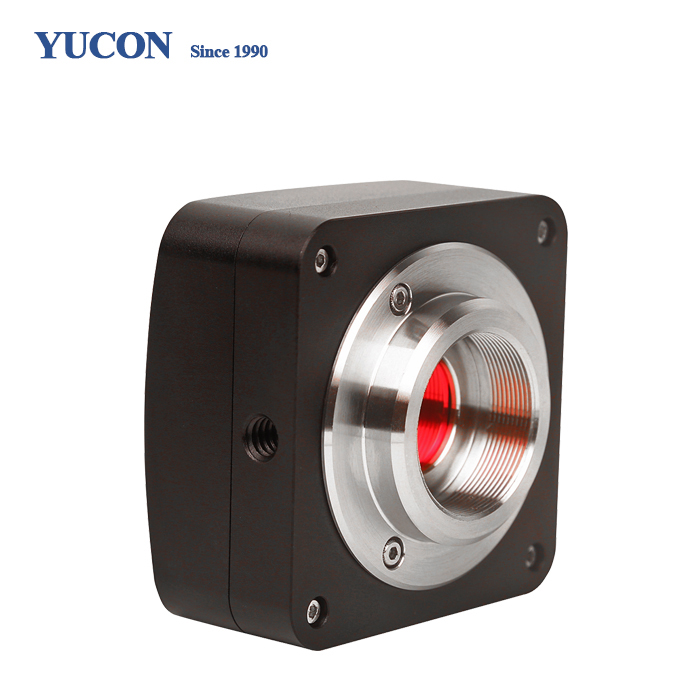

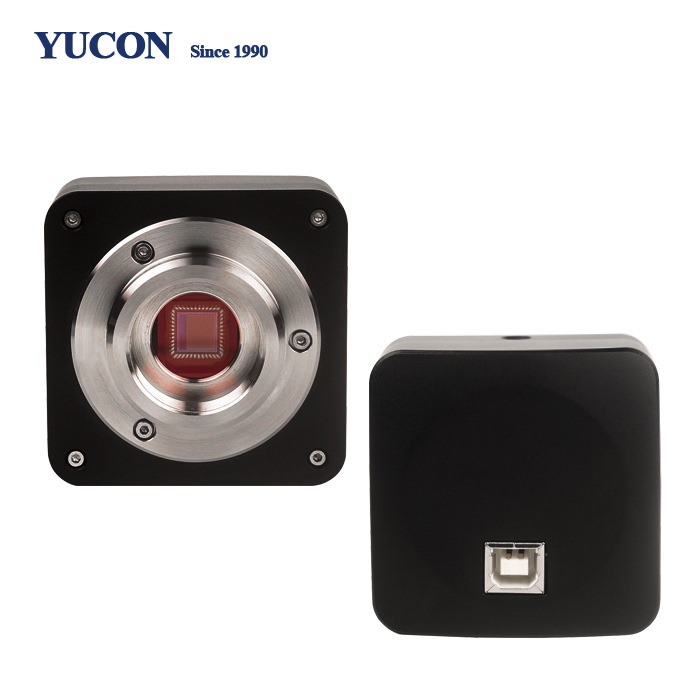

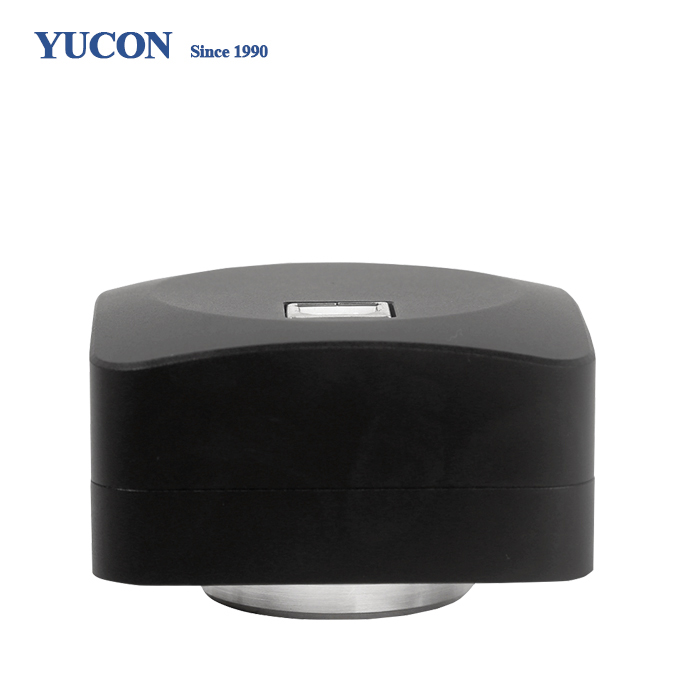

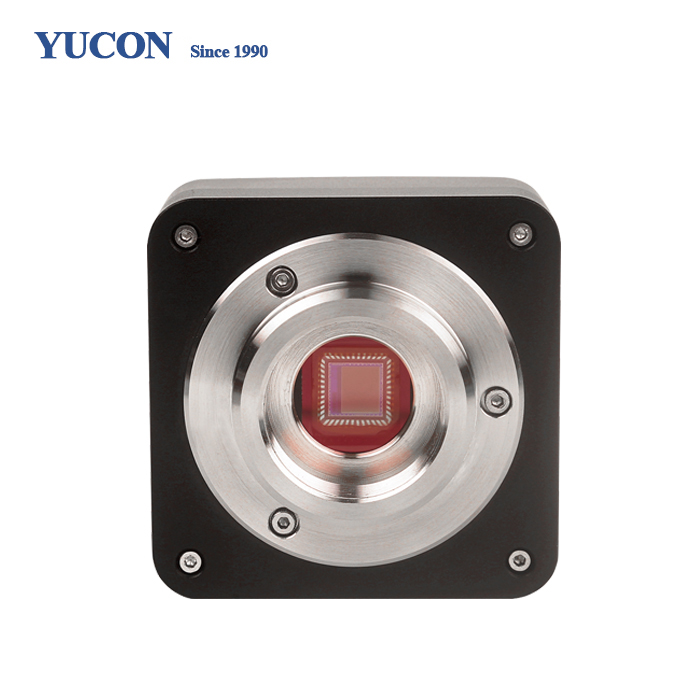

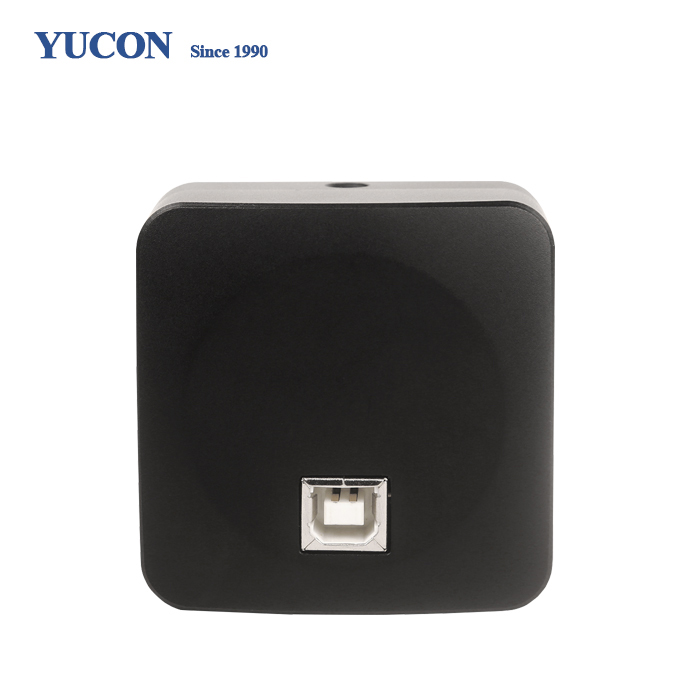

YEXCCD is an ExView HAD CCD camera and it adopts Sony ExView HAD CCD sensor as the image-picking device.
Sony ExView HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor.
It uses YEXCCD for simplicity. USB2.0 is used as the data transfer interface.
YEXCCD comes with advanced video & image processing application;
Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The YEXCCD can be widely used in low light environment and microscope fluorescence image capture and analysis.
The YEXCCD characteristic is as follows:
1. Standard C-Mount camera with SONY ExView 0.3M ~ 1.4M;
2. USB2.0 interface ensuring high speed data transmission;
3. With advanced video & image processing application;
4. Providing Windows/Linux/Mac OS multiple platforms SDK;
5. Ultra-FineTM color engine with perfect color reproduction capability;
6. Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Basic Specification
Order Code | Sensor& Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
YEXCCD01400KPA | 1.4M/ICX285AQ(C) | 6.45x6.45 | 1240mv with 1/30s | 15@1360x1024 | 1x1 | 0.126ms~240s |
YEXCCD01400KMA | 1.4M/ICX285AL(M) | 6.45x6.45 | 1300mv with 1/30s | 15@1360x1024 | 1x1 | 0.126ms~240s |
YEXCCD00440KMA | 0.44M/ICX829AL(M) | 8.6X8.3 | 2800mv with 1/30s | 46@748X578 | 1x1 | 0.20ms~3600s |
YEXCCD00300KMA | 0.3M/ICX618AL(M) | 5.60x5.60 | 1200mv with 1/30s | 72@640x480 | 1x1 | 0.06ms~40s |
Other Specification for YEXCCD Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTMColor Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C# /VB.Net, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System | Natural |
Operating Environment | |
Operating Temperature(in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows®XP/ Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More USB Port:USB2.0 High-speed Port Display:17” or Larger CD-ROM |

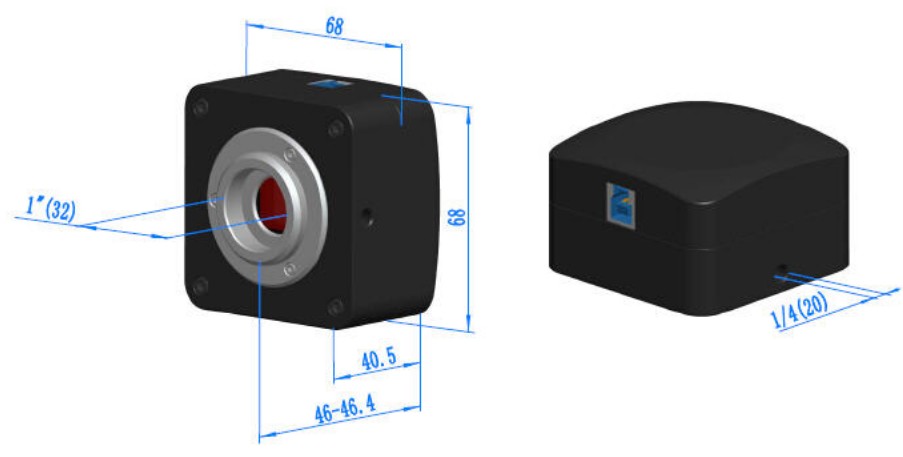

Dimension of cameras:
The YEXCCD body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution.
The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included.
This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
Optional Accessory | |||
F | Adjustable | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
C-Mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
G | Fixed | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
C-mount to Dia.31.75mm eyepiece tube | 108011/FTA037 | ||
Note：For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration Lit | 106011/TS-M1(X=0.01mm/100Div.)； | |
