Model:
YL3CMOS14000KPA
YL3CMOS10000KPA
YL3CMOS08500KPB
YL3CMOS05100KPA
YL3CMOS03100KPA
YL3CMOS01200KPB
Accessories: Standard/Optional

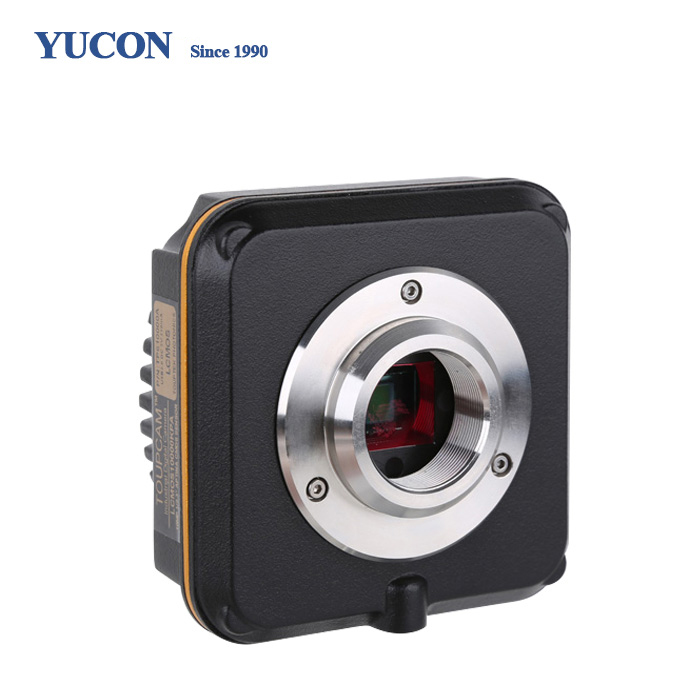

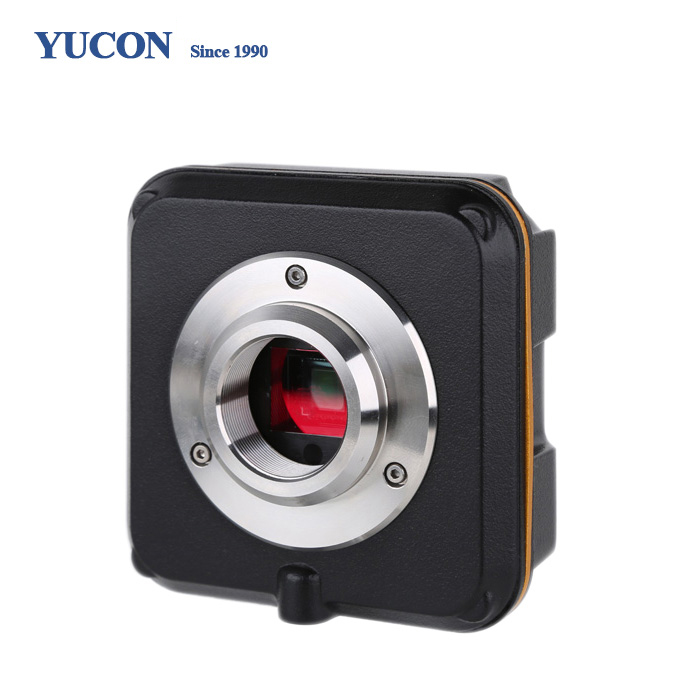

YL3CMOS is Luxurious USB3.0 CMOScamera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device, and USB3.0 is used as the data transfer interface.
YL3CMOS comes with advanced video & image processing application; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The YL3CMOS can be widely used in bright field light environment and microscope image capture and analysis.
The basic characteristic of YL3COMS cameras are as follows:
1. C-Mount camera has 25.4 mm or 1 inch diameter with 32 threads per inch;
2. Scientific research grade camera with Aptina CMOS sensor;
3. With hardware resolution among 1.2M to 14M;
4. On-board memory for perfect synchronization,higher frame rate and stable performance;
6. High performance cooling structure, ensures low image noise;

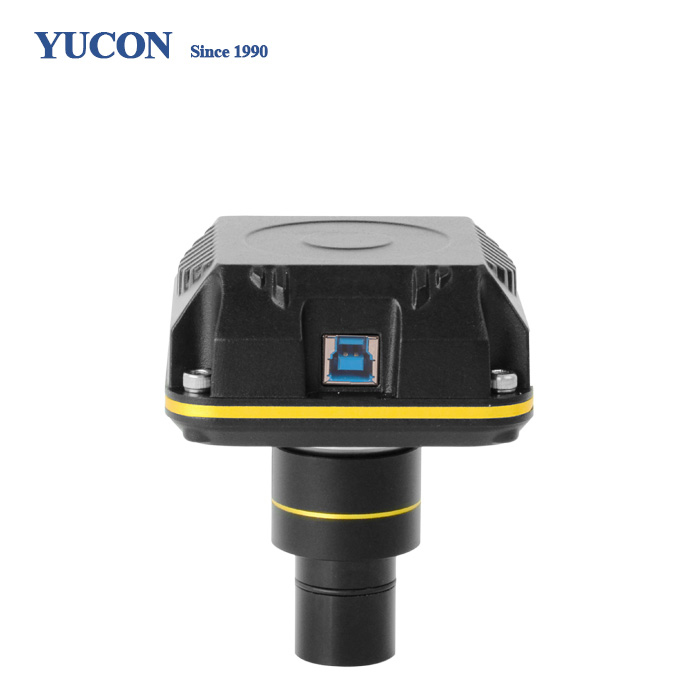

7. USB3.0 5 Gbps interface ensuring high frame rate;
8. Ultra-FineTM color engine with perfect color reproduction capability;
9. With advanced video & image processing application;
10. Providing Windows/Linux/Mac OS multiple platforms SDK;
11. Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
Basic Specification
Order Code | Sensor& Size(mm) | Pixel(μm) | G Sensitivity Dark Signal | FPS/Resolution | Binning | Exposure |
YL3CMOS14000KPA | 14M/MT9F002(C) | 1.4x1.4 | 0.724v/lux-sec 65.3dB | 6.2@4096x3286 | 1x1, | 0.1ms~2000ms |
YL3CMOS10000KPA | 10M/MT9J003(C) | 1.67x1.67 | 0.31v/lux-sec | 7.2@3584x2746 | 1x1, | 0.1ms~2000ms |
YL3CMOS08500KPB | 8.5M/Special(C) | 1.67x1.67 | 0.31v/lux-sec | 8.3@3328x2548 | 1x1, | 0.1ms~2000ms |
YL3CMOS05100KPA | 5.1M/MT9P006(C) | 2.2x2.2 | 1.76v/lux-sec | 14.2@2560x1922 | 1x1, | 0.05ms~2000ms |
YL3CMOS03100KPA | 3.1M/AR0330(C) | 2.2x2.2 | 1.9v/lux-sec | 27.3@2048x1534 | 1x1, | 0.1ms~2000ms |
YL3CMOS01200KPB | 1.2M/AR0130(C)1/3"(4.8x3.6) | 3.75x3.75 | 5.5v/lux-sec | 45@1280x960 | 1x1, | 0.1ms~20000ms |
Other Specification for L3CMOS Camera | |
Spectral Range | 380-650nm (with IR-cut Filter) |
White Balance | ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
Color Technique | Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
Capture/Control API | Native C/C++, C# /VB.Net,, DirectShow, Twain and Labview |
Recording System | Still Picture and Movie |
Cooling System | Natural |
Operating Environment | |
Operating Temperature(in Centidegree) | -10~ 50 |
Storage Temperature(in Centidegree) | -20~ 60 |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
Software Environment | |
Operating System | Microsoft® Windows®XP/ Vista / 7 / 8 /10 (32 & 64 bit) OSx (Mac OS X) Linux |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher Memory:2GB or More USB Port:USB3.0 High-speed Port Display:17” or Larger CD-ROM |
Optional Accessory | |||
F | Adjustable | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
C-Mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
G | Fixed | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
C-mount to Dia.31.75mm eyepiece tube | 108011/FTA037 | ||
Note： For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration Lit | 106011/TS-M1(X=0.01mm/100Div.)； | |
