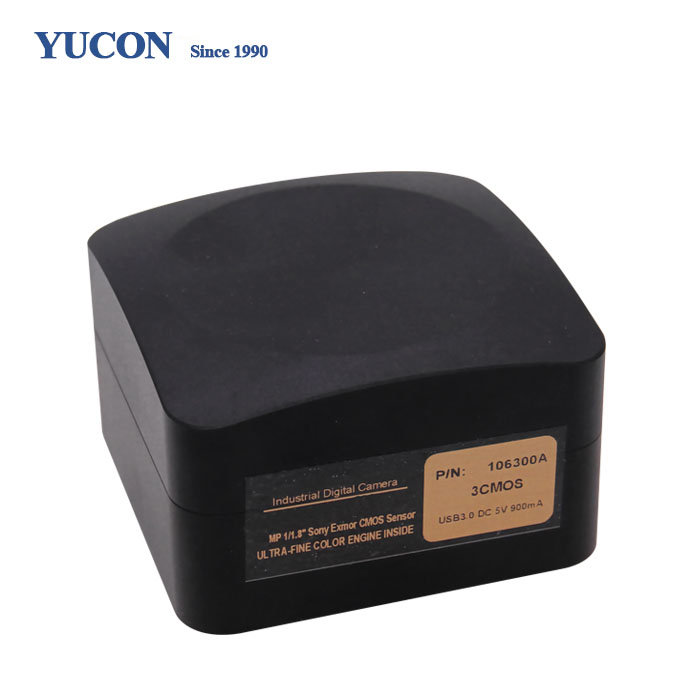

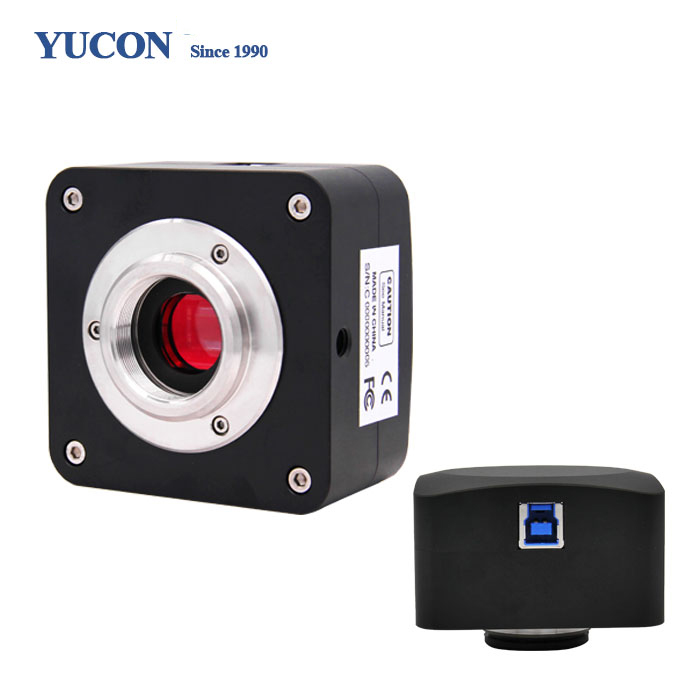

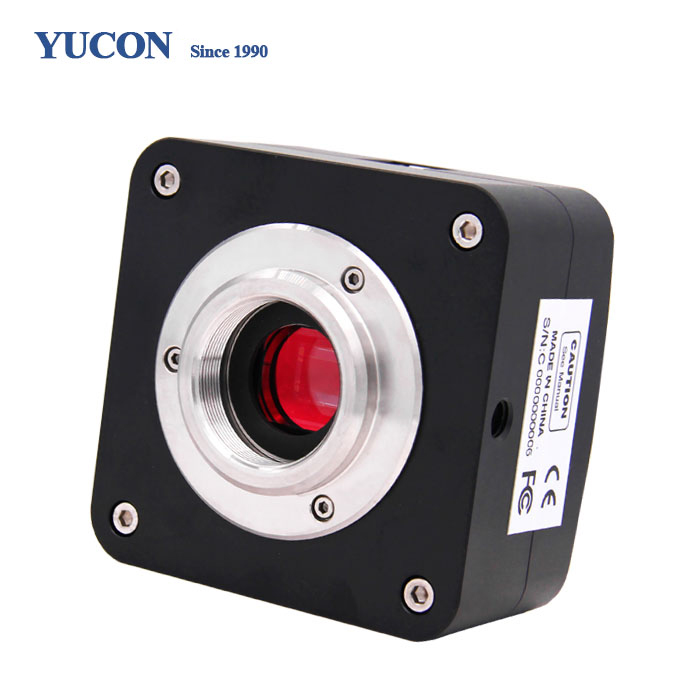

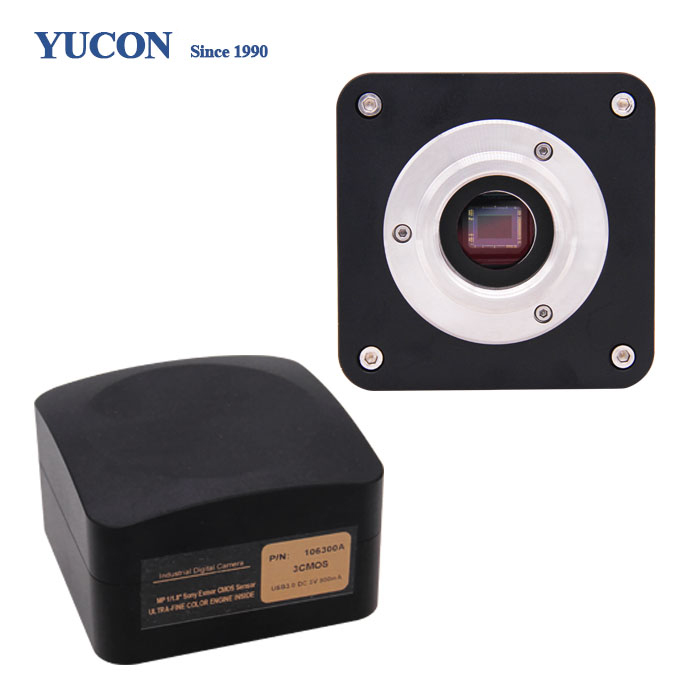

YC3CMOS Series C-mount USB3.0 CMOS Camera

Model:

YC3CMOS10000KPA

YC3CMOS05100KPA

YC3CMOS05100KPB

YC3CMOS03500KPA

Accessories: Standard/Optional

      YC3CMOS camera is compact & high high performance USB3.0 CMOS camera and it adopts Sony or OnSemi CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.

YC3CMOS hardware resolutions range from 3.5MP to 10MP and come with the compact CNC aluminum alloy housing.

YC3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

The YC3CMOS can be widely used in brightfield light environment and microscope image capture and anaysis with higher frame rate.

1.  Standard C-Mount camera with Sony or OnSemi CMOS sensor;

2.  With hardware resolution among 3.5M to 10M;

3.  Compact CNC aluminum alloy housing;

4.  USB3.0 5Gbps interface ensuring high speed data transmission;

5.  Ultra-Fine color engine with perfect color reproduction capability;

6.  With advanced video & image processing application ToupView;

7.  Windows/Linux/macOS/Android multiple platform SDK;




Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity
  Dark Signal

FPS/Resolution

Binning

Exposure

YC3CMOS10000KPA



10M/MT9J003(C)
  1/2.3“ (5.98x4.58)

1.67x1.67

0.31v/lux-sec
  65.2dB
  34dB

7.2@3664x2748
  23.8@1832x1374
  77.4@912x686

1x1
  2x2
  4x4

0.1ms~2000ms

YC3CMOS05100KPA



5.1M/MT9P006(C)
  1/2.5“ (5.70x4.28)

2.2x2.2

1.76v/lux-sec
  67.74dB
  38.5dB

14.0@2592x1944
  29.4@1280x960
  103.1@640x480

1x1
  2x2
  4x4

0.1ms~2000ms

YC3CMOS05100KPB



5.1M/IMX335(C)
  1/2.8“ (5.18x3.89)

2.0x2.0

505mV
  70dB
  43dB

20@2592x1944
  40@1296x972

1x1
  2x2

0.1ms~2000ms

YC3CMOS03500KPA



3.5M/SC4236(C)
  1/2.6“ (5.76x3.84)

2.5x2.5

3.0v/lux-sec
  72dB
  37dB

30@2304x1536
  30@1152x768

1x1

0.1ms~2000ms

OTHER HARDWARE   CONFIGURATION

Spectral Range

380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering   Technique

Ultra Fine Color Engine

Capture/Control SDK

Windows/Linux/macOS/Android  Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

Recording System

Still Picture and Movie

Cooling System*

Natural

OPERATING ENVIRONMENT

Operating Temperature

-10 °C~ 50 °C

Storage Temperature

-20 °C~ 60 °C

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft Windows  XP / Vista / 7 /8 /10(32 & 64 bit)
  OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM


Optional  Accessory

F

Adjustable
  lens
  adapter

C-mount to Dia.23.2mm eyepiece tube
  (Please choose 1 of them for your microscope)

108001/AMA037
  108002/AMA050
  108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
  (Please choose 1 of them for your telescope)

108008/ATA037
  108009/ATA050
  108010/ATA075

G

Fixed
  lens adaptor

C-mount to Dia.23.2mm eyepiece tube
  (Please choose 1 of them for your microscope)

108005/FMA037
  108006/FMA050
  108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
  (Please choose 1 of them for your telescope)

108011/FTA037
  108012/FTA050
  108013/FTA075

Note： For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

K

Calibration Lit

106011/TS-M1(X=0.01mm/100Div.)；
  106012/TS-M2(X,Y=0.01mm/100Div.);
  106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
