Model:
YU3ISPM18000KPA
YU3ISPM16000KPA
YU3ISPM16000KPB
Accessories: Standard/Optional

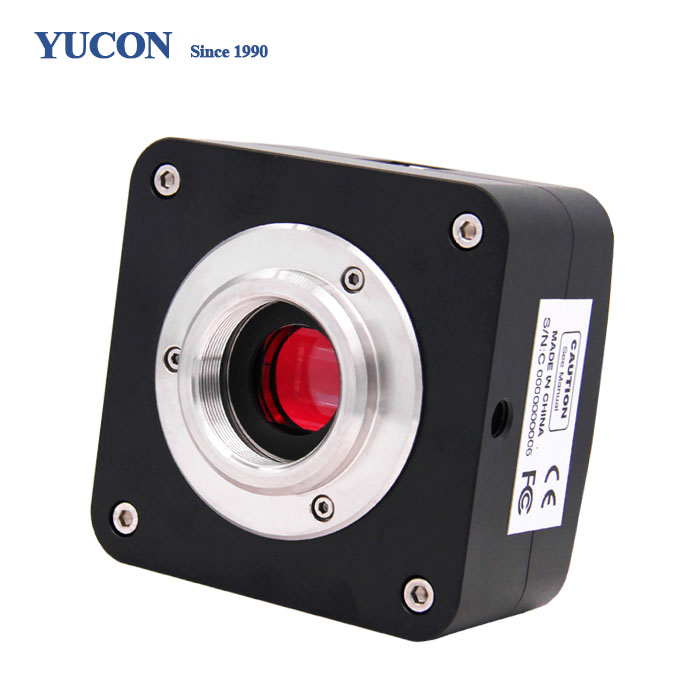

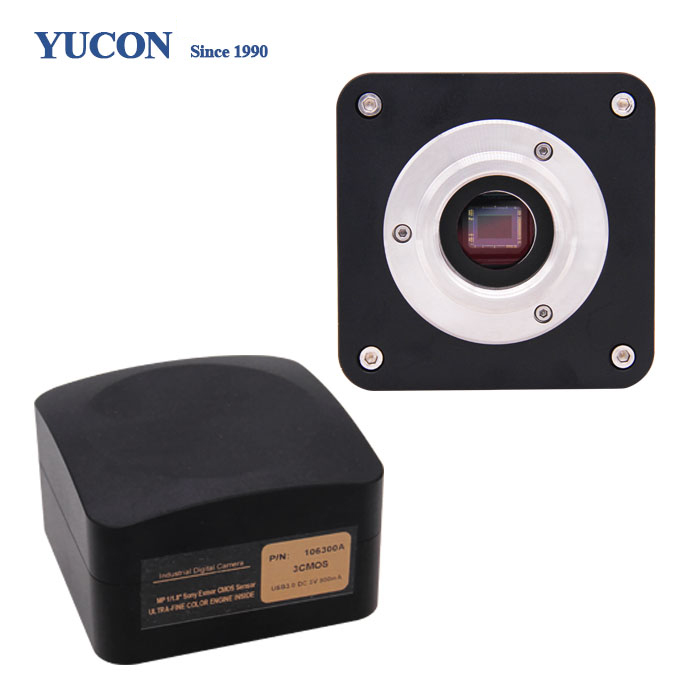

YU3ISPM is an ultra-high performance USB3.0 CMOS camera and it adopts OnSemi or Panasonic CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
YU3ISPM integrated with 12 bit Ultra-fineTM Hardware Image Signal Processor Video Pipeline(Ultra-fineTM HISP VP) for Demosaic, Adjustments, Automatic Exposition, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISP VP and greatly accelerating the processing speed.
YU3ISPM comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
YThe U3ISPM can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.
1. Standard C-Mount camera with Aptina or Panasonic CMOS sensor;
2. With hardware resolution among 16M to 18M;
3. Ultra-fineTM HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 13 frames for 18M Resolution)
4. CNC aluminum alloy housing;

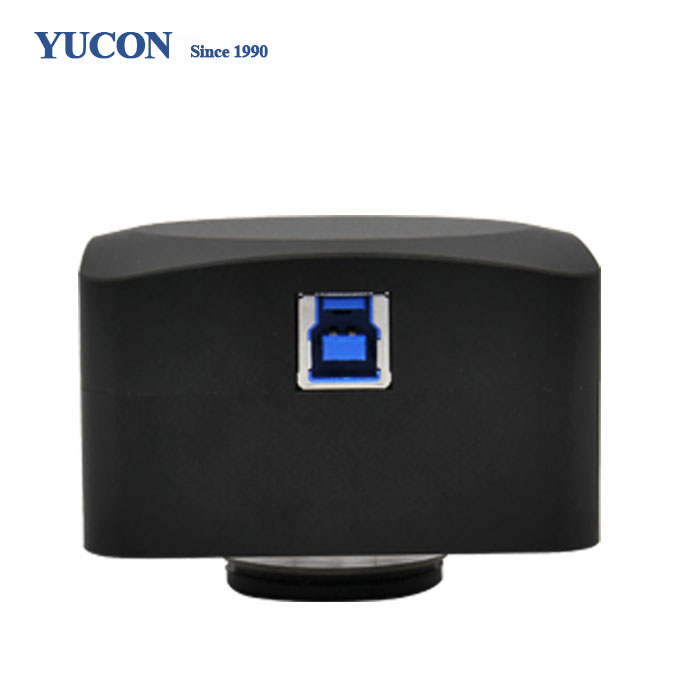

5. USB3.0 5Gbps interface ensuring high speed data transmission;
6. Ultra-Fine color engine with perfect color reproduction capability;
7. With advanced video & image processing application ToupView;
8. Windows/Linux/macOS/Android multiple platform SDK;
Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity | FPS/Resolution | Binning | Exposure |
YU3ISPM18000KPA | 18M/AR1820(C) | 1.25x1.25 | 0.62 V/lux-sec | 13.1@4912x3684" | 1x1, | 0.1ms~2s |
YU3ISPM16000KPA | 16M/MN34120(C) | 1.335x1.335 | R: 2453LSB | 16 @4648x3506 | 1x1, | 0.2ms~2s |
YU3ISPM16000KPB | 16M/MN34230(C) | 3.8x3.85 | R: 1315LSB | 22 @4648x3506 | 1x1, | 0.2ms~15s |
OTHER HARDWARE CONFIGURATION | |
Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
Color Rendering Technique | Ultra Fine Color Engine |
Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
Recording System | Still Picture and Movie |
Cooling System* | Natural |
OPERATING ENVIRONMENT | |
Operating Temperature | -10 °C~ 50 °C |
Storage Temperature | -20 °C~ 60 °C |
Operating Humidity | 30~80%RH |
Storage Humidity | 10~60%RH |
Power Supply | DC 5V over PC USB Port |
SOFTWARE ENVIRONMENT | |
Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) |
PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
Memory: 2GB or More | |
USB port: USB2.0 High-speed Port | |
Display: 17" or Larger | |
CD-ROM | |
Optional Accessory | |||
F | Adjustable | C-mount to Dia.23.2mm eyepiece tube | 108001/AMA037 |
C-Mount to Dia.31.75mm eyepiece tube | 108008/ATA037 | ||
G | Fixed | C-mount to Dia.23.2mm eyepiece tube | 108005/FMA037 |
C-mount to Dia.31.75mm eyepiece tube | 108011/FTA037 | ||
Note： For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application; | |||
H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | ||
I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | ||
J | 108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube | ||
K | Calibration Lit | 106011/TS-M1(X=0.01mm/100Div.)； | |
