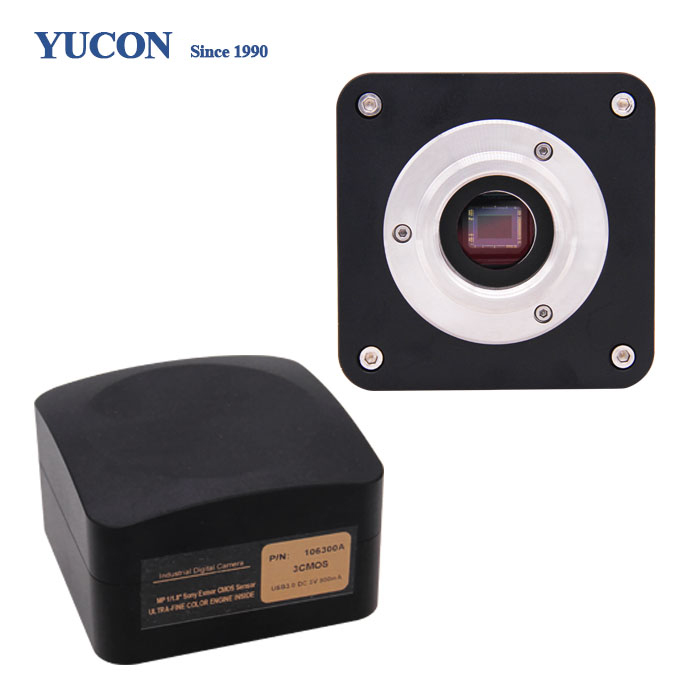

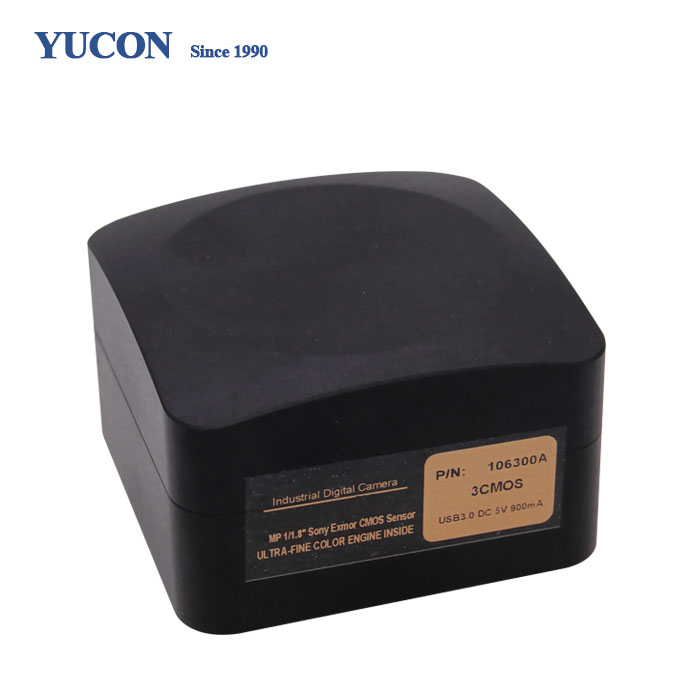

YE3CMOS Series C-mount USB3.0 CMOS Camera

Model:

YE3CMOS45000KMA

YE3CMOS20000KPA

YE3CMOS20000KMA

YE3CMOS20000KPB

YE3CMOS12300KMA

Accessories: Standard/Optional

For the suspended models , Customer can choose the corresponding YE3ISPM models for the fast speed and high performance.

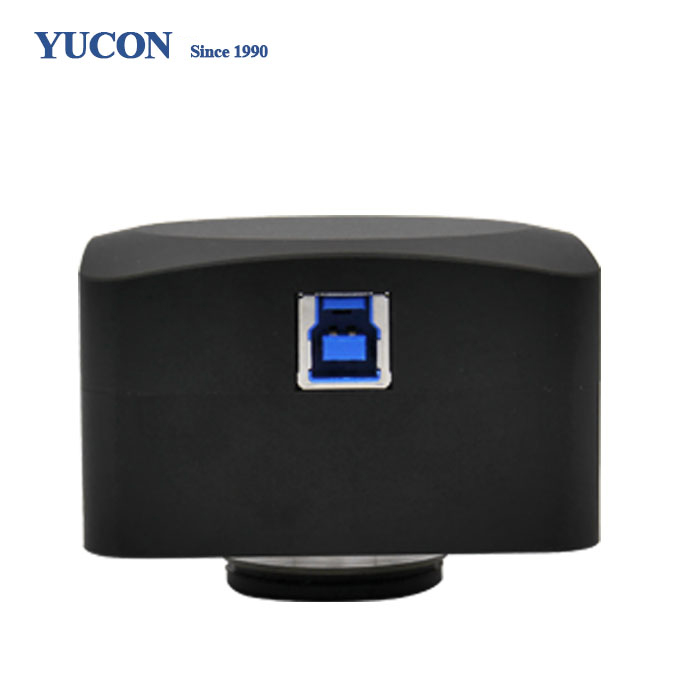

YE3CMOS camera adopt SONY Exmor CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.

YE3CMOS camera use the latest Sony Exmor sensor which have the highest sensitivity and lowest noise with the help of 2 CDS(correlated double sampling) procedure. This feature guarantee that the YE3CMOS camera is perfect for fluorescence microscope application, astronomy application and other dark field application, as well as the bright field application.

YE3CMOS camera’s resolutions range from 0.4M to 45M and come with the integrated CNC aluminum alloy compact housing.

YE3CMOS camera comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

YE3CMOS camera can be used to replace the traditional CCD camera to some extent since its unique features, including high sensitivity, low noise, and group shutter (only some sensor has group shutter). Thanks to USB3.0, the frame rate is fast and 8bit/12bit/14bit data transfer can be available and switchable.


1.  SONY Exmor Back-illuminated CMOS sensor with USB3.0 interface;

2.  Real-time 8/12/14/16bit depth switch(depending on sensor);

3.  Super high sensitivity up to 1120mV(IMX185);

4.  Ultra low noise and low power dissipation;

5.  With hardware resolution among 0.4M to 45M;

6.  With advanced video & image processing application ToupView;

7.  Windows/Linux/macOS/Android multiple platform SDK;


Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity
  Dark Signal

FPS/Resolution

Binning

Exposure

YE3CMOS45000KMA



45M/IMX492(M)
  4/3" (19.11x13.00)

2.32x2.32

702mv with 1/30s
  0.12mv with 1/30s

8@8256x5616
  31@4128x2808

1x1,
  2x2

0.1ms~15s

YE3CMOS20000KPA



20M/IMX183(C)
  1"(13.06x8.76)

2.4x2.4

462mv with 1/30s
  0.21mv with 1/30s

5.5 @5440x3648
  16 @2736x1824
  21 @1824x1216

1x1
  2x2
  3x3

0.1ms~15s

YE3CMOS20000KMA



20M/IMX183(M)
  1"(13.06x8.76)

2.4x2.4

776mv with 1/30s
  0.21mv with 1/30s

15.5 @5440x3648
  40 @ 4080x2160
  48 @2736x1824
  60 @1824x1216

1x1
  1x1
  2x2
  3x3

0.1ms~60s

YE3CMOS20000KPB



20M/IMX147(C)
  1/2.1"(6.24x4.67)

1.2x1.2

130mv with 1/30s
  0.1mv with 1/30s

5.2 @5440x3648
  15 @2736x1824
  30 @1824x1216

1x1
  2x2
  3x3

0.1ms~15s

YE3CMOS12300KMA



12.3M/IMX304(M)
  1/1.1"(14.13x10.35)

3.45x3.45

1146mv with 1/30s
  0.1mv with 1/30s

23.4@4096x3000
  46.3@2048x1500

1x1
  1x1

0.244ms~15s

YE3CMOS12000KPA



12M/IMX226(C)
  1/1.7"(7.40x5.55)

1.85x1.85

280mv with 1/30s
  0.1mv with 1/30s

7.1@4000x3000
  30@2048x1080

1x1
  2x2

0.1ms~2s

YE3CMOS06300KPA



6.3M/IMX178(C)
  1/1.8"(7.37x4.92)

2.4x2.4

425mv with 1/30s
  0.15mv with 1/30s

15@3072x2048
  26@1536x1024

1x1
  2x2

0.244ms~2s

YE3CMOS06300KMA



6.3M/IMX178(M)
  1/1.8"(7.37x4.92)

2.4x2.4

425mv with 1/30s
  0.15mv with 1/30s

15@3072x2048
  26@1536x1024

1x1
  2x2

0.244ms~2s

YE3CMOS05000KPA



5.0M/IMX264(C, GS)
  2/3” (8.45x7.07)

3.45x3.45

1146mv with 1/30s
  0.15mv with 1/30s

15@2448x2048
  60@1224x1024

1x1

0.1ms~60s

YE3CMOS05000KMA



5.0M/IMX264(M, GS)
  2/3” (8.45x7.07)

3.45x3.45

915mv with 1/30s
  0.15mv with 1/30s

15@2448x2048
  60@1224x1024

1x1
  2x2

0.1ms~60s

YE3CMOS03100KPA

3.1M/IMX036(C)
  1/2.8"(5.12x3.84)

2.5x2.5

200mv with 1/30s
  0.5mv with 1/30s

28@2048x1536
  28@1024x768

1x1
  2x2

0.244ms~2s

YE3CMOS03100KPB



3.1M/IMX123(C)
  1/2.8"(5.12x3.84)

2.5x2.5

600mv with 1/30s
  0.15mv with 1/30s

25@2048x1536
  30@1024x768

1x1

0.244ms~2s

YE3CMOS03100KMC



3.1M/IMX265(M,GS)
  1/1.8"(7.07x5.30)

3.45x3.45

1146mv with 1/30s
  0.15mv with 1/30s

53@2048x1536
  85@1024x768

1x1
  2x2

0.1ms~15s

YE3CMOS02300KPA



2.3M/IMX185(C)
  1/1.9"(7.20x4.50)

3.75x3.75

1120mv with 1/30s
  0.5mv with 1/30s

38@1920x1200
  66@960x600

1x1
  2x2

0.244ms~2s

YE3CMOS02300KPB



2.3M/IMX249(C,GS )
  1/1.2“ (11.25x7.03)

5.86x5.86

1016mv with 1/30s
  0.15mv with 1/30s

30@1920x1200

1x1

0.244ms~2s

YE3CMOS02300KMC



2.3M/IMX174(M, GS)
  1/1.2” (11.25x7.03)

5.86x5.86

1016mv with 1/30s
  0.15mv with 1/30s

120@1920x1200

1x1

0.244ms~2s

YE3CMOS01500KMA



1.5M/IMX273(M, GS)
  1/2.9” (4.968x3.726)

3.45x3.45

1830mv with 1/30s
  0.15mv with 1/30s

228 @1440x1080
  530 @720x540

1x1
  2x2

0.244ms~60s

YE3CMOS01200KPA



1.2M/IMX224(C, GS)
  1/3” (4.80 x 3.60)

3.75x3.75

2040mv with 1/30s
  0.15mv with 1/30s

60 @1280x960
  120 @640x480

1x1
  2x2

0.105ms~15s

YE3CMOS000400KPA



0.4M/IMX287(C)
  1/3” (4.97 x 3.73)

6.90x6.90

4584mv with 1/30s
  0.15mv with 1/30s

520 @ 720x540

1x1

0.244ms~15s

YE3CMOS00400KMA



0.4M/IMX287(M)
  1/3” (4.94 x 3.73)

6.90x6.90

7469mv with 1/30s
  0.15mv with 1/30s

520 @ 720x540

1x1

0.244ms~15s

OTHER HARDWARE   CONFIGURATION

Spectral Range

380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used

White Balance

ROI White Balance/ Manual Temp-Tint Adjustment

Color Rendering   Technique

Ultra Fine Color Engine

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

Recording System

Still Picture and Movie

Cooling System*

Natural

OPERATING ENVIRONMENT

Operating Temperature

-10 °C~ 50 °C

Storage Temperature

-20 °C~ 60 °C

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

SOFTWARE ENVIRONMENT

Operating System

Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
  OS X (Mac OS X), Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 2GB or More

USB port: USB2.0 High-speed Port

Display: 17" or Larger

CD-ROM


Optional Accessory

F

Adjustable
  lens
  adapter

C-mount   to Dia.23.2mm eyepiece tube
  (Please choose 1 of them for your microscope)

108001/AMA037
  108002/AMA050
  108003/AMA075

C-Mount   to Dia.31.75mm eyepiece tube
  (Please choose 1 of them for your telescope)

108008/ATA037
  108009/ATA050
  108010/ATA075

G

Fixed
  lens adaptor

C-mount   to Dia.23.2mm eyepiece tube
  (Please choose 1 of them for your microscope)

108005/FMA037
  108006/FMA050
  108007/FMA075

C-mount   to Dia.31.75mm eyepiece tube
  (Please choose 1 of them for your telescope)

108011/FTA037
  108012/FTA050
  108013/FTA075

Note： For F and G optional   items, please specify your camera type(C-mount, microscope camera or telescope   camera), ToupTek engineer will help you to determine the right microscope or   telescope camera adapter for your application;

H

108015(Dia.23.2mm   to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm   to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm   to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

K

Calibration   Lit

106011/TS-M1(X=0.01mm/100Div.)；
  106012/TS-M2(X,Y=0.01mm/100Div.);
  106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
