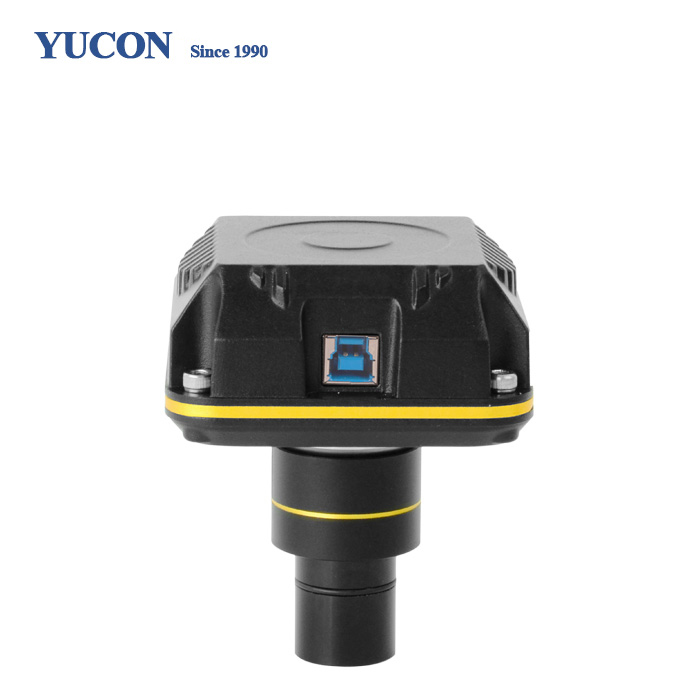

YL3CMOS camera is luxurious USB3.0 CMOS camera with frame buffers and it adopts ultra-high performance CMOS sensor as the image-picking device,and USB3.0 is used as the data transfer interface.

YL3CMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

The YL3CMOS can be widely used in brightfield light environment and microscope image capture and anaysis.

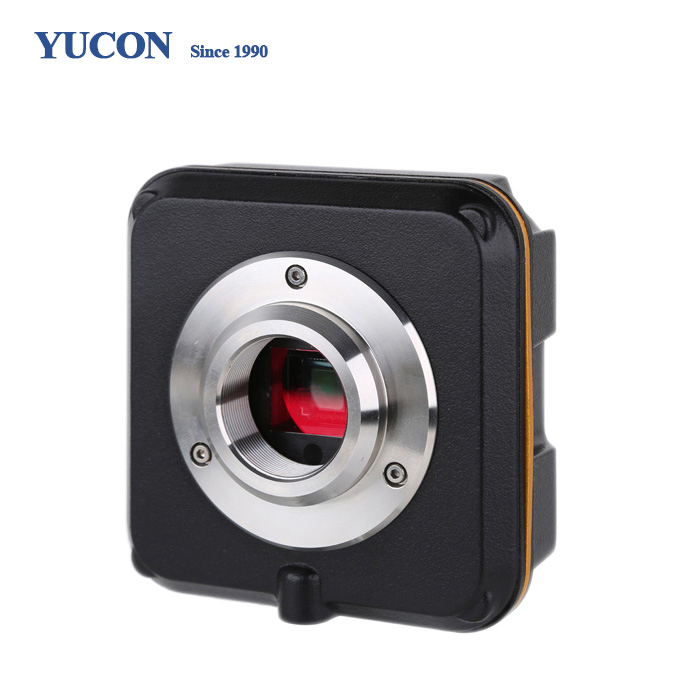

1. Standard C-Mount camera with Aptina CMOS sensor;

2. With hardware resolution among 1.2M to 14M;

3. On-board memory for perfect synchronization，higher frame rate and stable performance;

4. High performance cooling structure, ensures low image noise;

5. USB3.0 5 Gbps interface ensuring high frame rate;

6. Ultra-Fine color engine with perfect color reproduction capability;

7. With advanced video & image processing application ToupView;

8. Windows/Linux/macOS/Android multiple platform SDK;

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
YL3CMOS14000KPA	14M/MT9F002(C) 1/2.3" (5.73x4.60)	1.4x1.4	0.724v/lux-sec 65.3dB 35.5dB	6.2@4096x3286 20.8@2048x1644 53.3@1024x822	1x1, 2x2, 4x4	0.1ms~2000ms
YL3CMOS10000KPA	10M/MT9J003(C) 1/2.3" (5.98x4.58)	1.67x1.67;	0.31v/lux-sec 65.2dB 34dB	7.2@3584x2746 24.5@1792x1372	1x1, 2x2, 4x4	0.1ms~2000ms
YL3CMOS05100KPA	5.1M/MT9P006(C) 1/2.5" (5.63x4.23)	2.2x2.2	1.76v/lux-sec 67.7dB 38.5dB	14.2@2560x1922 38.3@1280x960 101.2@640x480	1x1, 2x2, 4x4	0.05ms~2000ms
YL3CMOS03100KPA	3.1M/AR0330(C) 1/3" (4.51x3.37)	2.2x2.2	1.9v/lux-sec 100dB 39dB;	27.3@2048x1534 53.3@1024x770	1x1, 2x2	0.1ms~2000ms
YL3CMOS01200KPB	1.2M/AR0130(C)1/3"(4.8x3.6)	3.75x3.75	5.5v/lux-sec 85.3dB 44dB	45@1280x960 55@640x480	1x1, 2x2	0.1ms~20000ms

OTHER HARDWARE CONFIGURATION
Spectral Range	380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control SDK	Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10 °C~ 50 °C
Storage Temperature	-20 °C~ 60 °C
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17" or Larger
	CD-ROM

Optional Accessory
F	Adjustable lens adapter	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108001/AMA037 108002/AMA050 108003/AMA075
		C-Mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108008/ATA037 108009/ATA050 108010/ATA075
G	Fixed lens adaptor	C-mount to Dia.23.2mm eyepiece tube (Please choose 1 of them for your microscope)	108005/FMA037 108006/FMA050 108007/FMA075
		C-mount to Dia.31.75mm eyepiece tube (Please choose 1 of them for your telescope)	108011/FTA037 108012/FTA050 108013/FTA075
	Note： For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;
H	108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
I	108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
J	108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube
K	Calibration Lit	106011/TS-M1(X=0.01mm/100Div.)； 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
