Model: YCTY-M-1
Product Description

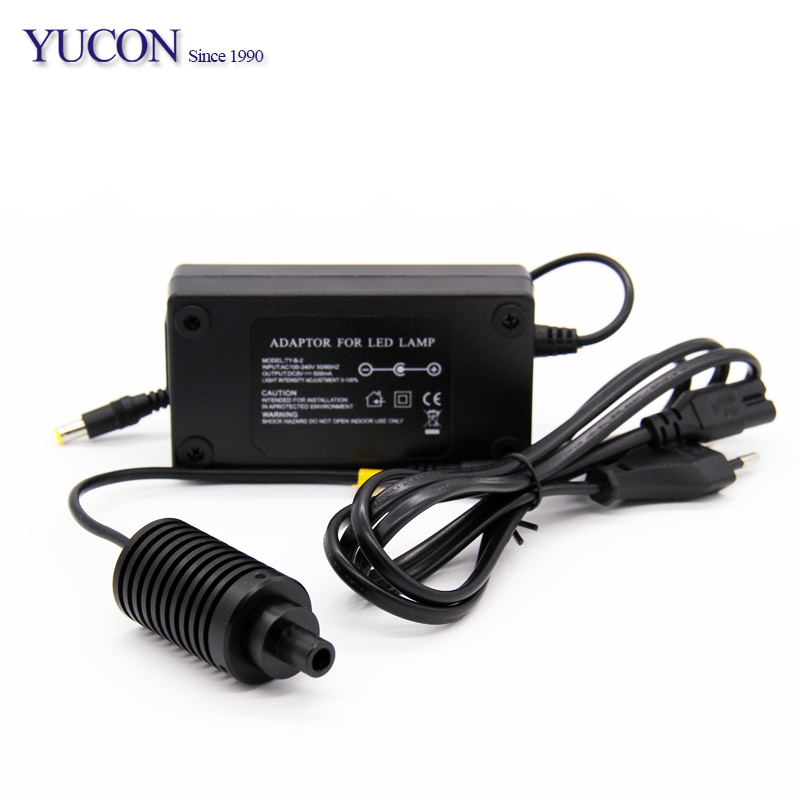

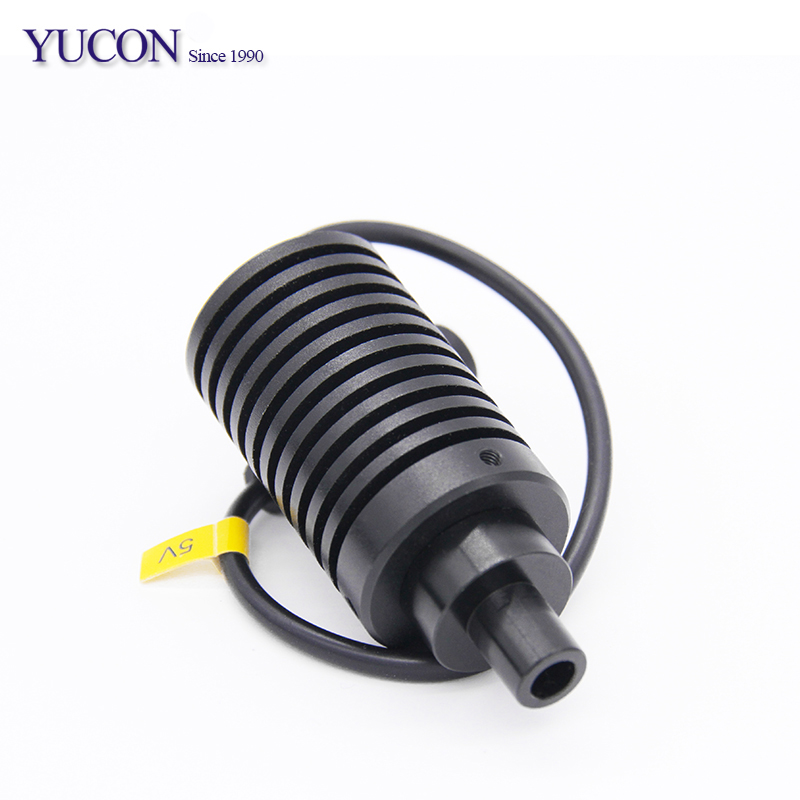

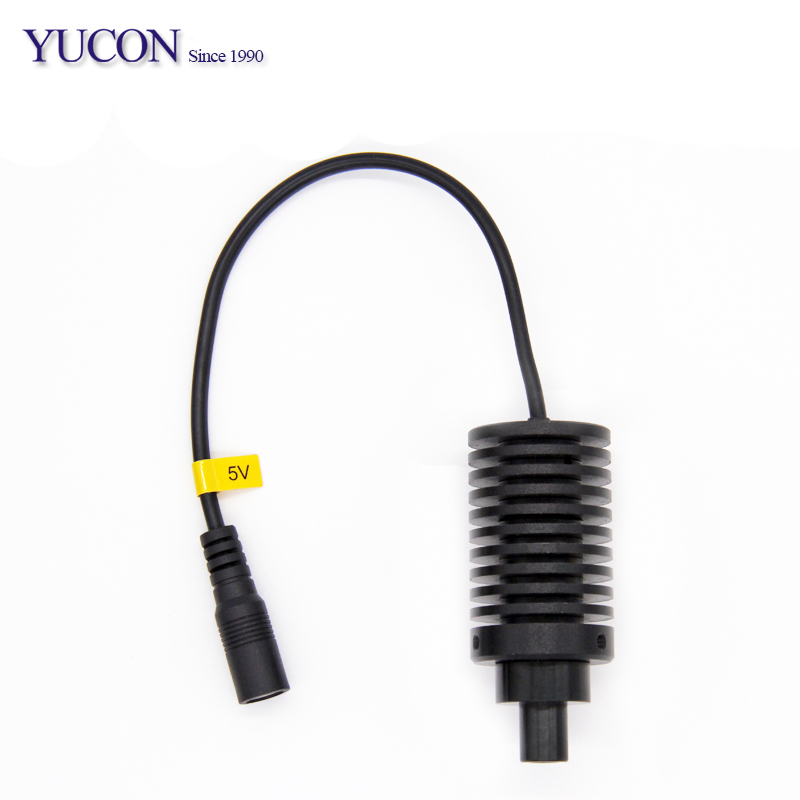

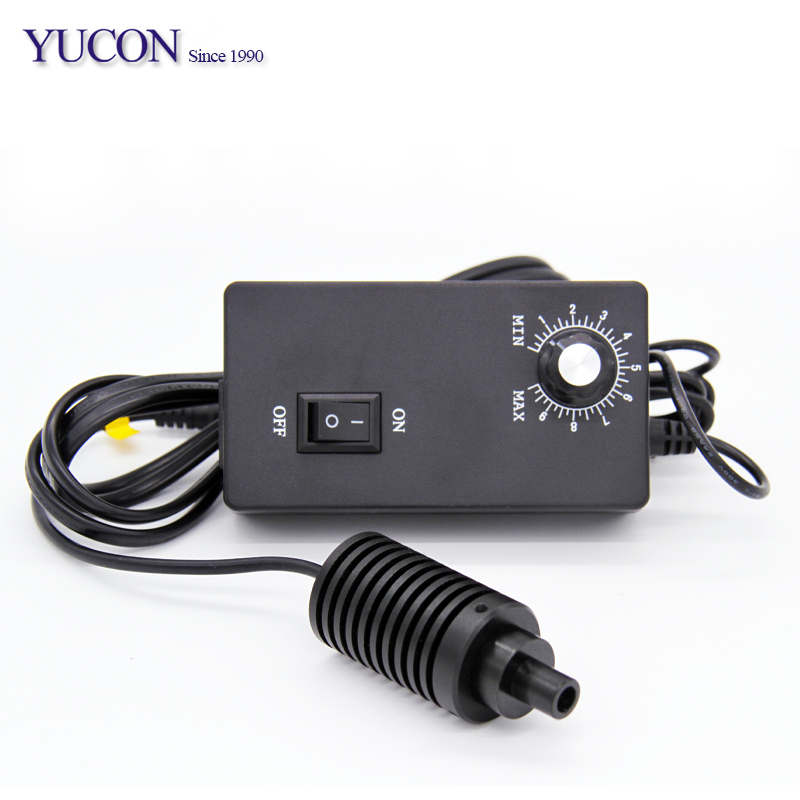

YCTY-M-1 LED lamp is not only the achievements of new century lighting technology, but also the upgrading of circular energy-saving lamps.
It completely solves the shortages of the ring energy-saving lamps.
At present, the superiority of LED shadowless lamp is gradually understood and accepted to use with microscopes. It reduces the cost and doesn’t need to flequently repalce.
YCTY-M-1 LED lamp can be used alone in a machine vision system with 8mm/9mm top diameter 6mm luminance surface diameter.
Besides,it also can be used for microscopes and telecentric lens with coaxial function.
Main Specification:
Model | YCTY-M-1 |
Theory | Microscope Coaxial LED Lamp |
Light source | Light-emitting Diode (LED) |
LED Color Temperature | 3000K-6000 |
Working Distance | 20-60mm |
Input Voltage | AC90V-240V |
Output Voltage | DC3.5V 5V(Optional)
|
Maximum Illuminance | 240Llux |
Brightness Adjustment Range | 0-100% |
Light Color | White/Warm White |
LED | 1pcs |
Size |
140mm*106mm*70mm |
Lamp lifetime | >30000HRS |
Effective Light Distance | 15mm |
Effective Light Path | 10mm |
Box Material | Plastic |
Box Size | 110mm*60mm*30mm |
Shell Color | Black |
Product Shape | Fission |
Lamp Holder Material | Aluminum Alloy |
Lamp Holder Diameter | 6mm/8mm/9mm/10mm/11mm/12mm/13mm/Special |
