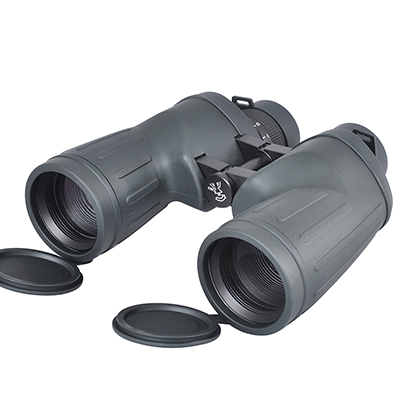

7X50 Outdoor Binocular Monitor Telescope

Model: YCM98-0750

Specification: 7x50


          Type 98 binocular telescope is a binocular observer, which is used to observe, search and monitor long-distance objects and targets in the daytime, and can roughly measure the direction angle, height angle and distance of the targets by using the dividing board in the mirror The type 98 telescope fully meets the requirements of the American military standard (mil-std-810) and can be used all day. It adopts comprehensive and precise multi-layer coating, with a transmittance of 82.3%, and a clear image, which makes the type 98 telescope significantly better than similar telescopes at home and abroad in terms of observation brightness, image quality and the authenticity of object color. The 32mm eyepiece has the excellent performance of wide field of vision, comfort, large exit pupil diameter and long exit pupil distance



          The 98 telescope can also observe the target clearly and comfortably in low illumination environments such as dusk and dawn and wearing gas masks (or glasses). It is protected by high-purity nitrogen, professional waterproof, high sealing performance, and can withstand 35kpa overpressure internally, and can be immersed in water 1.5 m deep And it can well meet the needs of all-weather operations The operating temperature range is - 43 ℃ ~ 55 ℃, and the 98 telescope can well meet the needs of different geographical locations It adopts all metal structure, which is firm and durable; Rubber armor, shock absorption and anti-skid design, with strong ability to withstand bumps and vibrations, can withstand the impact of more than 20 gravitational accelerations, and is fully adapted to the field environment The product is equipped with advanced curve division, which can directly roughly measure the distance and orientation of the target. The modular design makes it have good general maintenance performance


Specifications

7X50

Magnification

7X

Pupil diameter

φ50 ㎜

Exit pupil diameter

 φ7.1 ㎜

Exit pupil distance

23 ㎜

Visual field

7.5°(132m/1000m)

Minimum Focus Distance

 12.5m

Relative brightness

 50.4

Dusk index

22.8

Resolution

≤4.5″

Prism category

Paul

Lens groups

4 groups of 7 pieces

Focus system

Split mode

Focusing lens

Eyepiece

Left and right visibility adjustment range

 >-5~+5SD

Eye distance adjustment range

56~74 ㎜

Eye mask type

Flip down

Body material

Magnesium alloy

Waterproof structure

1.5m water depth 30min

Nitrogen filling

Yes

Single net weight / gross weight (kg)

 1.6/2.3

Working temperature

-43℃~+55℃
