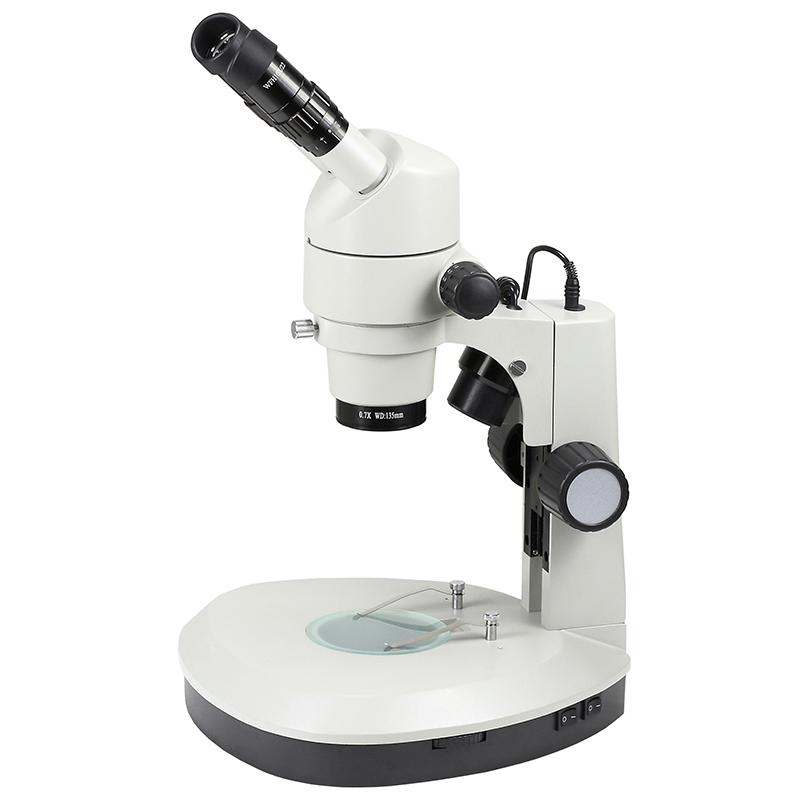

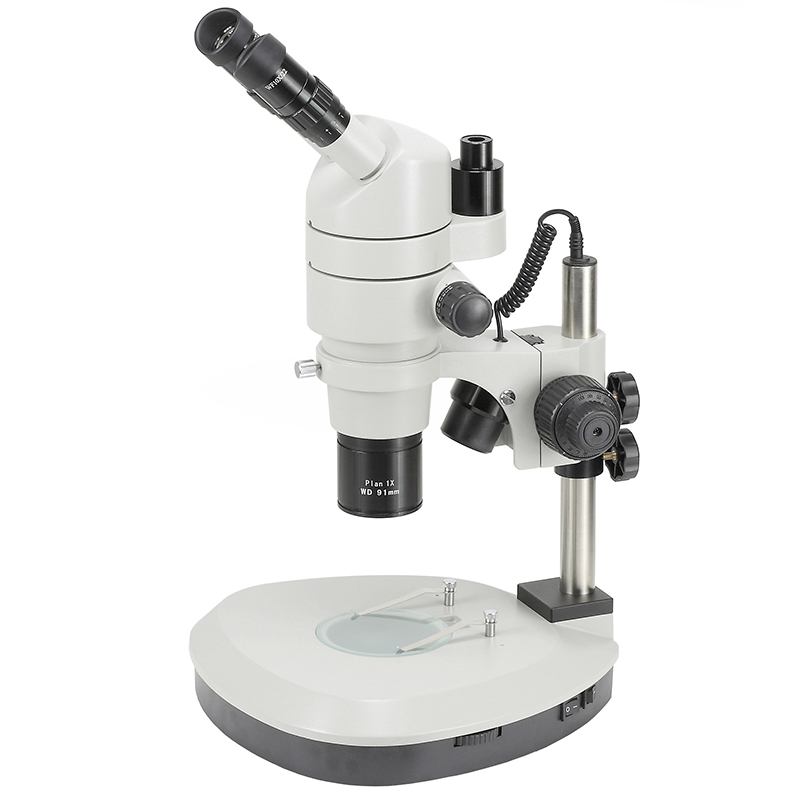

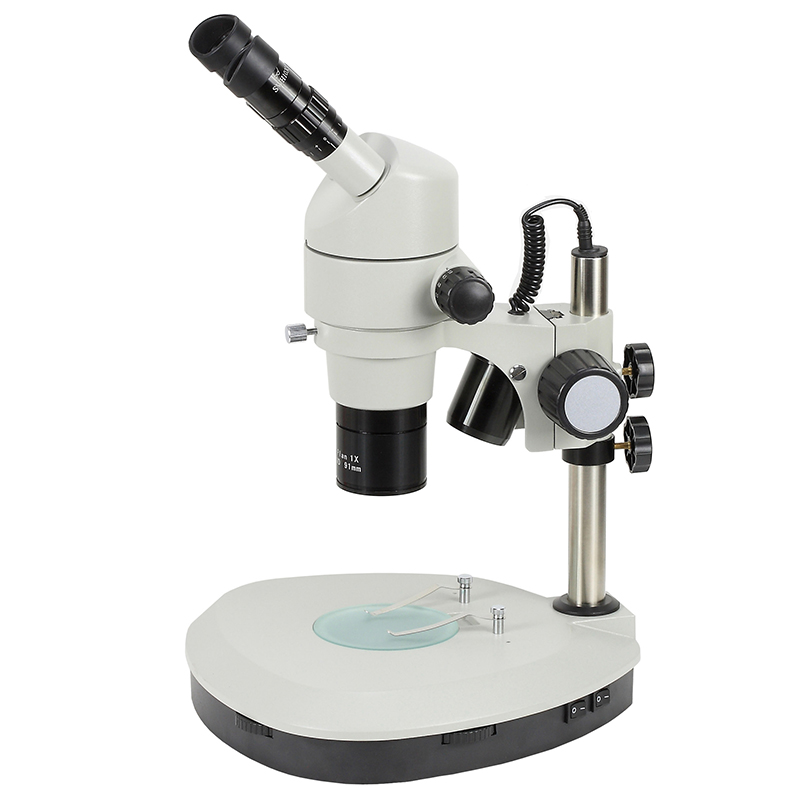

ZPS0880 Series Parallel Optics Continuous Zoom Stereo Microscope

Model: ZPS0880/ZS0880T(Trinocular)

Accessories: Standard/Optional

ZPS0880 series parallel optics continuous zoom stereo microscope, adopt advanced parallel optical path system design,building block structure,access photography, image etc, functions accessories in the light path,Can also be connected to a digital camera, convenience for take picture.Using advanced parallel optical path imaging technology,improve field of view sharpness,strong stereo sense, non-flash full zoom from high to low magnification, large depth of field, long working distance. Up and down light source suitable for different observation objects. Meet the needs of modern public security, professional colleges, metal trace inspection, laboratory research.


With big zoom ratio 10:1, non-flash in focus course while from low to high magnification

Excellent parallel optical path system for best resolution and true color images

Total magnification extend to 4X-360X

Large depth of field, PHW field eyepiece

Working distance 91mm, maximum working distance extend to 186mm

The range of adjusting the diopter is ±6°, can meet the needs of different users

ZS0880T series can be connected with CCD (CMOS) camera, digital camera, film camera

Front video shooting switch knob, convenience for use

Can be set with various bases and universal stands, LED ring lightRing fluorescent lamp, optical fiber, auxiliary lens etc, variety of accessories




Technical specifications:

Way of zoom

Parallel optics  system,0.8x-8x continuous zoom microscope

Total magnification

Standard total magnification  8x-80x, can be extend to 360x

Zoom ratio

10:1

PHW field eyepieces

SWH10X/Φ22mm

Eye tubes

Inclined 45°

Trinocular

Rotated 360°

Objective

1X

Working distance

91mm

Diopter adjustment   range

±6 diopter

Interpupillary distance adjustment range

52mm76mm

The range of adjusting the focus

50mmcolumn holder 100mm

Base size

283X292X28mm

CCD adapter

0.5X, adjust

Photo adapter

3.5X

Illuminators

LED upper light  source3W,adjust)LED lower light  source3W,adjust



Technical parameters

Eyepiece

Item

Different auxiliary objective lens specification

0.5X

0.7X

1X

1.5X

Auxiliary

10X

Total Mag.

4X~40X

5.6X~56X

8X~80X

12X~120X

Field Diamm

Φ55~Φ5.5

Φ39.3~Φ3.93

Φ27.5~Φ2.75

Φ18.33~Φ1.83

15X

Total Mag.

6X~60X

8.4X~84X

12X~120X

18X~180X

Field Diamm

Φ42.5~Φ4.25

Φ30.36~Φ3.04

Φ21.25~Φ2.13

Φ14.17~Φ1.42

20X

Total Mag.

8X~80X

11.2X~112X

16X~160X

24X~240X

Field Diamm

Φ35~Φ3.5

Φ25~Φ2.5

Φ17.5~Φ1.75

Φ11.67~Φ1.17

30X

Total Mag.

12X~120X

16.8X~168X

24X~240X

36X~360X

Field Diamm

Φ22.5~Φ2.25

Φ16.1~Φ1.61

Φ11.25~Φ1.13

Φ7.5~Φ0.75

Working distancemm

186

135

91

40

Note:

1. Please use 1X plane objective & 1.5X auxiliary objective together when using 1.5X.

2. When use under 0.5X auxiliary lens, cannot use square column base



Optional attachments

Stands: SD1~SD18

Universal stands: U1U2U3, U1c, U2c, U3c

Eyepiece: SWH10X, WF15X, WF20X, WF30X

Division eyepieces: SWHD10XWFD15XWFD20X

Supplemental lens: 0.5X0.7X1.5X2X

Auxiliary illuminatiors: ML01MLR60LGY-150R

Photo adapter: PT01

Digital adapter: DT01
