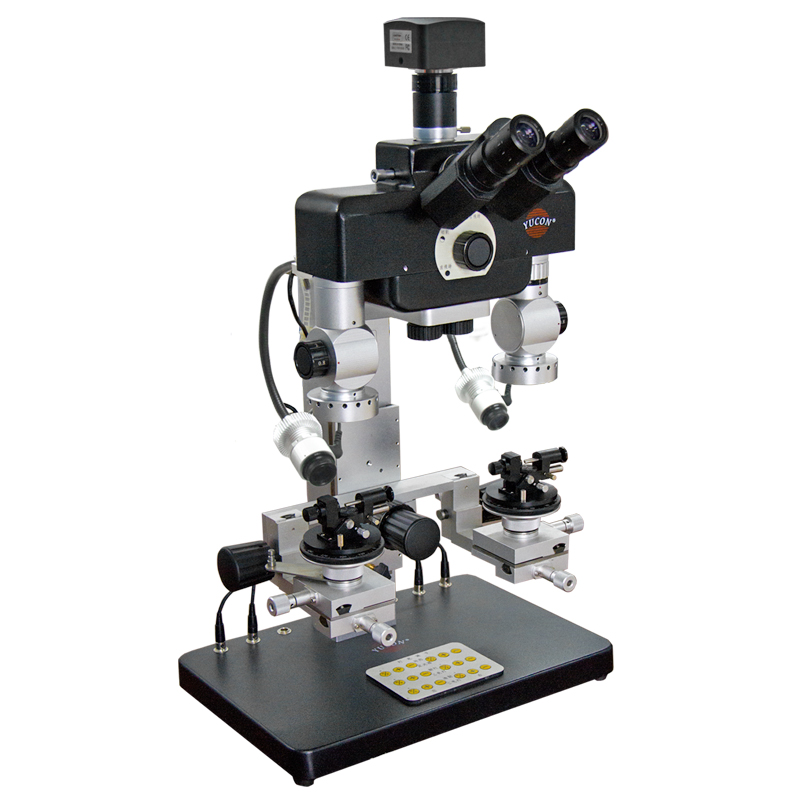

The CM-100 series parallel light path comparison microscope series adopts Galileo optical system, with no difference in light path. The two parallel beams can greatly improve the visibility of images and achieve high resolution with superior flatness. The product simultaneously observes the images of the objects in the left and right optical systems through two large field eyepieces, so that the physical evidence can be compared macroscopically and microscopically through docking, overlapping, and single-sided observation to identify their existence in form or material. The slight differences and similarities can be used to identify the correlation and authenticity of physical evidence. It is mainly used for bullet trace comparison, thread trace comparison, tool trace comparison, seals, coins, characters, etc. The product is not only an ideal instrument for public security, procuratorate, court and other departments for criminal investigation material evidence, document identification and training and teaching, but also suitable for all departments, laboratories and research institutions that need to compare and identify objects.

1. Advanced optical system and design process, no difference in parallel light path, which can greatly improve the imaging resolution.

2. Sturdy mechanical structure design, triangular guide rail technology, anti-destructive movement, tensile strength, corrosion resistance, rust resistance. The mechanical movement is smooth and stable, and the building block structure makes it easy to upgrade.

3. Drum zoom objective lens system, the zoom positioning is accurate and stable, and the objective lens magnifications on both sides are consistent.

4. The circular stage of the stage has adjustable bevel angle, 360° rotation, 25° bevel angle and 360° free rotation, to meet the needs of different imaging angles of objects; and it is   equipped with various types of warhead plugs, special wire end clips, and bullet supporters. The large knob design of the stage makes the movement smooth and comfortable, and it is easy to use.

5. The scientific lighting system design makes the traces appear. Concentrating light guide reflector adopts high-quality LED lamp, independent gear heat sink design, imported elbow, long life, reducing noise and highlighting traces. The ring light observes flat objects, supplements the light, and reduces the shadow surface; it can clearly observe the inner bottom of the cartridge case.
